General Temperature and Pressure Applications

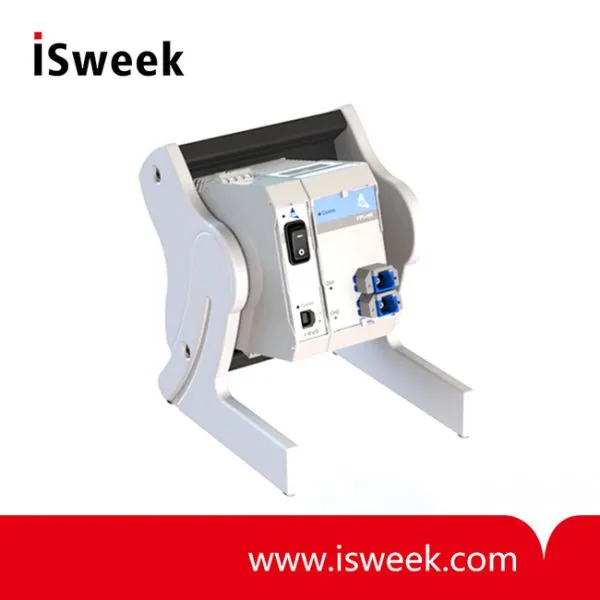

This "signal conditioning" module is both the light source and receiver of the fiber optic measurement system. The FPI-HR or FPI-HS convert the optical signal to a pressure reading and requires no external amplification box. The researcher may plug the catheter’s optical connector directly into the module or may use an (optional) extension cable with accompanying connection box.
FPI-HR:
Single channel (250Hz)
Dual channel (125Hz)
FPI-HR High Resolution Signal Conditioner Application Products
• FOT-L Temperature sensor
• FOP-M Pressure sensor
• FPI-HR module
• EVOLUTION chassis
FPI-HR High Resolution Signal Conditioner Key Features
• High accuracy
• Up to 250 Hz sampling rate
• Temperature-compensated modules
FPI-HR High Resolution Signal Conditioner Specifications
|
Temperature – FOT-L |
Pressure – FOP-M |
|
| Measuring range |
-10°C to 120°C |
R1: 0 to 5 psi / R2: 0 to 50 psi R3: 0 to 150 psi / R4: 0 to 1000 psi |
| Temperature operating range |
SD: -40°C to 300°C BA: -40°C to 250°C |
-20°C to 150°C |
| Response time1 |
– |
|
| Accuracy2 |
R4: ±0.25°C / R5: ±0.40°C |
±0.5% of full scale |
| Resolution |
0.01°C |
0.05% of full scale |
| Sampling rate |
Up to 250 Hz per module |
Up to 250 Hz per module |
| Power consumption |
5 Watts |
5 Watts |
| Analog output (Optional) |
0 to 5V or 4-20 mA / 16 bits resolution |
0 to 5V or 4–20 mA / 16 bits resolution |
| Operating temperature |
10°C to 50°C |
10°C to 50°C |
| Storage temperature |
-30°C to 80°C | -30°C to 80°C |
| Connector |
SCAI3, SCA (ST optional) |
SCAI3, SCA (ST optional) |
| Fiber core size |
62.5/125μm (50/125μm optional) |
62.5/125μm (50/125μm optional) |
| Number of channel(s) |
1 or 2 |
1 or 2 |
| Communication / Evolution chassis |
USB via EVO chassis / TS 35 DIN RAIL |
USB via EVO chassis / TS 35 DIN RAIL |
| Communication/OEM |
RS-232 / RS-485 |
RS-232 / RS-485 |
| LED sensor signal and communication diagnostic |
Yes |
Yes |
1. Time required to reach 63% of a temperature step.
2. Includes reproducibility (sensor/module exchange), repeatability and hysteresis, non-linearity, scale error, offset error, conditioner temperature compensation error.
Temperature:
Accuracy of ±0.25°C can be achieved using the 25°C to 45°C calibration.
Accuracy of ±0.40°C can be achieved using the -10°C to 120°C calibration.
Pressure:
Accuracy at room temperature.
3. SCAI is an SCA connector with smart chip communicating calibration data to signal conditioner module.
