Cnc wholesale, low price machine center cnc
WELCOME TO KAIBOCNC: www.kaibocnc.en.china.cn
Features:
1. Our Operating System is Syntec or as your request
2. It is mainly designed for matal engraving, brass,iron,Aluminum,steel or other metal material.
3. Can do any mould
KAIBO CNC SPECIFICATION | |||
Product name |

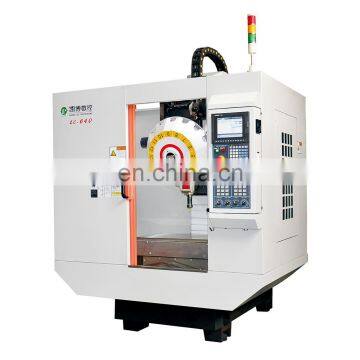

High Rigidity High Stability Drilling and Tapping CNC Machine Center |
||
Model |
Terms |
ZC-540 |
|
|
Capacity |
X-axis Travel |
mm |
500 |
y-axis Travel |
mm |
400 |
|
Z-axis Travel |
mm |
300 |
|
Spindle nose to table surface |
mm |
140-440 |
|
Table T slot size (No. - width) |
mm |
3-18 |
|

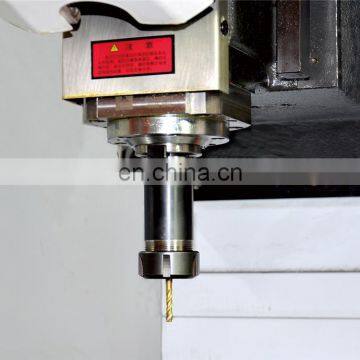

Spindle |
Spindle Speed |
rpm |
12000 |
|

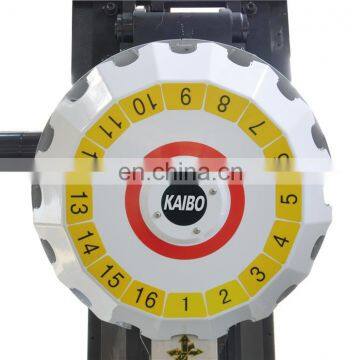

A.T.C
|
Tool storage capacity |
PCS |
14-18 |
Max.tool diameter(adjacent tools) |
mm |
60 |
|
Max tool length |
mm |
150 |
|
Max tool weight |
kg |
3 |
|
Tool change time(T-T) |
sec |
1.3 |
|
Tool Spic. |
|
BT-30 |
|
Motor |
Spindle power(30-minute stop-motion) |
kw |
3.7/5.5 |
X/Y/Z-axis motor power |
kw |
1.5/1.5/3.0 |
|
Worktable |
Table size |
mm |
600X400 |
Worktable-Loading |
kg |
250 |
|
Fast Rapid |
X-axis fast rapid |
m/min |
48 |
Y-axis fast rapid |
m/min |
48 |
|
Z-axis fast rapid |
m/min |
48 |
|
Cutting feed rate |
Mm/min |
1-20000 |
|
Accuracy |
Positioning accuracy |
mm |
+0.005/300 |
Repeatability positioning accuracy |
mm |
+0.003 |
|

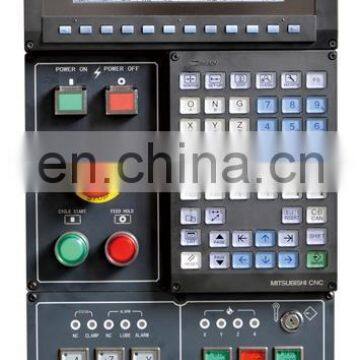

Controller |
Mitsubishi(Standard) |
|
M70V |
Machine size |
Weight |
kg |
2000 |
Power demand |
KVA |
12 |
|
Overall Size |
mm |
2070X1850X2500 |
|
Tank capacity |
L |
150 |
|
Compressed air |
Kg/m2 |
6 |
|
Packed In Wooden Case, Standard packing For CNC Machine Center
Customer Service
v Kaibo guarantees continuous and ongoing technical support for all of our products, and an technical enquiry of our machines can be replied within 24 hours.
v The warranty period of Kaibo's machine tools is 12 months from the date of completion of installation and comissioning.
After-sales Service
v Technician available for training and installation at customer's company.
v Internet service by sending emails and Videos,communicating online or calling. English Software.
1. Which CNC Machine is suitable for me?
Please kindly inform us the material type and size you need to progress,then we can offer a more suitable cnc machine for you.
2. Which material is applicable?
Such as steel,aluminium alloys,metal, etc.
3. Does your company accept customized offer, we have special need?
KAIBO is a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong CNC Machine research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.
1. With over 21 years manufacturing experience of CNC Machines, Over 50 Core Engineers are growing up with factory over 20years.
2. Each Machine is strictly in accordance with ISO and CE. KAIBOCNC has been named China famous brand, designated as the national standard setter by GB.
3. Quality Assurance, Timely delivery, Quick Service. Each year produce over 2000pcs,360 staffs,26 after-service teams.
