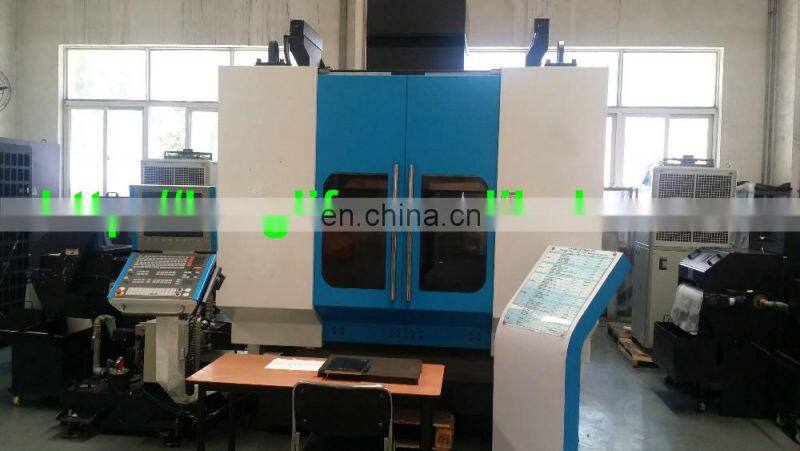

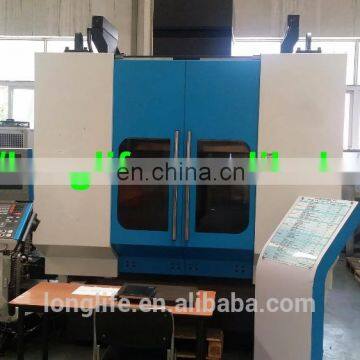

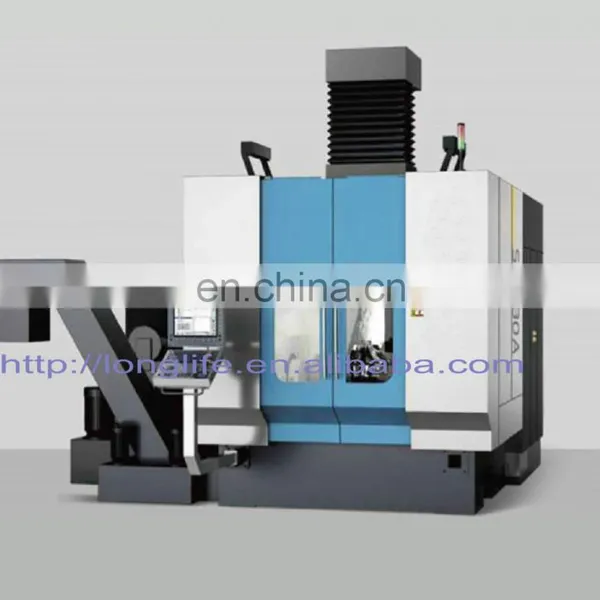

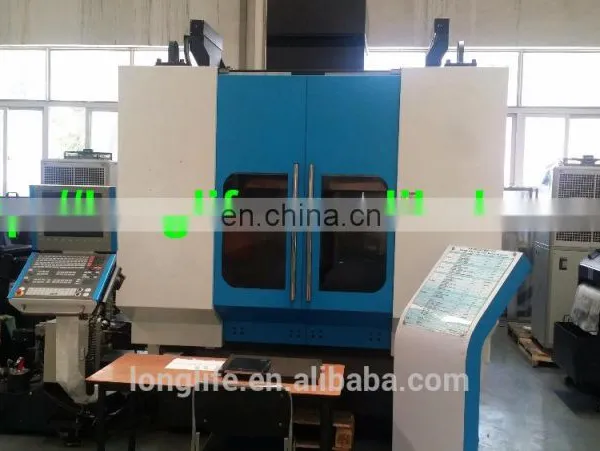

SVW120 5 axis simutaneous cnc vertical machining center:
High precision Germany electro-spindle is used, central water cooling, blowing on tool shank taper hole, to realize big torque, high-speed rotating and suitable for general and fine machining.
IDAM Germany torque motor and special-purpose bearings are used on NC rotary table, with the features of high indexing accuracy, heavy load capacity, high overturning resistance.
NSK Japan high precision ball screws, Schneeberger Germany high rigid linear guides, Siemens Germany high precision servo motors and high-class HEIDENHAIN iTNC530 CNC system and HEIDENHAIN grading scales and encoders are used, so as to realize the X,Y,Z,A,C axes full-closed loop control to achieve the 5-axis simultaneous machining.
Items unit |
SVW120 |
|
Table dia. |
mm |
ø 1200 |
Max. workpiece dia. |
mm |
ø 1400 |
Max. workpiece weight |
kg |
3000 |
Spindle speed |
rpm |
10000 |
Spindle motor |
KW |
35/43 |
torque |
Nm |
200/250 |
Taper size |
- |
SK50 |
X/Y/Z rapid speed |
m/min |
60/48/48 |
X/Y/Z working speed |
mm/min |
20~10000 |
A-axis speed |
rpm |
25 |
C-axis speed |
rpm |
80 |
X/Y/Z-axis travel |
mm |
1200/1300/800 |
A-axis rotary range |
° |
±125 |
C-axis rotary range |
° |
n×360 |
X/Y/Z-axis positioning accuracy |
µm |
8 |
X/Y/Z-axis repeated positioning accuracy |
µm |
5 |
B/C-axis positioning accuracy |
’’ |
8 |
B/C-axis repeated positioning accuracy |
’’ |
5 |
Tool magazine |
pieces |
30 |
Max. tool length |
mm |
350 |
Max. tool dia. |
mm |
ø 125 |
Max. tool dia. |
mm |
ø 250 |
Max. tool weight |
kg |
25 |
CNC system |
|
Heidenhain iTNC530/Siemens 840Dsl |
Machine weight |
T |
20 |
S.N |
Item |
Maker |
Quantity |
1 |
CNC system- iTNC530 |
HEIDENHAIN Germany |
1 |
2 |
Electrical elements |
HEIDENHAIN Germany |
1 |
3 |
Servo motors |
Siemens Germany |
4 |
4 |
Electric-motor |
INNA Germany |
1 |
5 |
Bearings |
NSK Japan |
N |
6 |
Torque motor for A/C rotary table |
IDAM Germany |
2 |
7 |
Ball screws |
NSK Japan |
4 |
8 |
Linear guides |
Schneeberger Germany |
8 |
9 |
Grating scale and encoders |
HEIDENHAIN Germany |
6 |
10 |
Hydraulic system |
HAWE Germany |
1 |
11 |
Pneumatic system |
Rexroth Germany |
1 |
12 |
Tool magazine |
Taiwan |
1 |
13 |
Automatic workpiece measurement |
HEIDENHAIN Germany |
1 |
14 |
Chains |
Top maker in China |
1 |
15 |
chip removal |
Top maker in China |
1 |
16 |
Emulsion paper filter |
Top maker in China |
1 |
17 |
Water-cooling device |
Top maker in China |
1 |
18 |
Air-conditioner for Electrical cabinet |
Top maker in China |
1 |
19 |
Lubrication system |
Top maker in China |
1 |
Pls send inquiry to me for optioanl accessories and other further information about such 5 axis cnc vertical machining centers.
