TD Series Drilling and Tapping Machining Center

TD Series Drilling and Tapping Machining Center thumbnail-1
TD Series Drilling and Tapping Machining Center thumbnail-2
TD Series Drilling and Tapping Machining Center photo-1

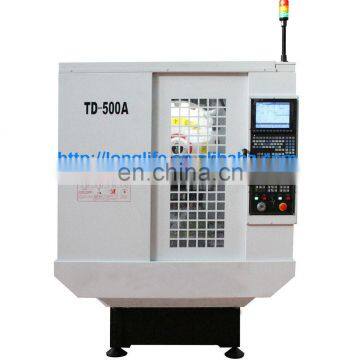

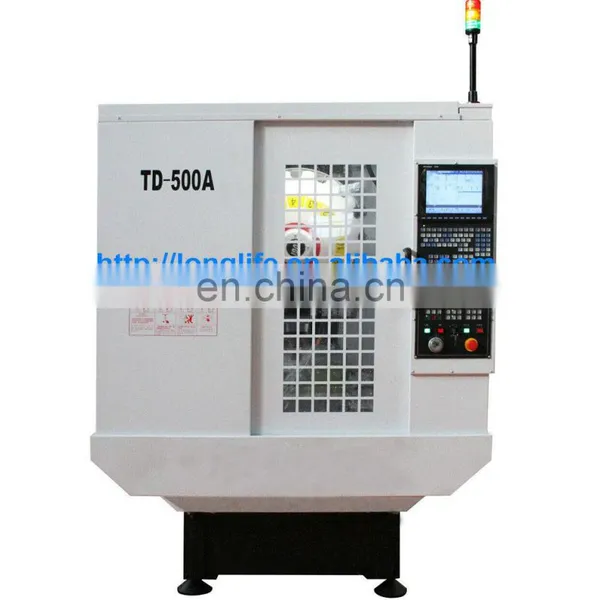

TD Series Drilling and Tapping Machining Center photo-2
US$ 20,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DALIAN
Place of Origin:
Liaoning, China
Model Number:
TD seris drilling and tapping center
Contact Supplier Request Quote Chat Now
Machining Center Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DALIAN
Place of Origin Liaoning, China
Model Number TD seris drilling and tapping center
Type Vertical
Certification CE; ISO9001:2008; GB/T19001:2008
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 months
Weight depends
Dimension(L*W*H) depends
Voltage Customer's Requirement
Condition New
Power(W) 3.7/5.5kW
TD seris high speed drilling and tapping machining center
Brief Introduction

TD series drill and tap machining center is introduced by our Dalian factory to internationally advanced technology, with its own research and development and production of a new generation of CNC machine tools;

the machine is widely used in 3C industry, military, aerospace, automotive components, small mold processing, medical and other industries small and medium plate parts, disc-shaped part, housing class processing.

Part to be completed after a fixture milling, boring, drilling, tapping and other machining processes, with high precision, high automation, high reliability, high degree of mechanical and electrical integration, simple operation, the overall shape of nice features.

Especially for small batch or single parts; machine is equipped with automatic tool exchange system (ATC), automatic centralized lubrication system, water / air cooling system, automatic chip removal system, a portable manually operated device (MPG), fully enclosed protective cover.

Main Technical Data

Specifications

Unit

TD300

TD500A

TD700

Table size (L × W)

mm

630x350

650×400

(opt: 700x420)

850x410

Table load Max

kgs

300

300

200

X travel

mm

300

500

700

Y travel

mm

400

400

400

Z travel

mm

330

330

330

Distance from spindle center line to column guide way surface

mm

400

400

400

Distance from spindle nose end face to table upper surface

mm

155~485

150~480

130~460

X/Y/Z cutting speed

mm/min

0~20000

0~20000

0~20000

X/Y/Z rapid traverse speed

m/min

48/48/48

(opt:60/60/60)

48/48/48(opt:60/60/60)

48/48/48(opt:60/60/60)

Spindle speed range

rpm

50~12000(20000 opt)

50~12000(20000 opt)

50~12000(20000 opt)

Spindle taper



No.30 (7:24 )

No.30 (7:24 )

No.30 (7:24 )

Spindle motor power

kW

3.7/5.5(Mitsubishi, Fanuc), 4.8/5.8(Siemens)

3.7/5.5(Mitsubishi, Fanuc), 4.8/5.8(Siemens)

3.7/5.5(Mitsubishi, Fanuc), 4.8/5.8(Siemens)

Tool magazine capacity / Type



16 T(21T)

Servo-driven turret type

16 T(21T)

Servo-driven turret type

16 T(21T)

Servo-driven turret type

Tool adaptor type



BT30

BT30

BT30

Max. Tool weight

kg

2

2

2

Max. Tool diameter/length

mm

Ø80/Ø200

Ø80/Ø200

Ø80/Ø200

Time of tool change (T-T)

sec

1.5(21T: 1.8)

1.5(21T: 1.8)

1.5(21T: 1.8)

T-slot (Numbers × Width × Distance)

mm

3×14×125

3×14×125

3×14×125

Positioning accuracy(National Standard)

mm

X,Y,Z:0.010

X,Y,Z:0.010

X,Y,Z:0.010

Repeat positioning accuracy(National Standard)

mm

X,Y,Z:0.006

X,Y,Z:0.006

X,Y,Z:0.006

Overall dimension (L × W × H)

mm

1250x2110x2210

2146x1600x2410

2405x2156x2410

Net weight

kgs

2250

2750

3050
Free Std Accessories

1

Automatic tool exchange system(ATC)



2

Spiral scraps discharge device



3

All closed shield



4

Simple oil-water separator



5

Automatic lubrication system



6

Rigid Tapping



7

The anchor bolts and spacers



8

M30 Automatic power system



9

Tool box


Optional Accessories

 Pls send inquiry to me for optioanl accessories and other further information about such high speed cnc tapping machining centers.

Real Photos

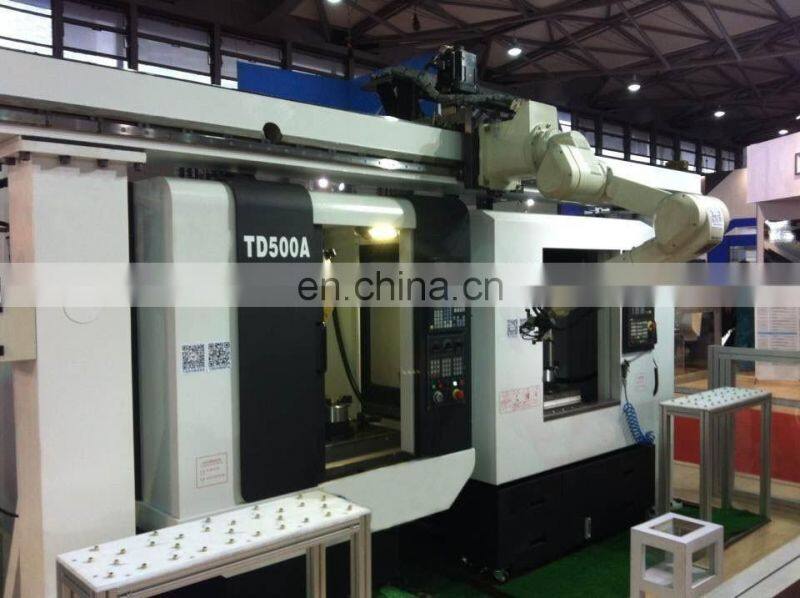

TD series drilling and tapping machining center
