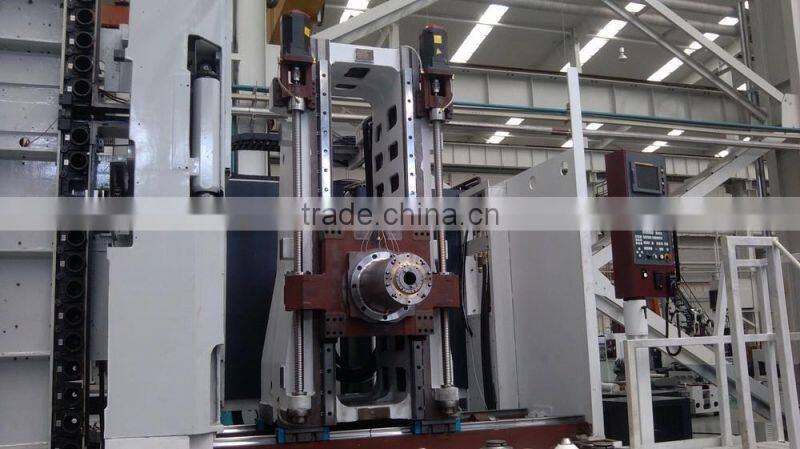

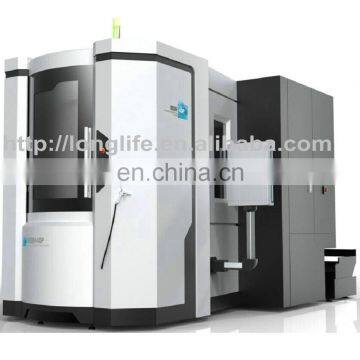

1. MDH100 cnc horizontal machining center is the ideal machining center for producing box-type and irregular work pieces for automobile, shipbuilding, engine and general manufacturing industries.
2. The machine is a high-performance, high-reliability and high-precision product characterized by compact configuration and rapid response rates.

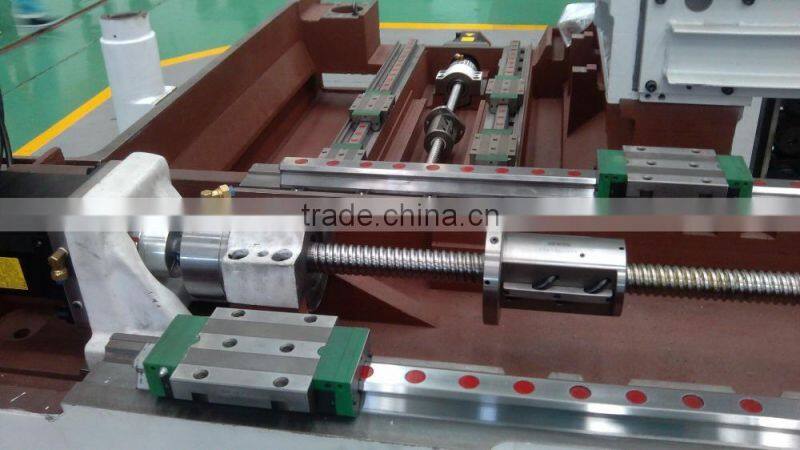

3. The spindle design makes it particularly suitable for heavy power cutting while the excellent ball screw and spindle cooling system provide superb capability for flexible manufacturing.
4. High-speed High-power Spindle;
5. Compact Configuration and Unrivaled rigidity;
6. High-speed ATC;
7. High-speed APC
8. CE and ISO, OKK;
Specifications |
Unit |
MDH100 cnc machining center |
Table size |
mm |
1000×1000 |
Table top to spindle center distance |
mm |
80~1180 |
Table center to spindle front-end distance |
mm |
250~1250 |
Maximum table load |
kg |
2000 |
Table indexing |
|
1°×360° |
Tool storage capacity |
|
40(OP: 60/80/120/160) |
Time of tool change |
s |
2.5(T-T),6.0(C-C) |
Maximum tool weight |
kg |
25 |
Maximum tool diameter |
mm |
Φ115(Adjacent empty:Φ270) |
Maximum tool length |
mm |
500 |
Table indexing time |
S |
5 (90°) |
Coordinate travel (X/Y/Z) |
mm |
1400/1100/1000 |
Fast moving speed |
m/min |
36(OP:45) |
Spindle speed |
rpm |
8000 |
Spindle speed gears |
|
2(MS) |
Spindle internal taper |
|
7/24 No.50 |
Spindle diameter |
mm |
Φ100 |
knife handle form |
|
BT-50 |
Rivets form |
|
45° |
change table amount |
|
2 |
Table change the time |
s |
12.5 |
|
Positioning accuracy
|
mm |
X±0.003 Y/Z±0.0025 |
Repeat positioning accuracy |
mm |
X±0.0025 Y/Z±0.0020 |
Machine weight |
kg |
24500 |
Machine covers an area of size |
mm |
3682×6375 |
