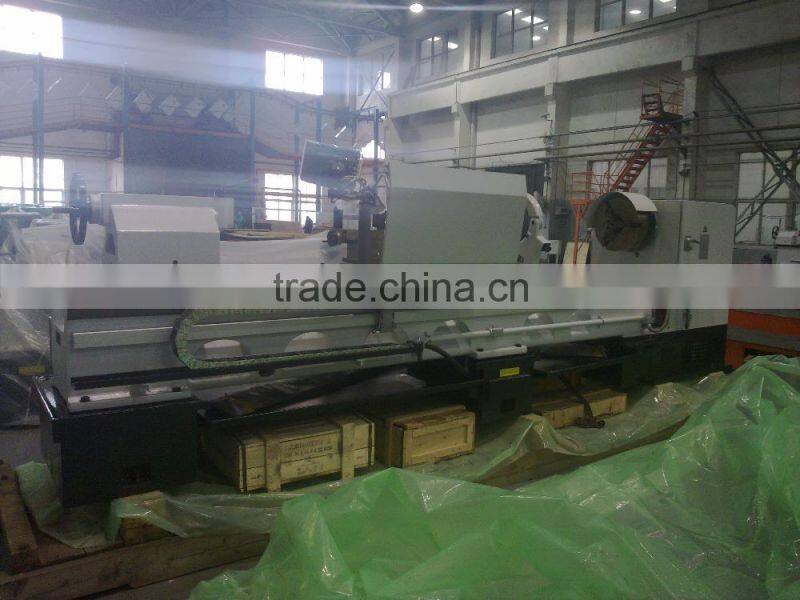

Help CenterCW6180Ex1000 Conventional Lathe Machine
Related Products
-
CW6180Ex1500 Parallel Lathe MachineUS$ 10,000 - 30,000MOQ: 1 Set -
CW6180Ex2000 Horizontal Metal Lathe MachineUS$ 10,000 - 30,000MOQ: 1 Set
-
CW6180Ex3000 Metal Turning Lathe MachineUS$ 10,000 - 30,000MOQ: 1 Set
-
CW61100Ex4000 Metal Horizontal Lathe Machine/tornos MetalUS$ 10,000 - 30,000MOQ: 1 Set
-
CW6180Ex4000 Metal Lathe MachineUS$ 10,000 - 30,000MOQ: 1 Set
Such conventional lathe machine has following features:
l Standard: spindle head: C11/D11, spindle bore diameter: Φ100/105mm.
l Optional: spindle head: D11, spindle bore diameter Φ130mm.
l Guide rail width: 550mm.
l Guide way hardness: HRC50, Depth1.5mm.
l Max load weight between 2-centers: 1000kg; with steady rest: up to 2000kg.
l Standard: Left-hand wheel is equipped;
Right-handed wheel shall be informed specially when placing order.
l Equipped with hydraulic clutch and electrical cabinet.
l Slide board boxes with vertical and horizontal rapid shift handle.
l Special indication is required if tailstock sleeve is with a scale.
CW6280Ex1000 manual horizontal lathe machine's technical information
Specifications |
Unit |
Parameter |
Max. swing over bed |
mm |
800 |
Max. swing over carriage |
mm |
520 |
Center distance |
mm |
1000 |
Width of gap |
mm |
320 |
Swing over gap(optional) |
mm |
1000 |
Width of guide way |
mm |
550 |
Spindle bore diameter |
mm |
105 |
Spindle nose |
|
C11/D11 |
Spindle speed |
rpm |
(18 speeds) 7.5~1000 |
Longitudinal feed |
mm/r |
(64) 0.1~24.3 |
Cross feed |
mm/r |
(64) 0.05~12.15 |
Rapid traverse speed |
m/min |
3.8 |
Metric thread |
mm |
(39)1~240 |
Inch thread |
TPI |
(26) 14~1 |
Module thread |
mm |
(53) 0.5~120 |
Diametrical pitch thread |
D.P |
(24) 28~1 |
Max. travel of cross slide |
mm |
493 |
Travel of top slide |
mm |
200 |
Main motor power |
kW |
11 |
Rapid traverse motor power |
kW |
1.1 |
Coolant pump motor power |
kW |
0.09 |
Wooden box/Pallet packing |
mm |
3950x1150x1990 3840x1100x1800 |
Gross/Net weight |
kg |
4950/3730 |
S.N |
Name |
Remark |
1 |

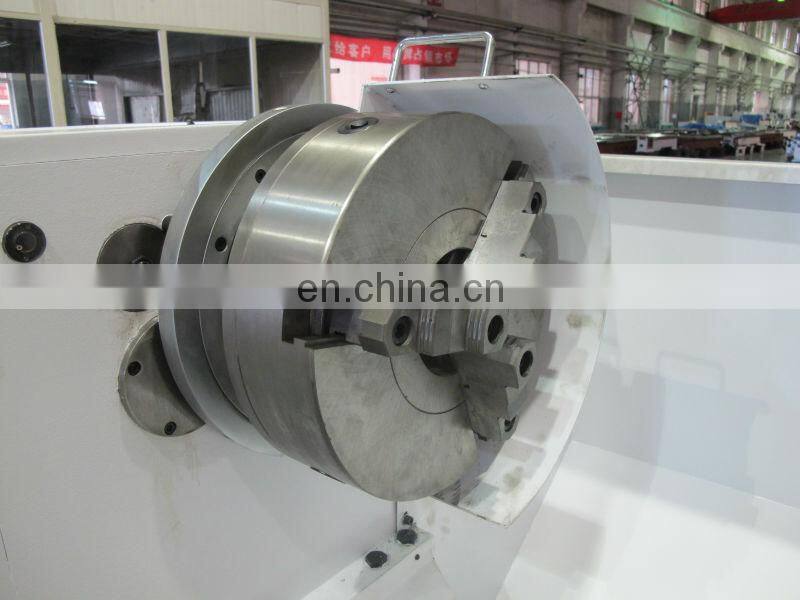

3-jaw chuck |
Φ400(For CW6280E) |
2 |
4-jaw chuck |
Φ630(For CW6280E) |
3 |
Dead center |
2 sets |
4 |
Reducing sleeve |
1 set |
5 |
Wrench Tool |
1 set |
6 |
Oil gun |
1 set |
7 |
Instruction Manual |
1 set |
8 |
Certificate of Conformity |
1 set |
9 |
Packing List |
1 set |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
6, Call us at any time: +86-1313 046 5353/156 411 21240|Wechat: 1313 046 5353
7, Fax us:+86-411-84410129
