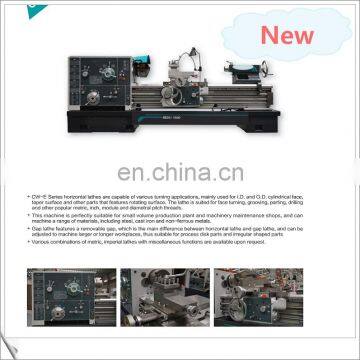

CW6180x1500 parallel lathe machine
Such tornos paralelo/parallel lathe machine has following features:
l Standard: spindle head: C11/D11, spindle bore diameter: Φ100/105mm.
l Optional: spindle head: D11, spindle bore diameter Φ130mm.
l Guide rail width: 550mm.
l Guid way hardness: HRC50, Depth1.5mm.
l Max load weight between 2-centers: 1000kg; with steady rest: up to 2000kg.
l Standard: Left-hand wheel is equipped;
Right-handed wheel shall be informed specially when placing order.
l Equipped with hydraulic clutch and electrical cabinet.
l Slide board boxes with vertical and horizontal rapid shift handle.
l Special indication is required if tailstock sleeve is with a scale.
Specifications |
Unit |
Parameter |
Max. swing over bed |
mm |
800 |
Max. swing over carriage |
mm |
520 |
Center distance |
mm |
1500 |
Width of gap |
mm |
320 |
Swing over gap(optional) |
mm |
1000 |
Width of guide way |
mm |
550 |
Spindle bore diameter |
mm |
105 |
spindle nose |
|
C11/D11 |
Spindle speed |
rpm |
(18 speeds) 7.5~1000 |
Longitudinal feed |
mm/r |
(64) 0.1~24.3 |
Cross feed |
mm/r |
(64) 0.05~12.15 |
Rapid traverse speed |
m/min |
3.8 |
Metric thread |
mm |
(39)1~240 |
Inch thread |
TPI |
(26) 14~1 |
Module thread |
mm |
(53) 0.5~120 |
Diametrical pitch thread |
D.P |
(24) 28~1 |
Max. travel of cross slide |
mm |
493 |
Travel of top slide |
mm |
200 |
Main motor power |
kW |
11 |
Rapid traverse motor power |
kW |
1.1 |
Coolant pump motor power |
kW |
0.09 |
|
Wooden box Pallet packing |
mm |
3490×1150×2080 3390×1100×1920 |
Gross/Net weight |
kg |
5400/4030 |
S.N |
Name |
Size(mm) |
1 |
3-jaw chuck |
Φ400 (For CW6280E) |
2 |
4-jaw chuck |
Φ630 (For CW6280E) |
3 |
Dead center |
2 sets |
4 |
Reducing sleeve |
1 set |
5 |
Wrench Tool |
1 set |
6 |
Oil gun |
1 set |
7 |
Foundationbolt |
Yes |
8 |
Instruction Manual |
1 set |
9 |
Certificate of Conformity |
1 set |
10 |
Packing List |
1 set |
11 |
Manual for Spare Parts |
1 set |
