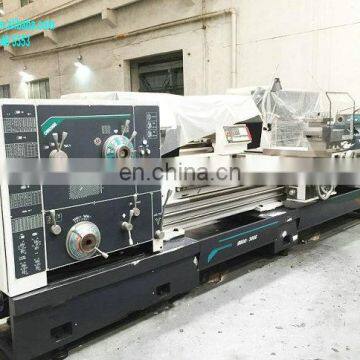

CW61100Ex4000 horizontal lathe machine/tornos
C5116(Ø1600mm) Hot-sale Vertical Lathe Machine
Machine Features:
l Standard spindle head: D11, spindle bore: Ø105mm,
l Optional spindle head: D11,spindle bore:Ø130mm.
l Guide rail width:550mm
l Guide rail hardness:HRC50,Depth1.5mm
l Max load weight between 2-centers:1000kg;
With steady rest: up to 2000kg;
l Standard: Left-hand wheel is equipped;
Right-handed wheel shall be informed specially when placing order;
l Equipped with hydraulic clutch and electrical cabinet
l Slide board boxes with vertical and horizontal rapid shift handle included;
l Special indication is required iftailstock sleeve is with a scale;
Specifications of CW61100 lathe machine |
Unit |
Parameter |
Max. swing over bed |
mm |
1000 |
Max. swing over carriage |
mm |
520 |
Center distance |
mm |
4000 |
Width of gap |
mm |
320 |
Swing over gap(optional) |
mm |
1250 |
Width of guide way |
mm |
550 |
Spindle bore diameter |
mm |
105 |
spindle nose |
|
C11/D11 |
Spindle speed |
rpm |
(18 speeds) 7.5~1000 |
Longitudinal feed |
mm/r |
(64) 0.1~24.3 |
Cross feed |
mm/r |
(64) 0.05~12.15 |
Rapid traverse speed |
m/min |
3.8 |
Metric thread |
mm |
(39)1~240 |
Inch thread |
TPI |
(26) 14~1 |
Module thread |
mm |
(53) 0.5~120 |
Diametrical pitch thread |
D.P |
(24) 28~1 |
Max. travel of cross slide |
mm |
493 |
Travel of top slide |
mm |
200 |
Main motor power |
kW |
11 |
Rapid traverse motor power |
kW |
1.1 |
Coolant pump motor power |
kW |
0.09 |
Wooden box/Pallet packing |
mm |
|
Gross/Net weight |
kg |
|
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
6, Call us at any time: +86-1313 046 5353/156 411 21240|Wechat: 1313 046 5353
7, Fax us:+86-411-84410129
