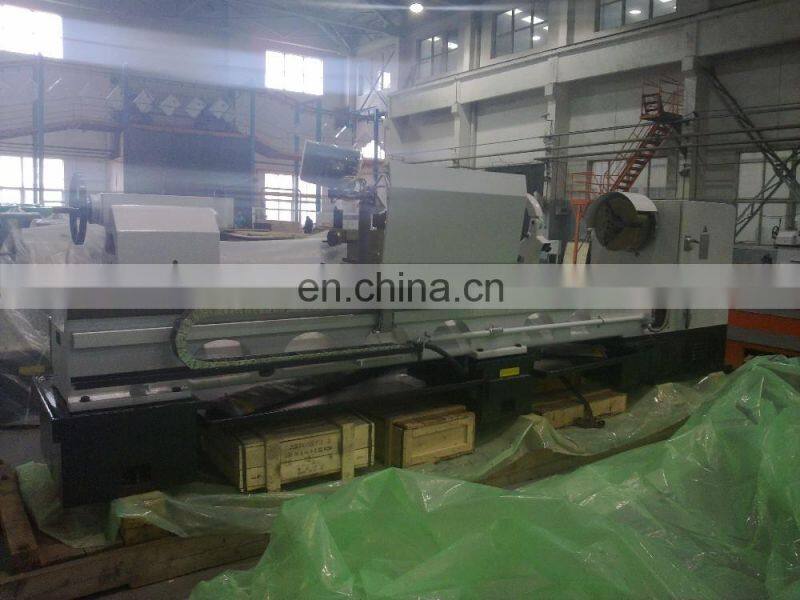

CW61100Ex6000 horizontal metal lathe machine
CW61100x6000 conventional lathe machine |
Unit |
Parameter |
Max. swing over bed |
mm |
1000 |
Max. swing over carriage |
mm |
350 |
Center distance |
mm |
6000 |
Width of gap |
mm |
320 |
Swing over gap(optional) |
mm |
1250 |
Width of guide way |
mm |
550 |
Spindle bore diameter |
mm |
105/130 opt |
spindle nose |
|
C11/D11 opt |
Spindle speed |
rpm |
(18 speeds) 7.5~1000 |
Longitudinal feed |
mm/r |
(64) 0.1~24.3 |
Cross feed |
mm/r |
(64) 0.05~12.15 |
Rapid traverse speed |
m/min |
3.8 |
Metric thread |
mm |
(39)1~240 |
Inch thread |
TPI |
(26) 14~1 |
Module thread |
mm |
(53) 0.5~120 |
Diametrical pitch thread |
D.P |
(24) 28~1 |
Max. travel of cross slide |
mm |
445 |
Travel of top slide |
mm |
200 |
Main motor power |
kW |
11 |
Rapid traverse motor power |
kW |
1.1 |
Coolant pump motor power |
kW |
0.09 |
Wooden box/Pallet packing |
mm |
|
Gross/Net weight |
kg |
|
Pls send inquiry to me for optioanl accessories and other further information about such lathe machines.
1. CW61100 tornos paralelo/horizontal lathe machine are capable of various turning applications, mainly used for I.D and O.D. cylindrical face taper surface and other parts that features rotating surface.
2. The lathe is suitable for face turning, grooving, parting, drilling and other popular metric, inch, module and diametral pitch threads.
3. This machine is perfectly suitable for small valume production plant and machinery maintenance shops, and can machine a range of materials, including steel, cast iron and non-ferrous metals.
4. The lathe can be in metric or imperial or combination of metrica and imperial upon request.
5. Carriage wheel can be left-handed or right-handed;
6. Spindle bore diameter can be 100/105mm or 130mm optional;
7. DRO is available, too.
8. Kinds of lathe colors are availbe for customers' choice;
