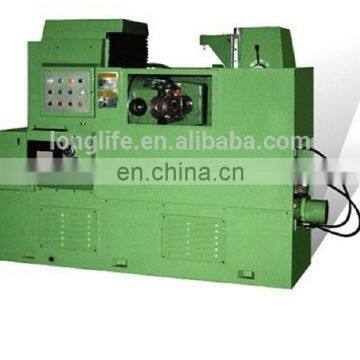

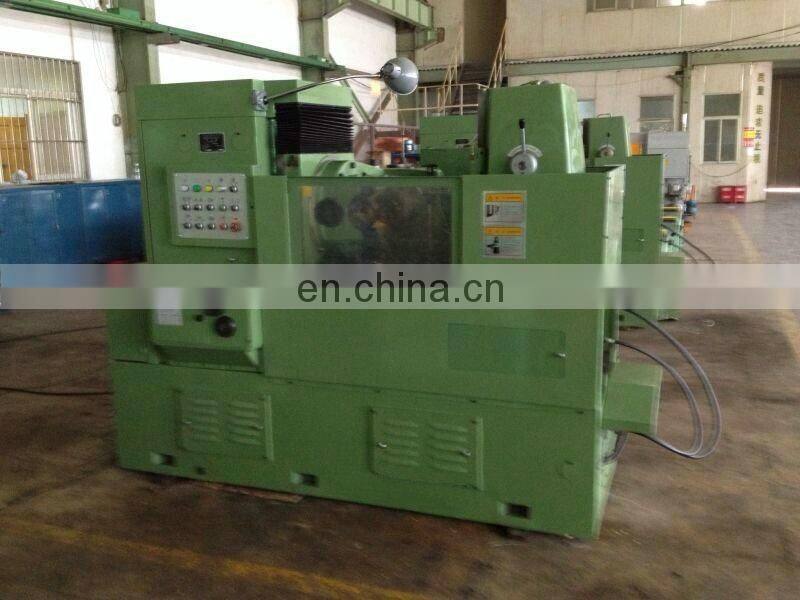

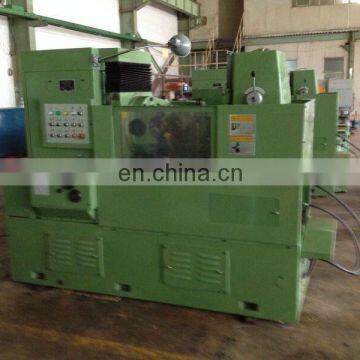

Y(NH)3120 gear hobbing machine/gear creator
Such y3120 gear hobbing machine/gear creator has following features:
The model YNH3120 is a gear hobbing machine designed for cutting spur gears, helical gears and worm wheels. When a chain wheel hob is used, the machine is capable of cutting chain wheels.
The perfectly designed machine is high in rigidity, consistent in working accuracy and easy to set up & maintain. The gears can be cut either by the conventional hobbing method or by the climb hobbing method. The machine is therefore well-suited for job-lot or batch production of gears in the machine-building enterprises.
CE Standard anc CE Certificate;
Specifications of Y(NH)3120 gear hobbing machine/gear creator |
Unit |
Y(NH)3120 gear hobbing machine/gear creator |
Maximum diameter to be hobbed |
mm |
200 |
Maximum modulus |
mm |
4 |
Maximum angel of helix |
|
±45° |
Worktable diameter |
mm |
210 |
Diameter of worktable bore |
mm |
40 |
Diameter from the hob center worktable centers |
mm |
10~185 |
Diameter form the hob center worktable surface |
mm |
125~295 |
Maximum diameter of hob |
mm |
110 |
Maximum length of hob |
mm |
110 |
Maximum axial movement of the hob |
mm |
50 |
Cone of the spindle bore |
r/mm |
MT 3 |
|
Hob spindle speeds in 8(9) steps
|
mm/r |
63~320(8) |
Axial federates |
mm |
0.2~3 |
Hydraulic withdrawal of the worktable |
mm |
30 |
Power of the main drive motor |
kW |
2.2 |
Total power consumption |
kVA |
3.42 |
Net weight/Gross weight |
kg |
2100 |
Machine overall dimension (length × width ×height) |
mm |
1840×1400×1450 |
The measure of area (length × width ) |
mm |
2000×1800 |
Pls send inquiry to me for optioanl accessories and other further information about such semi auto gear hobbing machine/gear creator.
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
6, Call us at any time: +86-1313 046 5353/156 411 21240|Wechat: 1313 046 5353
7, Fax us:+86-411-84410129
Y(NH)3120 semi auto high precision gear hobbing machine/gear creator
