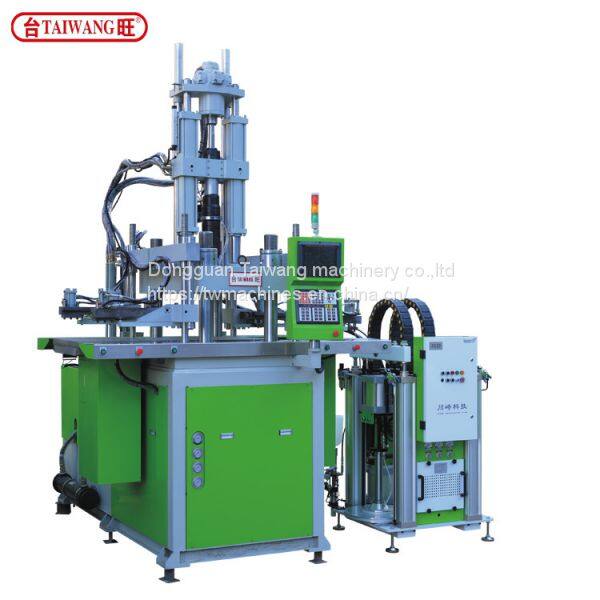

Hot Selling LSR Injection Molding Machine Factory Price

Hot Selling LSR Injection Molding Machine Factory Price thumbnail-1
Hot Selling LSR Injection Molding Machine Factory Price thumbnail-2
Hot Selling LSR Injection Molding Machine Factory Price thumbnail-3
Hot Selling LSR Injection Molding Machine Factory Price thumbnail-4
Hot Selling LSR Injection Molding Machine Factory Price photo-1
Hot Selling LSR Injection Molding Machine Factory Price photo-2
Hot Selling LSR Injection Molding Machine Factory Price photo-3
Hot Selling LSR Injection Molding Machine Factory Price photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Taiwang brand
Place of Origin:
China
Model Number:
TW-85V-G
Contact Supplier Request Quote Chat Now
Dongguan Taiwang Machinery Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
GuangZhou / ShenZhen
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Taiwang brand
Place of Origin China
Model Number TW-85V-G
Certification CE
Plastic Type Thermoplastic
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Power(W) 11.1Kw
Automatic Yes
Opening Stroke 36 42 mm
Clamping Force 85 tf
Injection Rate 61 83 cc/s
Injection Weight 141 194 gr
Style Vertical
Type Other, vertical injection

Application：

1.TaiWang injection molding machine is suitable for multi-purpose injection molding.
2.The following materials are suitable for our products:GPPS, HIPS, SAN, ABS,LDPE, HDPE,PP, PPO, PA6, PA66, ACEAL COPOLYMER, CAB, PET, PBT,PC, PMMA, hard PVC, soft PVC,PU, EVA, PSF, , BMC.

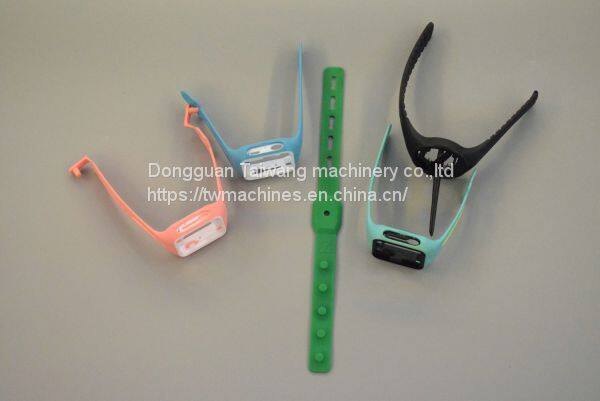

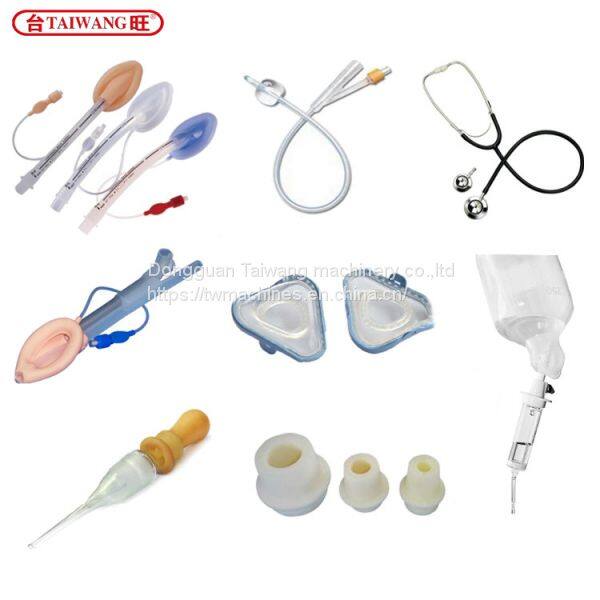

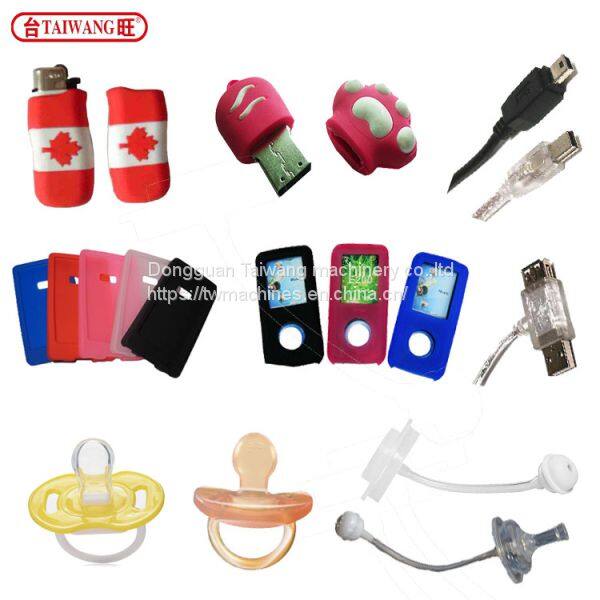

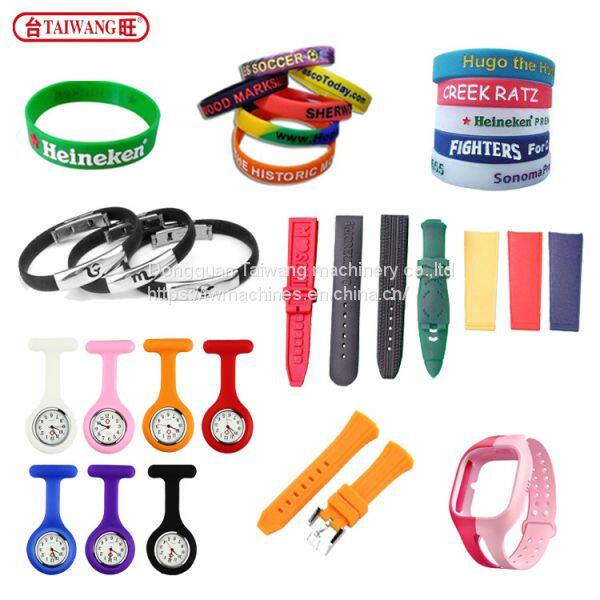

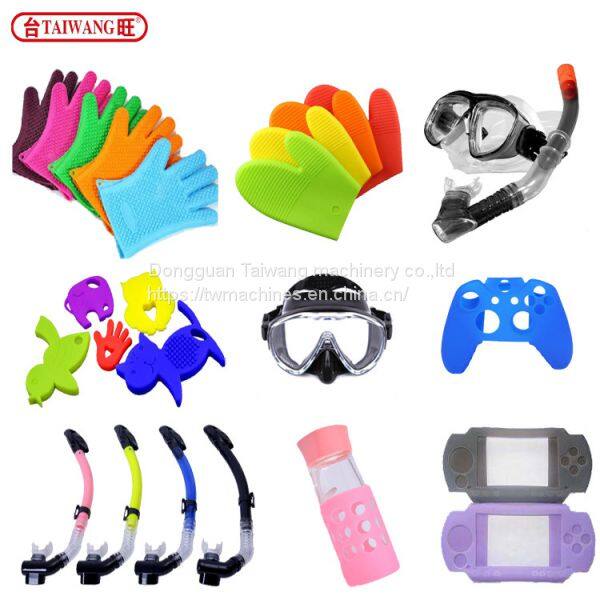

3.TaiWang vertical injection machine are widely applied to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, cables,auto parts, Plug ,etc.
4. Overall, our vertical injection molding machines.Wide-range of materials such as plastic, rubber, silicone could be fromed according to your requirment and available to different industry like auto, electron, medical, living goods and shoe industry.

TW-85V-G
INJECTION UNIT
Item
Unit
TW-85V-G
Screw Diameter
mm
 36             42
Injection Pressure
kgf/c㎡
2176        1599
Injection Capacity
cm³
 158           215
Injection Weight(P.S)
gr
141            194
oz
5                 7
Injection Rate
cc/s
  61                83
Screw Speed
r.p.m
0~180
Screw Stroke
mm
155
Nozzle Stroke
mm
200
Nozzle Contact Force
tf
3.5
CLAMPING UNIT
Clamping System
......
Hydraulic
Clamping Force
tf
85
Clamping Stroke
mm
200
Max.Mould Space
mm
380
Min.Mould Height
mm
180
Overall Size Of Platens(H×V)
mm
760*560
Space Between Columns(H×V)
mm
520*320
Hydraulic Ejector Force (H×V)
tf
2.7
Ejector Stroke
mm
50
OTHERS
Drive Motor
kw
11.1(15HP)
Heater
kw
6.7
Dimension of Machine(L×W×H)
m
2.2*1.5*4.1
Weight Of Machine
t
4.3
Shipping Size(L×W×H)
m
2.4*1.7*3.6
Shipping Weight
t
5
Oil Tank Capacity
L
260
Cooling Water
l/hr
800~1000

Main Features

1.Clamping Force: 85T-350T

2.Injection Capacity: 36cm³-403cm³

3..Vertical clamping and injection design, especially suitable for the insert molding production.

4.Space-saving compact design,more convenient to take product out.

5.Adopts the international brand component for keeping machine running stable, reliable and accurately.

6.Multistage precision molding heaters.

7.Glass fiber board insulating.

8.Sliding table and rotary table as option, specially suitable for the insert molding production.

9.Special feeding design, precise metering.

10.Optional vacuum evacuation meaning.

11.User-friendly LCD display which owns diverse languages system indicates various functions and working situation.

12.TaiWang vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time.


Packaging Details:
♦. Standard Packing: Plastic film is wrapped on the machine;
♦. Outside wooden Package

Delivery Time: 15 days only

Our Service
one-stop provider:

TaiWang machinery co.,ltd.engage in one-stop service which is from material,mould,machine to finished product so that every client is able to obtain various solution here.

1. Provide considerate suggestion to choose suitable material with low cost.

2. Help customer make mold design and manufacture.

3. According to customer's demand, supply machine solution,including whole produce line.

4. Correctly guide customer to operate machine by video.

5. Do help client purchase essential accessory in per section .

Company introduction：
     Our company where locate in DongGuang city of GuangDong province has specialized in manufacturing injection machine for around 10 yeras and attain great reputation for high quality and considerate service also our machine is widely used among domestic and foreign customers. In terms of technical aspect, not only in order to cater with various clients who is from diverse industrial field such as medical,toy manufacturer, car accessories,aviation , stationery,sport even living goods and etc but also We provide customized service to special manufacturer.




Jerry Ho

E-mail:445880598@qq.com

Phone:86-13712842001
