TaiWang Brand tpr/ tpe/tpu injection molding machine

Name: TaiWang Brand tpr/ tpe/tpu injection molding machine
Brand: Taiwang brand
Price: USD $3000 - 6000 / Set

FOB Price

USD $3000 - $6000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shen Zhen
Payment Terms:T/T L/C Credit Card PayPal Cash
Delivery Detail:3 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Taiwang brand	Place of Origin:	China	Model Number:	15T-500T vertical plastic injection molding machine
Certification:	CE	Plastic Type:	Thermoplastic	After-sales Service Provided:	Engineers available to service machinery overseas
Condition:	New	Power(W):	6.7kw-28.6kw	Automatic:	Yes
Opening Stroke:	215-250mm	Clamping Force:	25-350T	Injection Rate:	100-200mm/s, 33cc/s-265cc/s
Injection Weight:	5-2000g	Style:	Vertical	Type:	Other, vertical injection machine

Product Description

Application:

1.TaiWang injection molding machine is suitable for multi-purpose injection molding.
2.The following materials are suitable for our products:GPPS, HIPS, SAN, ABS,LDPE, HDPE,PP, PPO, PA6, PA66, ACEAL COPOLYMER, CAB, PET, PBT,PC, PMMA, hard PVC, soft PVC,PU, EVA, PSF, , BMC.
3.TaiWang vertical injection machine are widely applied to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, cables,auto parts, Plug ,etc.
4. Overall, our vertical injection molding machines.Wide-range of materials such as plastic, rubber, silicone could be fromed according to your requirment and available to different industry like auto, electron, medical, living goods and shoe industry.

Standard Machine Series TW25T ~ TW350T
INJECTION UNIT	Item	Unit	TW-25V
	Screw Diameter	mm	22 26
	Injection Capacity	kgf/c㎡	2089 1496
	Injection Pressure	cm³	36 50
	Injection Weight(P.S)	gr	32 45
	Injection Weight(P.S)	oz	1 2
	Injection Rate	cc/s	33 46
	Screw Speed	r.p.m	0~150
	Screw Stroke	mm	95
	Nozzle Stroke	mm	150
	Nozzle Contact Force	tf	2.4
CLAMPLING UNIT	Clamping System	......	Hydraulic
	Clamping Force	tf	25-30
	Clamping Stroke	mm	215
	Max.Mould Space	mm	360
	Min.Mould Height	mm	145
	Overall Size Of Platens(H×V)	mm	490*290
	Space Between Columns(H×V)	mm	350*150
	Hydraulic Ejector Force	tf	1.7
	Ejector Stroke	mm	40
OTHERS	Drive Motor	kw	3.7(5HP)
	Heater	kw	4.1
	Dimension of Machine(L×W×H)	m	1.31.12.8
	Weight Of Machine	t	1.15
	Shipping Size(L×W×H)	m	1.51.32.2
	Shipping Weight	t	1.75
	Oil Tank Capacity	L	130
	Cooling Water	l/hr	500~700

Main Features

1.Clamping Force: 25T-150T

2.Injection Capacity: 36cm³-403cm³

3..Vertical clamping and injection design, especially suitable for the insert molding production.

4.Space-saving compact design,more convenient to take product out.

5.Adopts the international brand component for keeping machine running stable, reliable and accurately.

6.Multistage precision molding heaters.

7.Glass fiber board insulating.

8.Sliding table and rotary table as option, specially suitable for the insert molding production.

9.Special feeding design, precise metering.

10.Optional vacuum evacuation meaning.

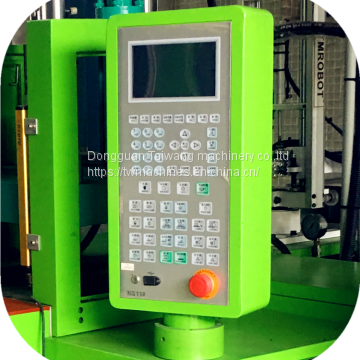

11.User-friendly LCD display which owns diverse languages system indicates various functions and working situation.

12.TaiWang vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time.

Packing & Delivery

Packaging Details:

1. Standard Packing: Plastic film

is wrapped on the machine;

2. Outside wooden Package

Delivery Time: 15 days only

Company introduction:

Our company where locate in DongGuang city of GuangDong province has specialized in manufacturing injection machine for around 10 yeras and attain great reputation for high quality and considerate service also our machine is widely used among domestic and foreign customers. In terms of technical aspect, not only in order to cater with various clients who is from diverse industrial field such as medical,toy manufacturer, car accessories,aviation , stationery,sport even living goods and etc but also We provide customized service to special manufacturer.
