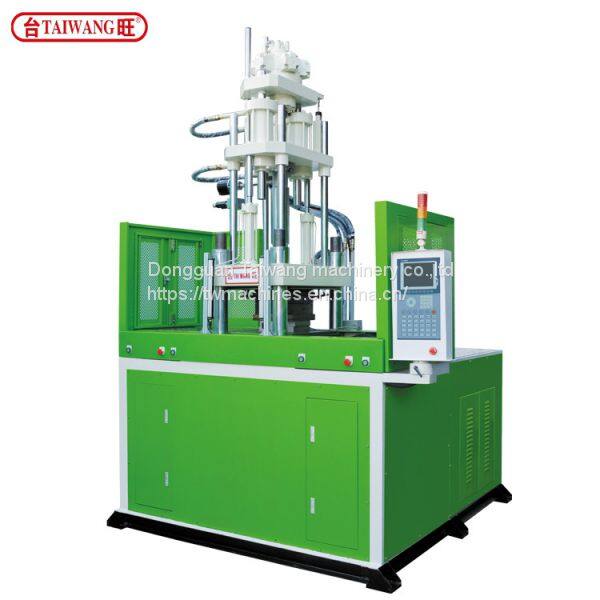

TaiWang Brand 25T-350T Vertical Double Sliding Table Plastic Injection Molding Machine Factory Price

TaiWang Brand 25T-350T Vertical Double Sliding Table Plastic Injection Molding Machine Factory Price thumbnail-1
TaiWang Brand 25T-350T Vertical Double Sliding Table Plastic Injection Molding Machine Factory Price thumbnail-2
TaiWang Brand 25T-350T Vertical Double Sliding Table Plastic Injection Molding Machine Factory Price thumbnail-3
TaiWang Brand 25T-350T Vertical Double Sliding Table Plastic Injection Molding Machine Factory Price thumbnail-4
TaiWang Brand 25T-350T Vertical Double Sliding Table Plastic Injection Molding Machine Factory Price thumbnail-5
TaiWang Brand 25T-350T Vertical Double Sliding Table Plastic Injection Molding Machine Factory Price photo-1
TaiWang Brand 25T-350T Vertical Double Sliding Table Plastic Injection Molding Machine Factory Price photo-2
TaiWang Brand 25T-350T Vertical Double Sliding Table Plastic Injection Molding Machine Factory Price photo-3
TaiWang Brand 25T-350T Vertical Double Sliding Table Plastic Injection Molding Machine Factory Price photo-4
TaiWang Brand 25T-350T Vertical Double Sliding Table Plastic Injection Molding Machine Factory Price photo-5
US$ 3000 - 6000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Taiwang brand
Place of Origin:
China
Model Number:
15T-500T vertical plastic injection molding machine
Contact Supplier Request Quote Chat Now
Dongguan Taiwang Machinery Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen Zhen
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Taiwang brand
Place of Origin China
Model Number 15T-500T vertical plastic injection molding machine
Certification CE
Plastic Type Thermoplastic
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Power(W) 6.7kw-28.6kw
Automatic Yes
Opening Stroke 215-250mm
Clamping Force 25-350T
Injection Rate 100-200mm/s, 33cc/s-265cc/s
Injection Weight 5-2000g
Style Vertical
Type Other, vertical injection machine
Application

1.TaiWang injection molding machine is suitable for multi-purpose injection molding.
2.The following materials are suitable for our products:GPPS, HIPS, SAN, ABS,LDPE, HDPE,PP, PPO, PA6, PA66, ACEAL COPOLYMER, CAB, PET, PBT,PC, PMMA, hard PVC, soft PVC,PU, EVA, PSF, , BMC.
3.TaiWang vertical injection machine are widely applied to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, cables,auto parts, Plug ,etc.
4. Our machines can inject plentiful materials such as plastic, rubber, silicone could be fromed according to your requirment and available to different industry like auto, electron, medical, living goods and shoe industry.


Main feature

1.Vetical injection and vertical clamping design
2.Double movable platen where can lay 2 or more moulds run smoothly and are suitable for producing various kinds of pocket inserts. It greatly improves work efficiency and saves labor.
3.It is safe because the product and delivery and inserting is not performed in molding station but the same work station. Moreover, automatic device can be used onto the machine.
4.Adopting three(pressure,flux)proportional control, the machine runs with low noise and at a high speed, it is equipped with low-voltage protective function.
5.Space-saving compact design,more convenient to take product out.
6.Adopts the international brand component for keeping machine running stable, reliable and accurately.
7.User-friendly LCD display which owns diverse languages system indicates various functions and working situation.


TW-25V-2S
INJECTION UNIT Item Unit TW-25V-2S
 Screw Diameter mm 22   26
 Injection Pressure  kgf/c㎡ 2089   1496
 Injection Capacity cm³ 36   50
Injection Weight(P.S) gr 32   45
oz 1.0  1.5
 Injection Rate cc/s 33   46
Screw Speed r.p.m 0~150
Screw Stroke mm 95
Nozzle Stroke mm 150
Nozzle Contact Force tf 2.4
 CLAMPING UNIT  Clamping System  …… Hydraulic
 Clamping Force tf 25
Clamping Stroke mm 215
  Max.Mould Space mm 360
 Min.Mould Height mm 145
Overall Size Of Platens(H×V) mm 490*290
Space Between Columns(H×V) mm 350*150
  Hydraulic Ejector Force (H×V) tf 1.7
 Ejector Stroke mm 40
SLIDE TABLE    Slidable Journey mm 300
Overall Size of Slipform(H×V) mm 600*330
Number of Molds Sets 2
OTHERS Drive Motor kw 3.7(5HP)
Heater kw 3
Dimension of Machine(L×W×H) m  1.2*1.2*2.8
Weight Of Machine t  1.25
Shipping Size(L×W×H) m 1.4*1.4*2.2
Shipping Weiht l  1.75
Oil Tank Capacity
130
  Cooling Water l/hr 500~700



Packaging Details:

♦. Standard Packing: Plastic film is wrapped on the machine;
♦. Outside wooden Package


Delivery Time: 15 days only


Our Service
one-stop provider：

TaiWang machinery co.,ltd.engage in one-stop service which is from material,mould,machine to finished product so that every client is able to obtain various solution here.

1. Provide considerate suggestion to choose suitable material with low cost.

2. Help customer make mold design and manufacture.

3. According to customer's demand, supply machine solution,including whole produce line.

4. Correctly guide customer to operate machine by video.

5. Do help client purchase essential accessory in per section .


Company introduction：
     Our company where locate in DongGuang city of GuangDong province has specialized in manufacturing injection machine for around 10 yeras and attain great reputation for high quality and considerate service also our machine is widely used among domestic and foreign customers. In terms of technical aspect, not only in order to cater with various clients who is from diverse industrial field such as medical,toy manufacturer, car accessories,aviation , stationery,sport even living goods and etc but also We provide customized service to special manufacturer.
