C6256 Chinese New Manual and Cheap Metal Lathe Machine Price

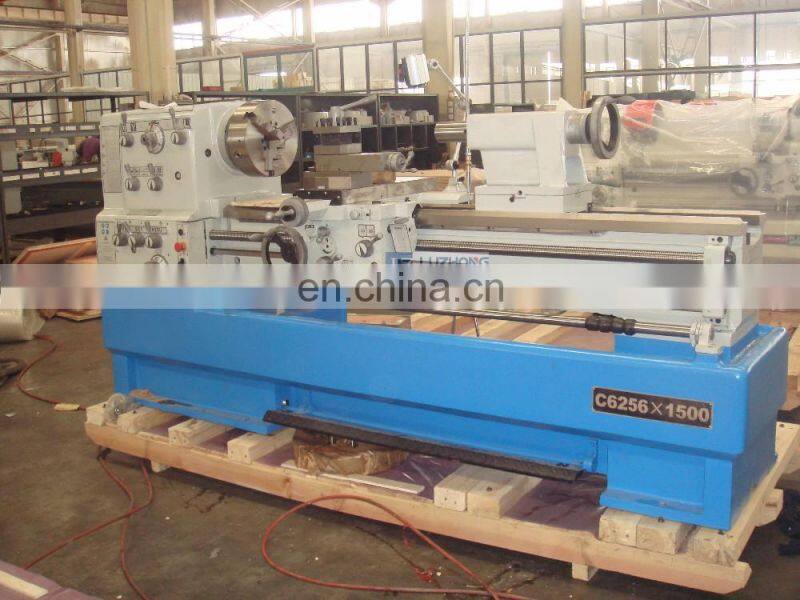

C6256 Chinese New Manual and Cheap Metal Lathe Machine Price photo-1

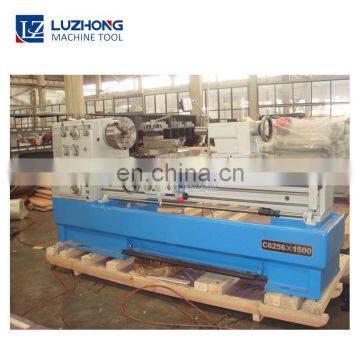

C6256 Chinese New Manual and Cheap Metal Lathe Machine Price photo-2

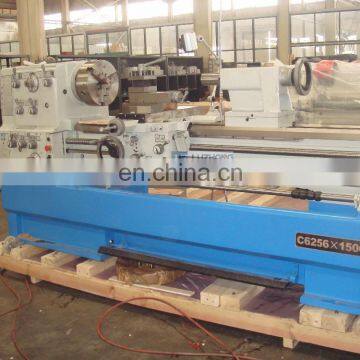

C6256 Chinese New Manual and Cheap Metal Lathe Machine Price photo-3

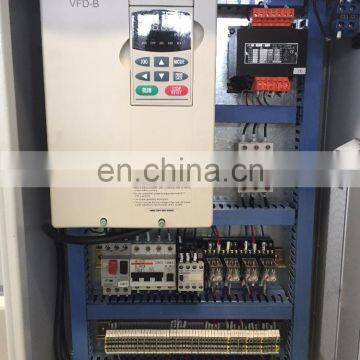

C6256 Chinese New Manual and Cheap Metal Lathe Machine Price photo-4
US$ 7,600 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
luzhong
Place of Origin:
Shandong, China
Model Number:
C6256
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name luzhong
Place of Origin Shandong, China
Model Number C6256
After-sales Service Provided No overseas service provided
Condition New

C6256 Chinese new manual and cheap metal lathe machine price

Product Description

 C6256 Chinese new manual and cheap metal lathe machine price

The main performance characteristics:

The guide way and all gears in the headstock are hardened and precision ground.

The spindle system is high rigidity and accuracy.

The machines have powerful headstock gear train, high rotating accuracy and smooth running with Iow noise

An overload safety device is provided on the apron.

Pedal or electromagnetic braking device.

Tolerance test certificate, test flow chart included

STANDARD ACCESSORIES

1 Three Jaw Chuck and Adapter

2 Four Jaw Chuck and Adapter

3 Face Plates

4 Steady Rest

5 Follow Rest

6 Oil Gun

7 Thread Chasing Dial

8 Operation Manual

9 One set of Wrenches

10 MT 7/5 Sleeve and MT 5 Center

SPECIAL ACCESSORIES

1 Driving Plate

2 Quick Change Tool Post

3 Taper Turning Attachment

4.variable speed



Product main technical specifications:

SPECIFICATION

C6256

Swing over red

560mm(20")

Swing over cross slide

355mm(11-7/8")

Swing in gap

785mm(29")

Length of gap

200mm(8")

Distance between centers

1000mm(60")/1500mm(60")/2000mm(80")/3000(120")

Center height

1160mm

Width of bed

350mm(13-3/4")

Spindle nose

D1-8

Spindle bore

80mm(3-1/8")

Taper of spindle bore

No.7Morse

Range of spindle speed

12 changes 25-1600r/min

Max.travel of compound rest

130mm(5-1/8")

Max.travel of cross slide

316mm(12-15/16")

Leadscrew pitch

6mm Or 4T.P.L

Max.section of tool

25×25mm(1×1")

Longitudinal feeds range

35kinds 0.059-1.646mm/rev(0.0022"-0.0612"/rev)

Cross feeds range

35kinds 0.020-0.573mm(0.00048"-0.01354")

Metric threads range

47kinds0.2-14mm

Inch threads range

60kinds2-112T.P.L

Diametrical pitches range

50kinds4-112D.P.

Module pitches range

39kinds0.1-7M.P.

Dia of tailstock sieeve

75mm(3")

Travel of tailstock sleeve

180mm(7")

Morse taper of tailstock sleeve

No.5Morse

Cross adjustment

±13mm(±1/2")

Power of main motor

7.5kw(10HP)3PH

Power of coolant pump

0.1kw(1/8HP),3PH

Overall dimension(L×W×H)

239/284/334/434×115×143cm

Packing size(L×W×H)

245/290/340/440×115×143cm

Net weight/Gross weight

2160/2555 2285/2690 2560/2980 2930/3410
