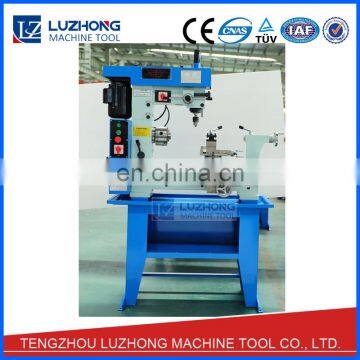

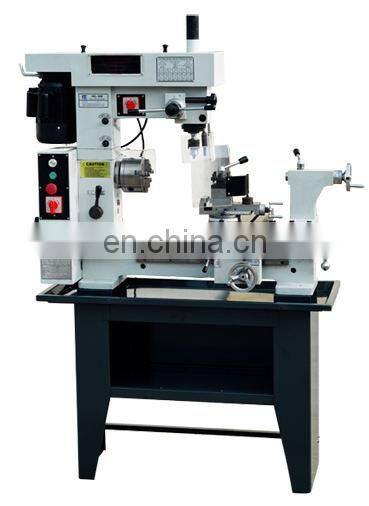

HQ800 Mini Bench 3 in 1 Multi Purpose Lathe Mill Drill Machine
Features:
1)A kind of combination machines with turning, milling, drilling and threading.
2)Metric or imperial thread cutting
3)Suitable for processing metal, wood and other materials
4)Excellent advantage of various functions, small occupation and economization
5)Widely used in job-shops, car shops technical school, factories and family for machine parts repairing and making, education training, household utensils' making, etc.
Product main technical specifications:
Specifications |
HQ800 |
|
Turning |
Swing over bed |
φ 420mm |
Distance between centers |
800mm |
|
Max. longitudinal travel |
740mm |
|
Max. cross travel |
200mm |
|
Taper of spindle |
M. T. 4 |
|
Spindle hole |
φ 28mm |
|
Step of spindle speed |
7 steps |
|
Range of spindle speed |
160-1360RPM |
|
Barrel travel |
70mm |
|
Taper of center |
M. T. 3 |
|
Metric thread range |
0.2-6mm |
|
Inch thread range |
4-120T. P. I |
|
Longitudinal range of automatic feeding |
0.05-0.35mm/0.002-0.014" |
|
Cross range of automatic feeding |
0.05-0.35mm/0.002-0.014" |
|
Drilling & Milling |
Max. drilling capacity |
φ 22mm |
Worktable size (L*W) |
475× 160mm² |
|
Max. end mill |
φ 28mm |
|
Max. face mill |
φ 80mm |
|
Distance between spindle center and column |
285mm |
|
Distance between spindle and worktable |
306mm |
|
Headstock travel of up and down |
110mm |
|
Spindle taper |
M. T. 3 |
|
Step of spindle speed |
16 |
|
Range of spindle speed |
120-3000r. p. m |
|
Swivel degree of headstock |
± 360° |
|
Motor |
Motor power |
0.55Kw |
Shipping data |
Packing size |
1430×580×1100mm |
N. weight/G. weight |
275kg/325kg |
|
|
|
| C series Lathe Machine | CA Series Lathe Machine |
|
|
| CJM320B Mini Lathe Machine | CW6180E Lathe Machine |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
