HQ500 Multi-purpose Mill Lathe and Milling Machine Combo

HQ500 Multi-purpose Mill Lathe and Milling Machine Combo photo-1

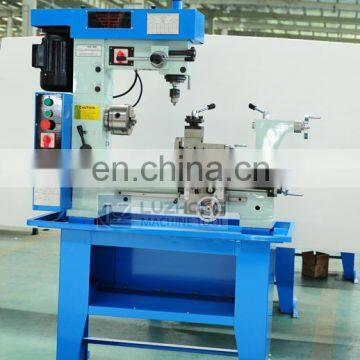

HQ500 Multi-purpose Mill Lathe and Milling Machine Combo photo-2

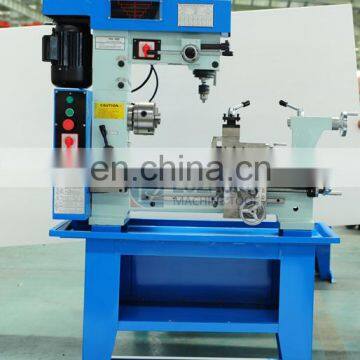

HQ500 Multi-purpose Mill Lathe and Milling Machine Combo photo-3
US$ 1,220 - 1,400 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Luzhong
Place of Origin:
Shandong, China
Model Number:
HQ500
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Luzhong
Place of Origin Shandong, China
Model Number HQ500
After-sales Service Provided No overseas service provided
Condition New

HQ500 Multi-purpose Lathe Mill Drill Machine Combo

Product Description



HQ500 Multi-purpose Mill Lathe and Milling Machine Combo

Features:

1)A kind of combination machines with turning, milling, drilling and threading.
2)Metric or imperial thread cutting
3)Suitable for processing metal, wood and other materials
4)Excellent advantage of various functions, small occupation and economization
5)Widely used in job-shops, car shops technical school, factories and family for machine parts repairing and making, education training, household utensils' making, etc.

Product main technical specifications:



Specifications

HQ500

Turning

Swing over bed

φ 420mm

Distance between centers

500mm

Max. longitudinal travel

440mm

Max. cross travel

200mm

Taper of spindle

M. T. 4

Spindle hole

φ 28mm

Step of spindle speed

7 steps

Range of spindle speed

160-1360RPM

Barrel travel

70mm

Taper of center

M. T. 3

Metric thread range

0.2-6mm

Inch thread range

4-120T. P. I

Longitudinal range of automatic feeding

0.05-0.35mm/0.002-0.014"

Cross range of automatic feeding

0.05-0.35mm/0.002-0.014"

Drilling & Milling

Max. drilling capacity

φ 22mm

Worktable size (L*W)

475× 160mm²

Max. end mill

φ 28mm

Max. face mill

φ 80mm

Distance between spindle center and column

285mm

Distance between spindle and worktable

306mm

Headstock travel of up and down

110mm

Spindle taper

M. T. 3

Step of spindle speed

16

Range of spindle speed

120-3000r. p. m

Swivel degree of headstock

± 360°

Motor

Motor power

0.55Kw

Shipping data

Packing size

1130×580×1100mm(HQ800:1430×580×1100mm)

N. weight/G. weight

245kg/280kg(HQ800:275kg/325kg)

Details Display

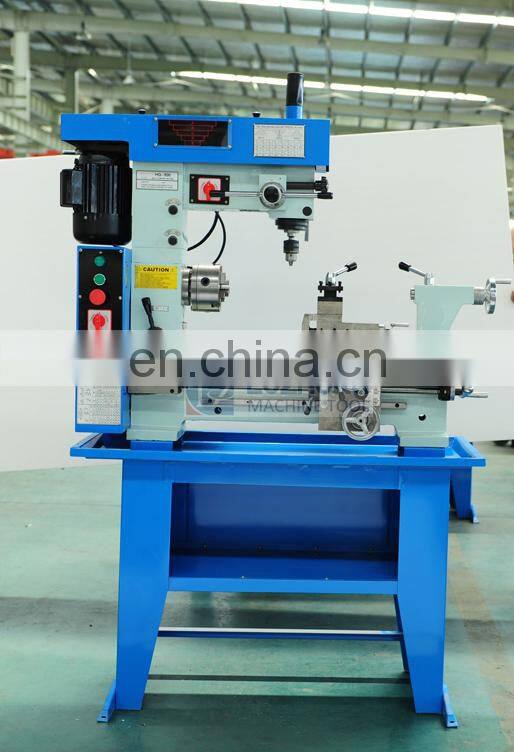

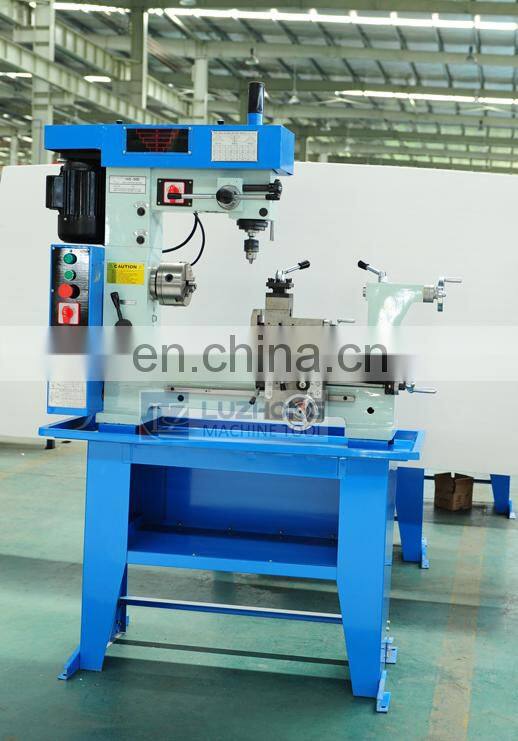

HQ500 Multi-purpose Mill Lathe and Milling Machine Combo  HQ500 Multi-purpose Mill Lathe and Milling Machine Combo

Related Products

HQ500 Multi-purpose Mill Lathe and Milling Machine Combo

HQ500 Multi-purpose Mill Lathe and Milling Machine ComboHQ500 Multi-purpose Mill Lathe and Milling Machine Combo
C series Lathe MachineCA Series Lathe Machine
HQ500 Multi-purpose Mill Lathe and Milling Machine ComboHQ500 Multi-purpose Mill Lathe and Milling Machine Combo
CJM320B Mini Lathe MachineCW6180E Lathe Machine
Company Profile

HQ500 Multi-purpose Mill Lathe and Milling Machine Combo





Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.



Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .



HQ500 Multi-purpose Mill Lathe and Milling Machine Combo

Certificate

HQ500 Multi-purpose Mill Lathe and Milling Machine Combo

FAQ

HQ500 Multi-purpose Mill Lathe and Milling Machine Combo



1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .


2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .



3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.



4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.



5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .



5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
