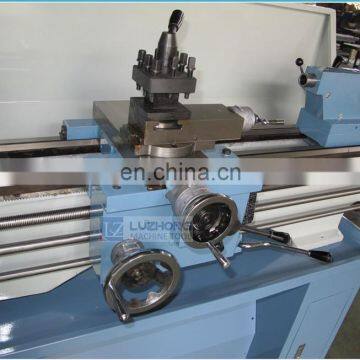

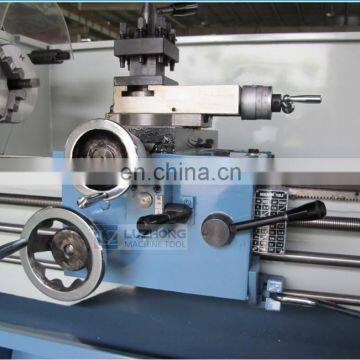

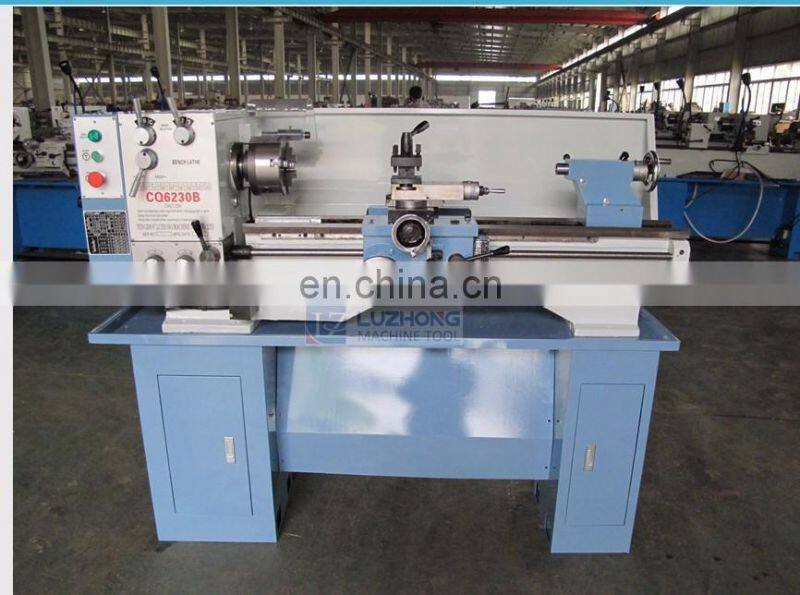

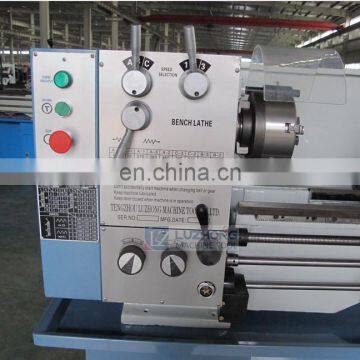

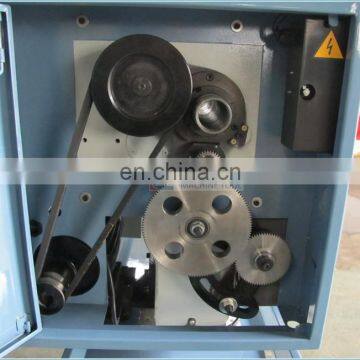

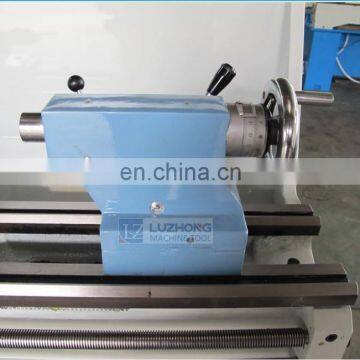

Mini Lathe Machine CQ6230B/CQ6232B Bench Lathe Machine For Sale
Product main technical Specifications:
Specifications | CQ6230B | CQ6232B |
Max .Swing over bed | 300mm | 320mm |
Max .Swing over cross slide | 180mm | 198mm |
Max .Swing in gap | 430mm | 476mm |
Max. distance between center | 750/910/1000mm | 750/910/1000mm |
Spindle bore | 38mm | 38mm |
Taper of spindle bore | M.T.5 | M.T.5 |
Range of spindle speed | 65~1400rpm | 65~1810rpm |
Range of longitudinal feeds | 0.079~1.291mm/rev. | 0.079~1.291mm/rev. |
Range of cross feeds | 0.017~0.276mm/rev. | 0.017~0.276mm/rev. |
Range of metric threads | 0.4~7mm | 0.4~7mm |
Range of inch threads | 4~60TPI | 4~60TPI |
Max. size of tool shank | 16×16mm | 16×16mm |
Taper of tailstock bore | M.T.3 | M.T.3 |
Power of main motor | 1.1/1.5kw | 1.1/1.5kw |
Unitary packing size | 1680×750×1400mm | 1680×750×1400mm |
Asunder packing size | 1680×750×750mm | 1680×750×750mm |
Left stand packing size | 690×400×370mm | 690×400×370 mm |
Right stand packing size | 690×400×300 mm | 690×400×300 mm |
Gross weight | 430kg | 450kg |
Net weight | 480kg | 490kg |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprisewith glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
"THE BEST QUALITY ,CREATED BY LUZHONG"
All of our machines are subject to strict quality control.Especially in the production process.
The Machines like lathe machine , cnc lathe machine ,cnc milling machine , cnc turning center ,Radial drilling machines, drilling milling machines ... ... have production lines as below:
1.High strength Casting making .
2.Processing production.
3.High precision quenching process.
4.Assembling process.
5.Spray paint process.
6.And also the finished product come out .
Our Company Tengzhou Luzhong Machine Tool Co.,Ltd has the certifications as :CE ,ISO ,SGS ,TUV ,SONCAP certificates and on on .
In the past years , we joint the machine exhibition every year .We have experiences in servicing customers for over 20 years .
1.Why choose us ?
We are a cnc machine manufacturer can provide the high quality, competitive price and good after-sale service.
We have our own technical team, can provide the customized solutions according to your request( your workpieces ,Your drawings and so on)
We go the full 24-hour performance and accuracy test before shipment.
2.What machines can be available in your factory?
We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. Milling Machines.CNC Milling Machines.CNC Machining Center , Drilling Machines ,Slotting Machines and sawing machines and so on .
3.What certifications you have ?
We have certifications like:CE certifications
CO certifications
ISO certifications and also CIQ certifications and so on .
4.What payment terms you can accept?
Mostly using TT.
But LC also available
5.What services you can offer ?
Warranty for one year .
English manual and video for machine using and maintenance.
OEM,ODM is available in our factory.
24 hours online technical service
Engineers available to service machinery overseas
Free customers training in our plant.
