Small Metal Lathe CZ1224G CZ1324G Mini Hobby Lathe Machine

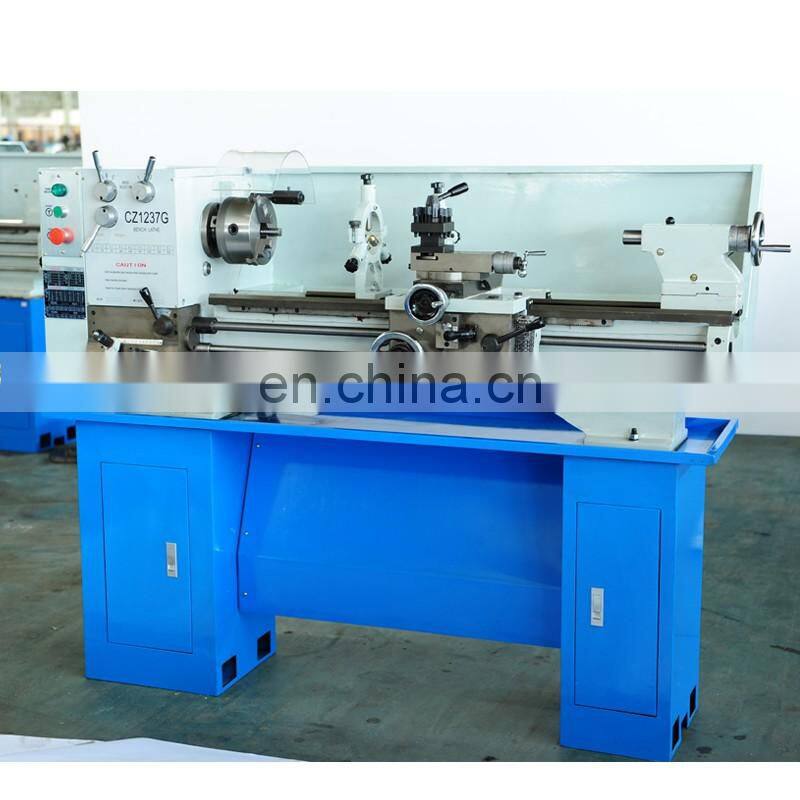

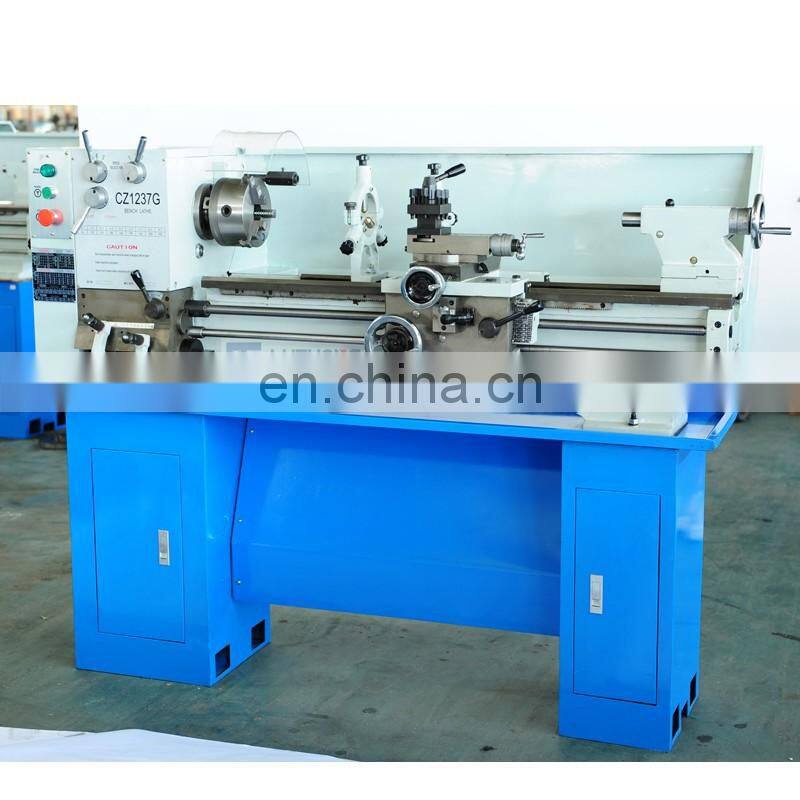

Small Metal Lathe CZ1224G CZ1324G Mini Hobby Lathe Machine photo-1

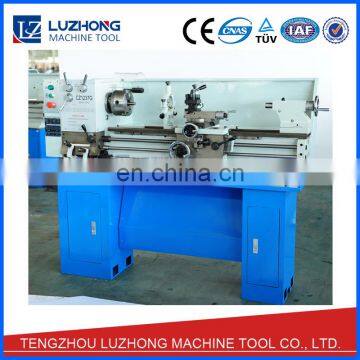

Small Metal Lathe CZ1224G CZ1324G Mini Hobby Lathe Machine photo-2

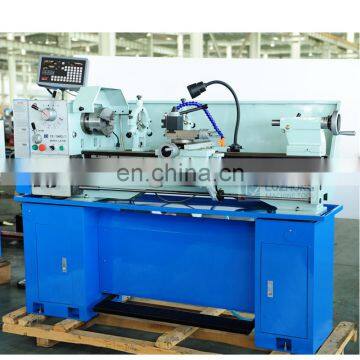

Small Metal Lathe CZ1224G CZ1324G Mini Hobby Lathe Machine photo-3

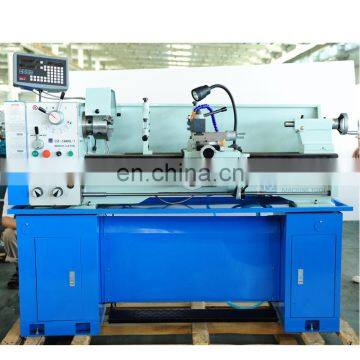

Small Metal Lathe CZ1224G CZ1324G Mini Hobby Lathe Machine photo-4

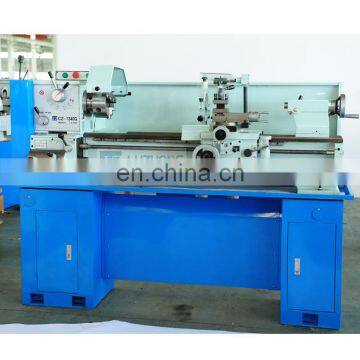

Small Metal Lathe CZ1224G CZ1324G Mini Hobby Lathe Machine photo-5
US$ 2,100 - 2,360 MOQ: 5 Sets
Key Specifications
Get Latest Price
Brand Name:
Luzhong Machine
Place of Origin:
Shandong, China
Model Number:
CZ1224G CZ1324G
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China Small Metal Lathe CZ1224G CZ1324G Mini Hobby Lathe Machine
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Luzhong Machine
Place of Origin Shandong, China
Model Number CZ1224G CZ1324G
After-sales Service Provided Engineers available to service machinery overseas
Condition New
Product Description

Small Metal Lathe CZ1224G CZ1324G Mini Hobby Lathe Machine

 Small Metal Lathe CZ1224G CZ1324G Mini Hobby Lathe MachineSmall Metal Lathe CZ1224G CZ1324G Mini Hobby Lathe MachineSmall Metal Lathe CZ1224G CZ1324G Mini Hobby Lathe MachineSmall Metal Lathe CZ1224G CZ1324G Mini Hobby Lathe Machine

Small Metal Lathe CZ1224G CZ1324G Mini Hobby Lathe Machineine

The main performance characteristics:



1.Engineered from high grade castings

2.V way bed ways induction hardened and ground

3.Gap bed

4.Cross and longitudinal interlocking feed, enough safety

5.Inching switch for test running

6.Metric/Imperial threading available

7.Precise gear-driven headstock





Product main technical parameters:

Specifications



CZ1224 G

CZ1324G

Swing over bed

mm

305

330

Swing over carriage

mm

173

195

Swing over gap

mm

440

465

Width of bed-way

mm

182

Distance between centers

mm

530

Spindle taper



MT5

Spindle bore

mm

38

Step of speed



9

Range of speed

rpm

64-1500

Metric thread

mm

Closed box:11kinds(0.5~43.5)

Norton box:15kinds(0.25~47.5)

Inch thread

T.P.I

Closed box:14kinds(7-1/2~48)

Norton box:40kinds(4~112)

Range of feed amount

Mm/r

Closed box:0.051~0.303(0.002’’-0.012’’)

Norton box:0.12~0.42(0.0047’’-0.0165’’)

Diameter of lead screw

mm

22(7/8’’)

Pitch of lead screw



3mm or 8 T.P.I

Saddle travel

mm

510

Cross travel

mm

150

Compound travel

mm

85

Barrel travel

mm

95

Barrel diameter

mm

32

Taper of center

mm

MT3

Motor power

Kw

1.1(1.5HP)

Motor for coolant system’s power

Kw

0.04(0.055HP)

Machine(L×W×H)

mm

1420x750x760

Stand (left)(L×W×H)

mm

400x370x700

Stand (right)(L×W×H)

mm

300x370x700

Machine

Kg

380/430
