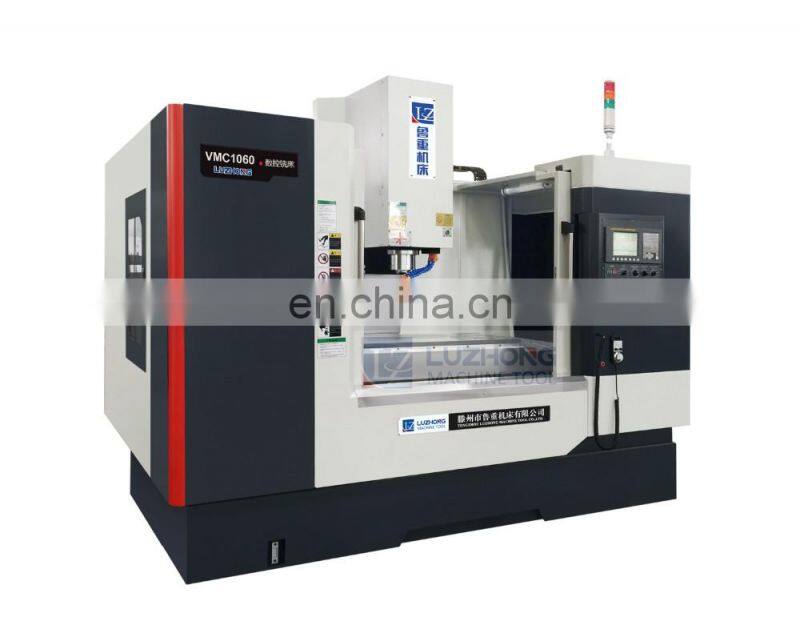

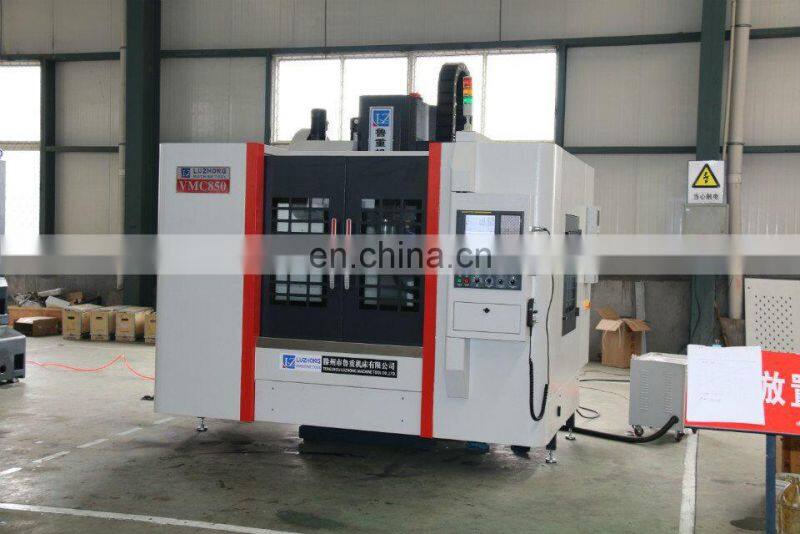

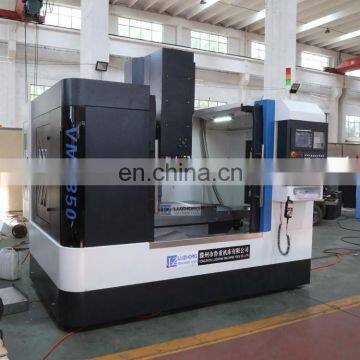

Fanuc VMC VMC1060 VMC Machine Taiwan
Product configuration:
Standard configuration:

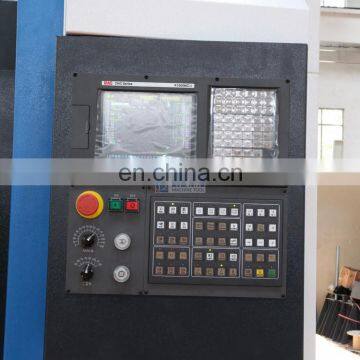

1.The CNC system: FANUC 0i mate MD
2.The high quality castings: Resin sand casting

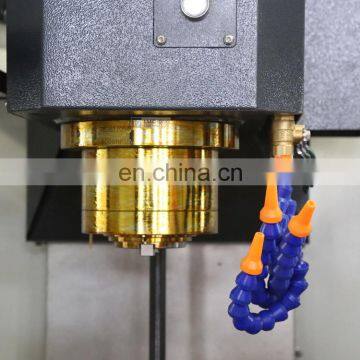

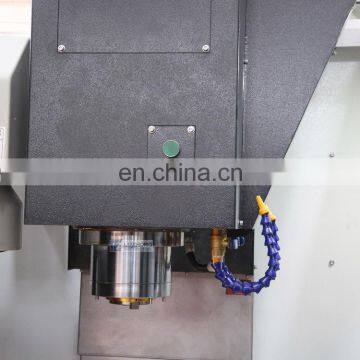

3.The spindle: Taiwan famous high speed spindle
4.The screw: HIWIN
5.The knife: The famous Taiwan bamboo hat knife.
6.The unclamping cylinder: Taiwan Shang product
7.The weight: Wuxi co Qing nitrogen balance
8.The bearing: Japan NTN
9.The Internal protection: Total protection
Select the configuration:
1.M70B/M70A Mitsubishi
2.The CNC dividing head
3.NC rotary table
4.The chip cleaner

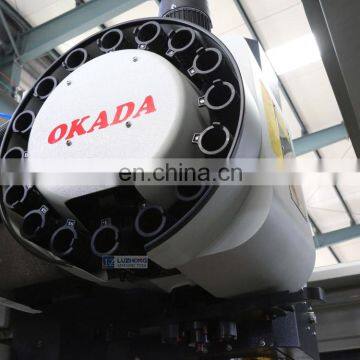

5.The taiwan famous brand manipulator knife storehouse
The main performance characteristics:
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting
3.The pre tension precision ball screw drive
4.The high speed, high precision, high rigidity spindle unit
5.The design of oil-water separation
6.The intermittent automatic lubrication
7.Automatic scraping knife system
Application:
This machine tool is suitable for machining and machining center, which can be used in the field of machining. It can be used to finish milling, drilling, tapping, boring and so on.
Product main technical parameters:
ITEM |
UNIT |
VMC1060 |
X-axis travel |
mm |
1200 |
Y-axis travel |
mm |
600 |
Z-axis travel |
mm |
600 |
Table size |
mm |
1400×600 |
Maximum table load |
kg |
800 |
T-slot (slot number×width×pitch) |
mm |
5-18-100 |
Spindle power |
kw |
7.5/11 |
Maximum spindle speed |
rpm |
8000 |
Rapid traverse (X/Y/Z) |
mm/min |
18000 |
Cutting feed |
mm/min |
1-6000 |
Spindle nose to table |
mm |
140-740 |
Spindle center to column surface distance rail |
mm |
650 |
Maximum tool diameter |
mm |
Φ130 |
Maximum tool length |
mm |
300 |
Maximum tool weight |
kg |
8 |
Positioning accuracy |
mm |
±0.008 |
Repeat accuracy |
mm |
±0.0075 |
Machine weight |
kg |
7200 |
Dimensions |
mm |
4400×2480×2960 |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprisewith glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
"THE BEST QUALITY ,CREATED BY LUZHONG"
All of our machines are subject to strict quality control.Especially in the production process.
The Machines like lathe machine , cnc lathe machine ,cnc milling machine , cnc turning center ,Radial drilling machines, drilling milling machines ... ... have production lines as below:
1.High strength Casting making .
2.Processing production.
3.High precision quenching process.
4.Assembling process.
5.Spray paint process.
6.And also the finished product come out .
Our Company Tengzhou Luzhong Machine Tool Co.,Ltd has the certifications as :CE ,ISO ,SGS ,TUV ,SONCAP certificates and on on .
In the past years , we joint the machine exhibition every year .We have experiences in servicing customers for over 20 years .
1.Why choose us ?
We are a cnc machine manufacturer can provide the high quality, competitive price and good after-sale service.
We have our own technical team, can provide the customized solutions according to your request( your workpieces ,Your drawings and so on)
We go the full 24-hour performance and accuracy test before shipment.
2.What machines can be available in your factory?
We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. Milling Machines.CNC Milling Machines.CNC Machining Center , Drilling Machines ,Slotting Machines and sawing machines and so on .
3.What certifications you have ?
We have certifications like:CE certifications
CO certifications
ISO certifications and also CIQ certifications and so on .
4.What payment terms you can accept?
Mostly using TT.
But LC also available
5.What services you can offer ?
Warranty for one year .
English manual and video for machine using and maintenance.
OEM,ODM is available in our factory.
24 hours online technical service
Engineers available to service machinery overseas
Free customers training in our plant.
