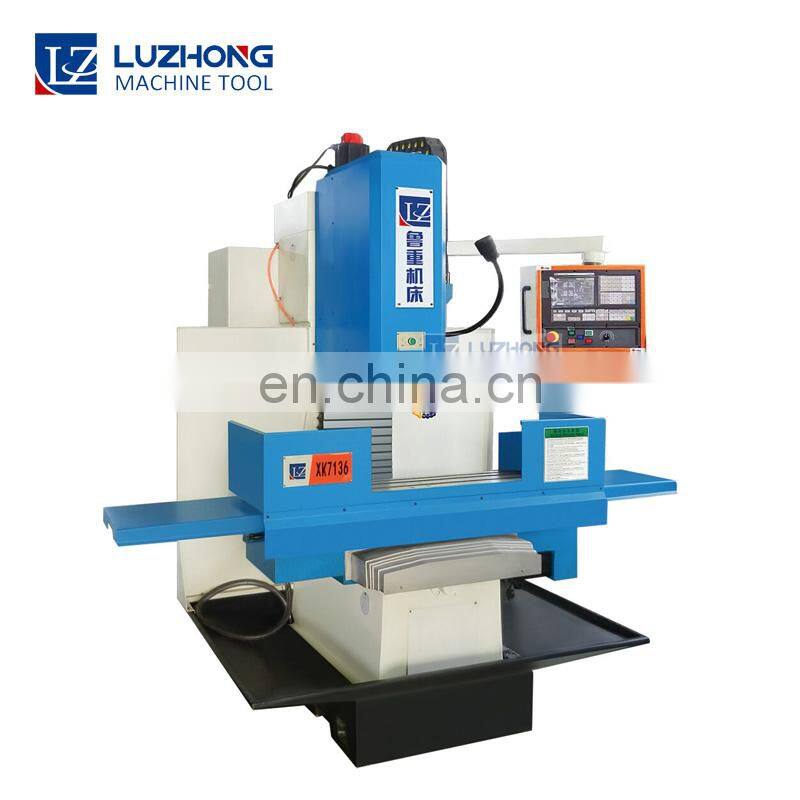

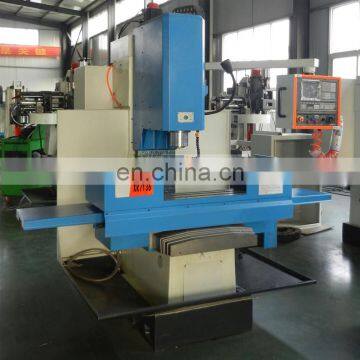

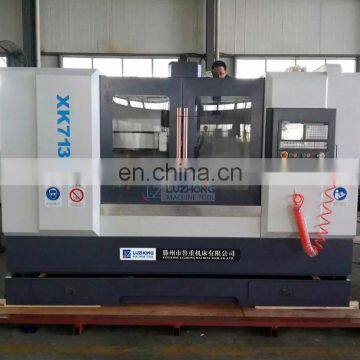

XK7136 CNC milling machines specifications mini cnc mill
- 100 Set / Sets per Month
- Any port in china
- T/T Credit Card
- Metal Vertical XKA7150 CNC Bed-type Milling Machine price
- Metal Hobby XK5040 CNC Vertical Milling Machine for sale
- Vertical Machine Center XK7126 CNC Milling Machine price
- Precision Mini Milling Machine XK7124 Cnc Milling Machine
- Milling Cnc Machines Metal XK7125 Hobby Mini Cnc Milling Machine
- hobby cnc milling machine XK7136 milling machines cnc
Product Details
Brand Name: | Luzhong Machine Tool | Place of Origin: | Shandong, China | Type: | Vertical |
Certification: | ISO CE | After-sales Service Provided: | No overseas service provided | Warranty: | 1 Year |
Weight: | 2200kg | Dimension(L*W*H): | 2200*1650*2200mm | Voltage: | 220V/380V |
Condition: | New | Power(W): | 5.5kw |
Product Description
XK7136 CNC milling machines specifications mini cnc mill
Standard configuration:
1.The CNC system: KND,GSK,Fanuc and etc.
2.The knife: The famous Taiwan tools changer
3.The unclamping cylinder: Taiwan Shangpin
4.The weight: Wuxi Xieqing nitrogen balance
5.The high quality castings: Resin sand casting
6.The spindle: Taiwan famous high speed spindle
7.The screw: HIWIN
8.The bearing: Japan NTN
9.The Internal protection: Total or half protection
Select the configuration:
1.M70B/M70A Mitsubishi FANUC 0i mate MD
2.The CNC dividing head
3.The taiwan famous brand manipulator knife storehouse
4.NC rotary table
5.The chip cleaner
6.The fourth axis
7.The fifth axis
The main performance characteristics:
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting
3.The pre tension precision ball screw drive
4.The high speed, high precision, high rigidity spindle unit
5.The design of oil-water separation
6.The intermittent automatic lubrication
7.Automatic scraping knife system
Application:
The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.
Product main technical specifications:
Specifications | Unit | XK7136 |
Table size | mm | 1250×360 |
Table maximum load | kg | 300 |
T slot(number-width-pitch) |
| 3-18-80 |
X axis travel | mm | 900 |
Y axis travel | mm | 350 |
Z axis travel | mm | 500 |
Distance from spindle axis to column surface | mm | 460 |
Distance between spindle nose and worktable | mm | 100-600 |
X/Y rapid traverse | m/min | 10 |
Z rapid traverse | m/min | 8 |
Cutting feed | Mm/min | 1-2000 |
Max.spindle speed | rpm | 8000 |
Spindle taper |
| BT40 |
Main motor power | kw | 5.5 |
Tools type |
| Armless type |
Machine dimension | mm | 2220x1850x2350 |
Machine weight | kg | 2200 |
CNC machining center vmc-650 | VMC 850 machining center CNC VMC |
Gantry type milling machining center cnc | Horizontal Chinese Machining center |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history . Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
