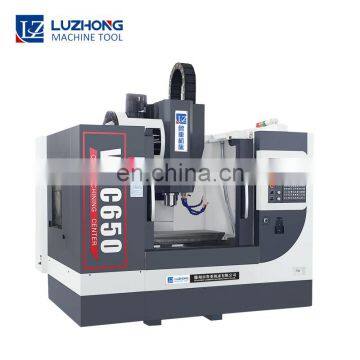

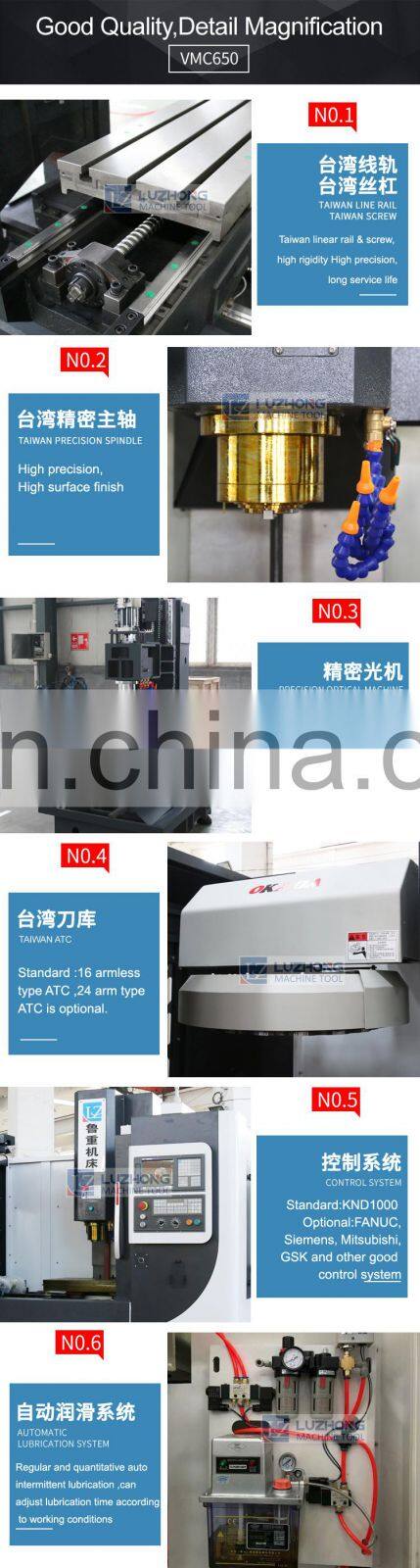

Vertical Machining Center VMC650 5 Axis CNC china cnc milling machine

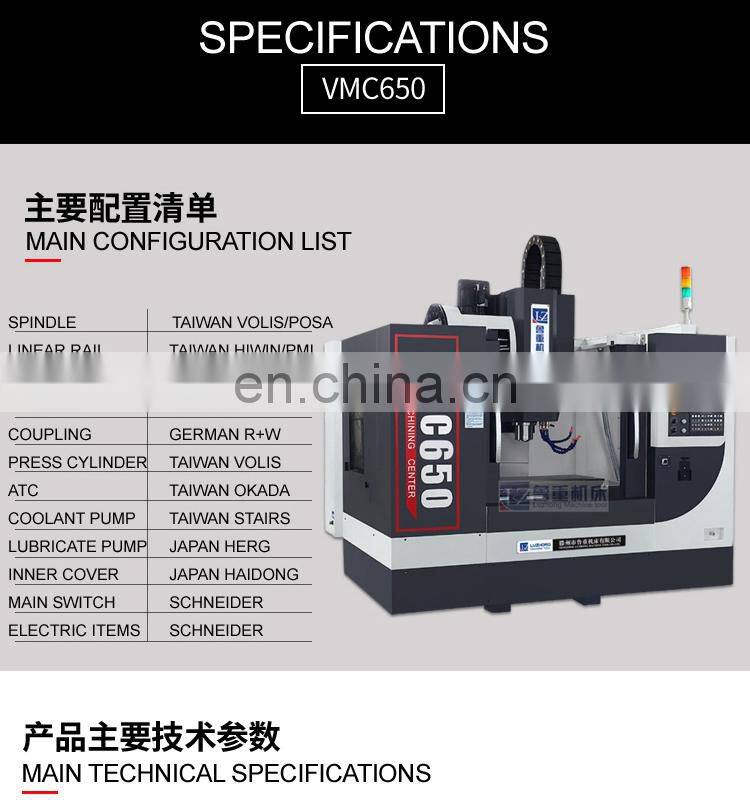

Product main technical specifications:
specifications |
unit |
VMC650 |
Table size |
mm |
800x400 |
X axis travel |
mm |
650 |
Y axis travel |
mm |
400 |
Z axis travel |
mm |
500 |
|
Distance between spindle center and column surface |
mm |
469 |
|
Distance between spindle nose and table surface |
mm |
100-600 |
T slot |
|
3-18*125 |
Spindle taper |
mm |
BT40 |
Max. spindle speed |
r/min |
8000(10000 optional) |
Main motor power |
kw |
5.5 |
X/Y/Z axis servo motor torque |
N.M |
10/10/15 |
X/Y/Z motor connection |
|
direct |
X/Y/Z guide rail form |
|
3 axis linear guide rail |
Max.table load |
kg |
450 |
Automatic tools changer |
|
16 Armless type(optional:24 arm type) |
Max.tool weight |
kg |
7 |
Max. tool length |
mm |
250/350 |
Max. tool diameter |
mm |
100(Adjacent)/150(Apart) |
X/Y/Z axis rapid traverse |
M/min |
24(optional :48) |
Cutting feed speed |
M/min |
10 |
Position accuracy |
mm |
±0.005 |
Repeat positioning accuracy |
mm |
±0.003 |
Machine dimension |
mm |
2400x2000x2550 |
Machine weight |
kg |
4000 |
|
|
|
| CNC machining center vmc-650 | VMC 850 machining center CNC VMC |
|
|
| Gantry type milling machining center cnc | Horizontal Chinese Machining center |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history . Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
Machine Model: Chinese High speed 3 Axis Cnc Machine Center VMC650/CNC vertical machining center

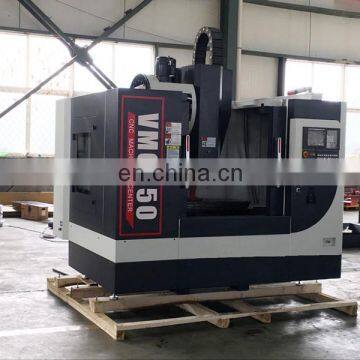

Packaging size:2300*2200*2400mm (one set in one case)
N.W./G.W.: 4500KG
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
