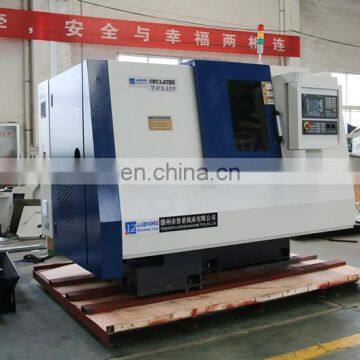

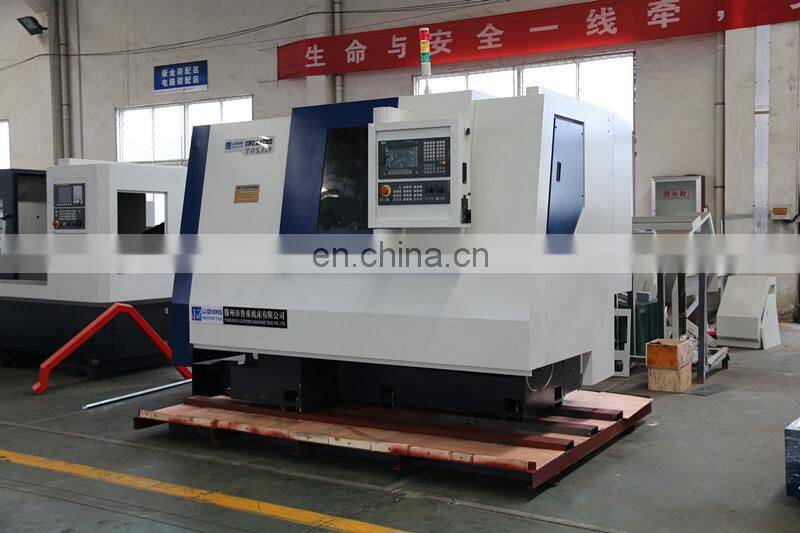

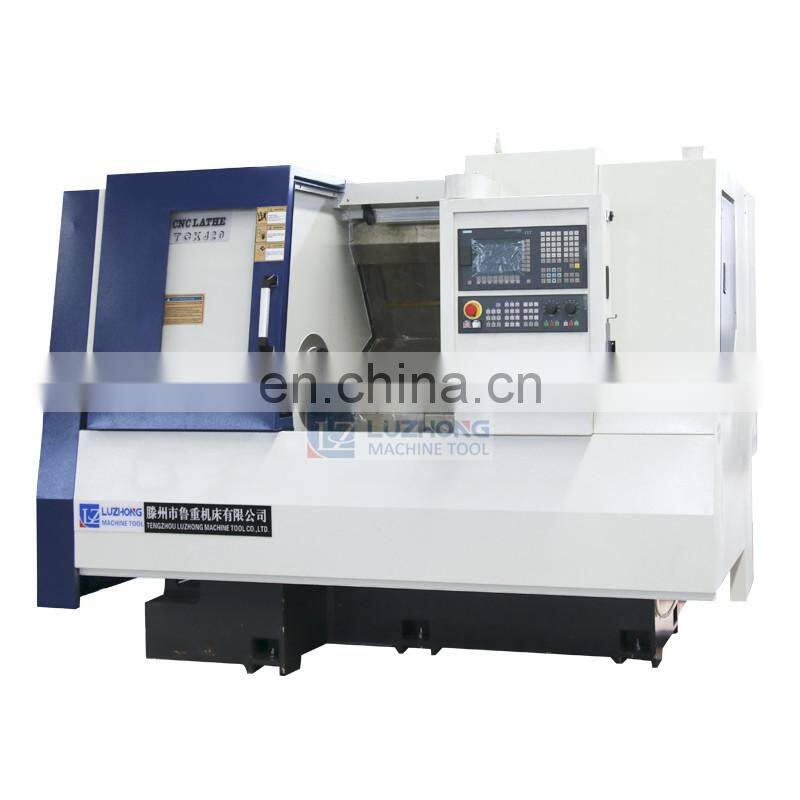

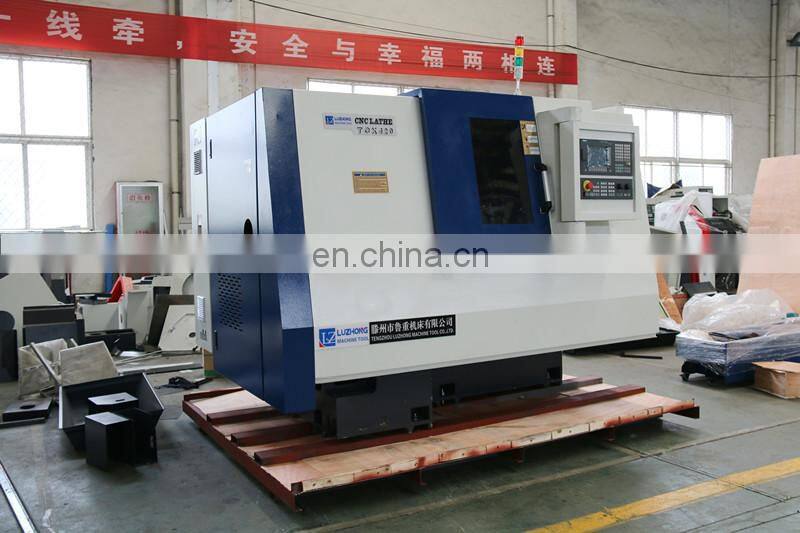

Automatic Cheap TCK420 Turning Center Slant Bed CNC Lathe Machine
Product main features and uses:

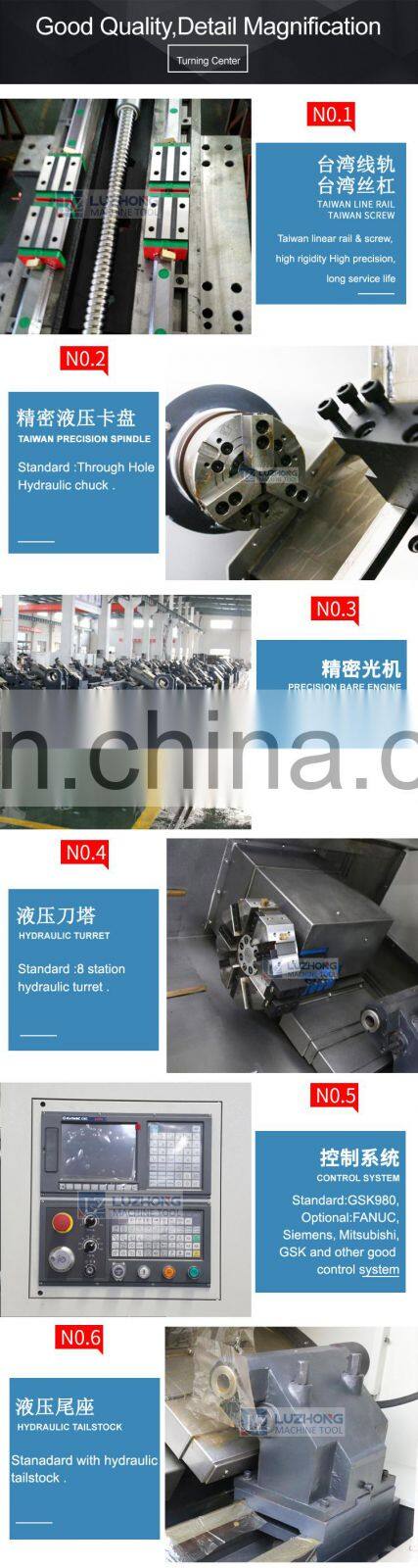

This is a high speed, high accuracy, high reliability of slant bed lathe spindle structure as a unit, motor speed by multi wedge belt movement to the main spindle, can achieve the highest speed, work piece clamping selection of hydraulic chuck, clamping is more convenient because of the, precision is high, operation is more labor-saving, spindle bearing structure by 2 after a total of 5 2 angular contact bearings, both high-speed and high rigidity. The machine tool adopts 30 degrees sliding saddle, linear guide, rigid, feed fast, easy to discharge. X and Z to the screw are arranged evenly in the hands of the middle plate, smooth movement, speed, 8 station hydraulic turret tool change fast and steady, high precision, can choose the nearest knife, installed capacity tool hydraulic tailstock, ease of operation; closed protection, no oil leakage of leakage, both green and beautiful.
Product main specifications:
Specification |
Unit |
TCK420 |
Standard chuck |
|
8” |
Maximum screw diameter |
mm |
420 |
Max. machining diameter |
mm |
300 |
Max. work piece length |
mm |
400 |
Spindle tube diameter |
mm |
50 |
Positioning accuracy |
mm |
0.01 |
Repositioning accuracy |
mm |
±0.003 |
X Travel |
mm |
180 |
Z Travel |
mm |
400 |
Spindle speeds |
rpm |
3500 |
Spindle speed step |
|
Continuously |
Spindle nose |
|
A2-6 |
Spindle bore |
mm |
66 |
Spindle motor power |
K w |
5.5 |
Knife tower working digit |
|
8 Station |
The tool body size |
mm |
20*20 |
Boring bar diameter |
mm |
32 |
Tailstock travel |
mm |
350 |
Tailstock taper |
|
MT4 |
Tailstock sleeve travel |
mm |
90 |
Fast feed speed |
m/min |
15 |
Cutting feed speed |
mm/min |
1-15000 |
Total power supply capacity |
K v a |
11 |
Air pressure requirement |
M pa/I/min |
0.5/100 |
Cutting water tank capacity |
L |
90 |
Machine dimensions(L*W*H) |
mm |
2300*1500*1650 |
Weight |
kg |
3000 |
|
|
