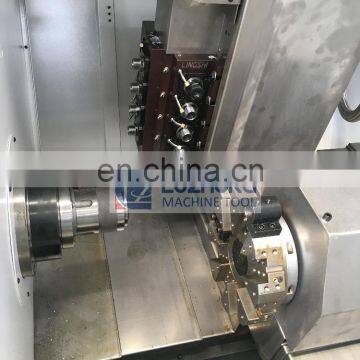

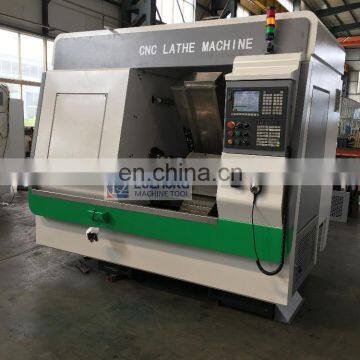

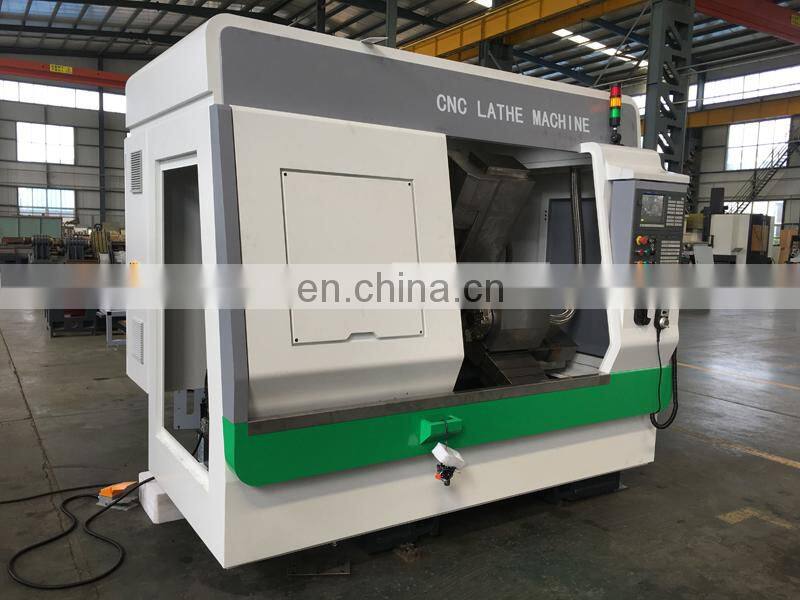

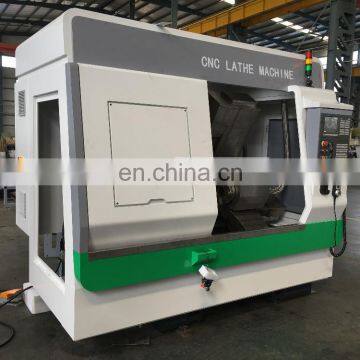

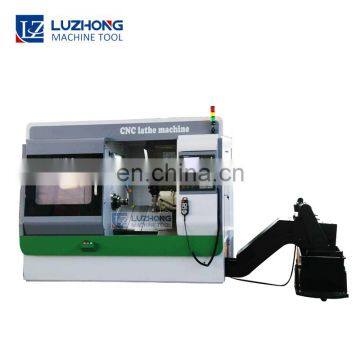

combination lathe milling SCK46D-8 lathe mill drill combo machine
Product main technical specifications:
Specifications | Units | SCK46D-8 |
Max.swing over bed | mm | 450 |
Max. Swing over cross slide | mm | 130 |
Max. Processing length | mm | 450 |
Cross slide length | mm | 780 |
Lathe bed straucture |
| 30° integral inclined lathe |
Distance between cross slide and spindle axis | mm | 80 |
Spindle nose |
| A2-5 |
Spindle (C axis )speed range | R/min | 50-4500 |
Milling head |
| (side)4 (nose)4 |
Milling head power | kw | 2.3 |
Milling head speed | R/min | 3000 |
Distance of each milling head | mm | 60 |
X axis travel | mm | 500 |
Z axis trave | mm | 450 |
Y axis trave | mm | 240 |
Turret type |
| 8 station hydraulic chuck,4+4 milling head |
X rapid traverse | Mm/min | 24000 |
Y rapid traverse | Mm/min | 24000 |
Z rapid traverse | Mm/min | 15000 |
X/Z axis positioning accuracy | mm | 0.006 |
X/Z axis repositioning accuracy | mm | 0.003 |
Spindle (C axis)dividing positioning accuracy | mm | 0.02’’(70 arc-seond) |
Spindle (C axis)dividing repositioning accuracy | mm | 0.006’’(20 arc-seond) |
Machine dimension(LxWxH) | mm | 2500x1800x1800 |
Net weight | Kg | 3000 |
| | |
| CK6136 CK6140 CNC Lathes | SCK6339 Slant Bed CNC Lathe | SCK46D-8 CNC Turning Center |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprisewith glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
"THE BEST QUALITY ,CREATED BY LUZHONG"
All of our machines are subject to strict quality control.Especially in the production process.
The Machines like lathe machine , cnc lathe machine ,cnc milling machine , cnc turning center ,Radial drilling machines, drilling milling machines ... ... have production lines as below:
1.High strength Casting making .
2.Processing production.
3.High precision quenching process.
4.Assembling process.
5.Spray paint process.
6.And also the finished product come out .
Our Company Tengzhou Luzhong Machine Tool Co.,Ltd has the certifications as :CE ,ISO ,SGS ,TUV ,SONCAP certificates and on on .
In the past years , we joint the machine exhibition every year .We have experiences in servicing customers for over 20 years .
