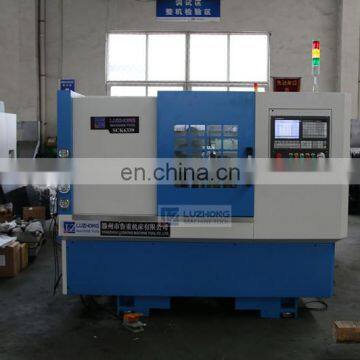

High Precision Turning center TCK6336 Micro slant bed CNC lathe for sale
Product main features and uses:
This machine is suitable for automobile, motorcycle, electron. Aerospace, military, oil and other industries. For rotary parts of conical surface, circular arc surface, surface and various inch screw thread, volume, high, high precision automatic processing by 45 degrees high rigidity of the whole bed, large torque of the spindle, the Taiwan rail line, ensure that the machine is high rigidity, near the center of the spindle operator, workpiece loading and unloading more convenient.
Product main technical specification:
Specification |
Unit |
TCK6336 |
Maximum screw diameter |
mm |
390 |
Max.swing over cross slide |
mm |
130 |
piece length |
mm |
200 |
X/z travel |
mm |
400/300 |
Spindle unit |
mm |
Φ140/Φ170 |
Spindle nose |
|
A2-5 |
Spindle bore |
mm |
Φ48/Φ56 |
Spindle drawn tube diameter |
mm |
Φ40/Φ45 |
Spindle speeds |
rpm |
4000/3500 |
Chuck size |
in |
6/8 |
Spindle motor |
kw |
3.7/5.5 |
X/Z axis Positioning accuracy |
mm |
0.016/0.016 |
X/Z axis repeatability |
mm |
0.006/0.006 |
X/Z feed motor torque |
N.m |
6/6 |
X/Z feed motor power |
kw |
1.5 |
X/Z fast feed speed |
m/min |
18/15 |
Tool post type |
|
Gang type tool post |
The tool body size |
mm |
20*20 |
Guide form |
|
Integral type 45° |
Total power capacity |
KVA |
9/11 |
Machine dimensions(L*W*H) |
mm |
2200*1340*1710 |
N.W. |
kg |
2500 |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
