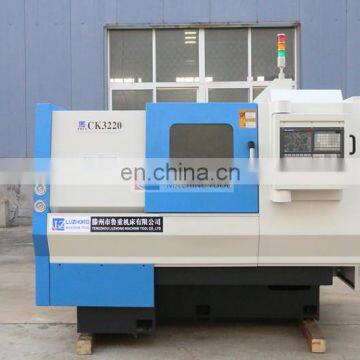

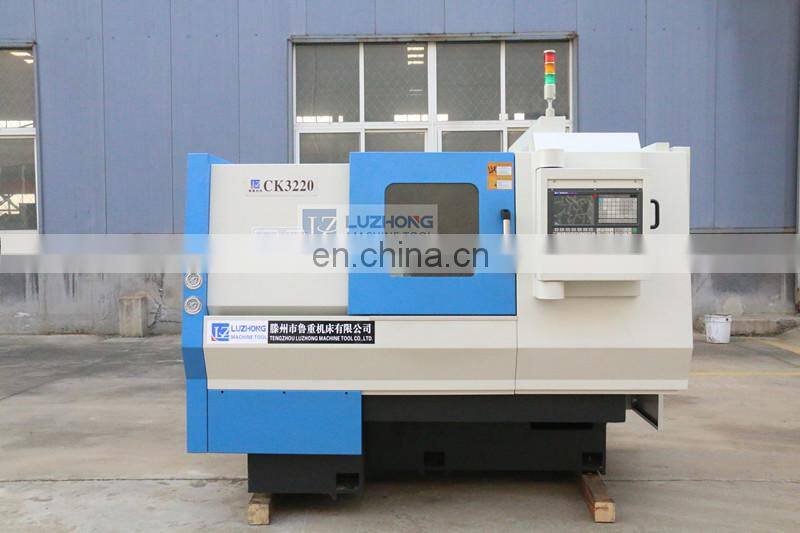

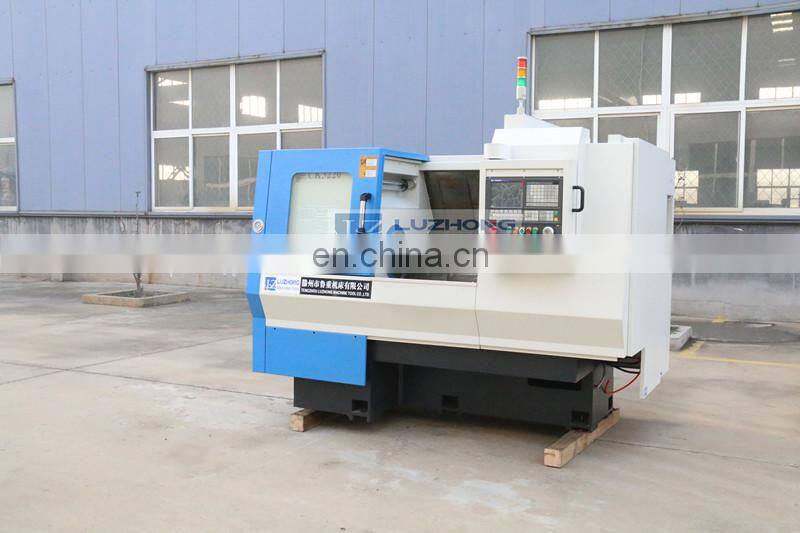

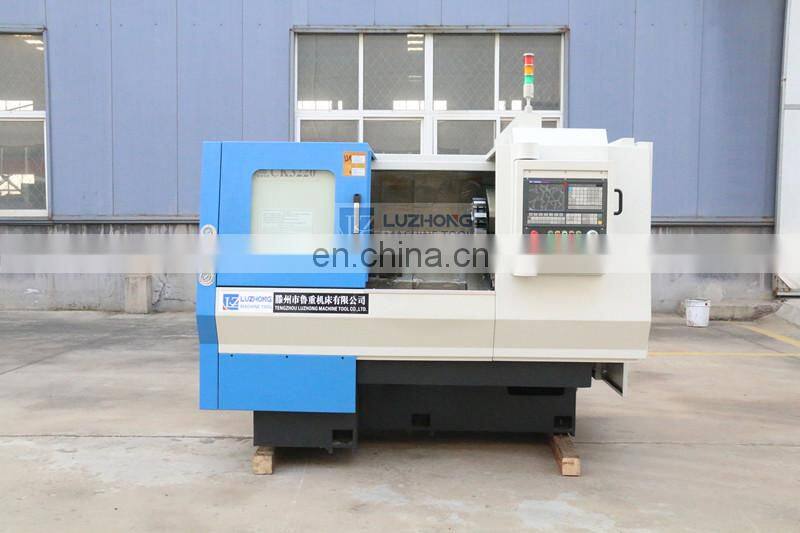

CK3220 CNC Turning Center Price Specifications Slant Bed CNC Lathe Machine
Product main features and uses:
This is a high speed, high accuracy, high reliability of slant bed lathe spindle structure as a unit, motor speed by multi wedge belt movement to the main spindle, can achieve the highest speed, work piece clamping selection of hydraulic chuck, clamping is more convenient because of the, precision is high, operation is more labor-saving, spindle bearing structure by 2 after a total of 5 2 angular contact bearings, both high-speed and high rigidity. The machine tool adopts 30 degrees sliding saddle, linear guide, rigid, feed fast, easy to discharge. X and Z to the screw are arranged evenly in the hands of the middle plate, smooth movement, speed, 8 station hydraulic turret tool change fast and steady, high precision, can choose the nearest knife, installed capacity tool hydraulic tailstock, ease of operation; closed protection, no oil leakage of leakage, both green and beautiful.
Features:
Taiwan higher accuracy linear guide ways
Taiwan ball screw
Hydraulic magazine
Taiwan hydraulic chuck
Hydraulic tailstock
Taiwan hollowed rotary cylinder
Product main specifications:
Specification |
Unit |
CK3220 |
Max.swing over bed |
mm |
420 |
Max.swing over cross slide |
mm |
200 |
cessing length |
mm |
400 |
X/Z axis max.travel |
mm |
160/400 |
Spindle nose |
|
A2-6 |
Spindle bore |
mm |
66 |
Bar capacity |
mm |
50 |
Max.spindle speed |
rpm |
3000 |
Chuck |
in |
8 |
Spindle motor power |
kw |
5.5 |
X/Z axis repeatability |
mm |
+/-0.003 |
X/Z axis feed motor torque |
N.M |
5/7.5 |
X/Z rapid traverse |
M/min |
12 |
Tailstock travel |
mm |
350 |
Quill travel |
mm |
90 |
Tailstock taper |
|
MT4 |
Tool post type |
mm |
8 station hydraulic turret |
Tool post size |
mm |
20x20 |
Guide form |
|
30° degree |
Guide rail movement way |
|
Linear guide rail |
Total power capacity |
KVA |
11 |
Machine dimensions(L*W*H) |
mm |
2300*1500*1650 |
Weight |
kg |
3000 |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
