VMC550 650 850 1060 5 Axis CNC Vertical Machining Center
- 100 Set / Sets per Month
- Any port in China
- T/T Credit Card
- XH2320 CNC Gantry Milling Machine Fixed-colum Gantry Machining Center
- XH7125 Low Cost 3 Axis CNC Milling Machine with Price
- 4 Axis CNC Milling Machine VMC850 CNC Vertical Machining Center
- Precision CNC Milling Machine XH7145 CNC Vertical Machining Center Price
- 5 Axis Vertical Machining Center XH7132 Used CNC Vertical Machining Center
- Mini CNC Machine Center XH7125 CNC Milling Machine With ATC Price
Product Details
Brand Name: | Luzhong Machine Tool | Place of Origin: | Shandong, China | Type: | Vertical |
Certification: | CE ISO | After-sales Service Provided: | No overseas service provided | Warranty: | 1 Year |
Weight: | 5500kg | Dimension(L*W*H): | 2800x2250x2560mm | Voltage: | 220V/380V |
Condition: | New | Power(W): | 3.7/7.5/11kw |
Product Description

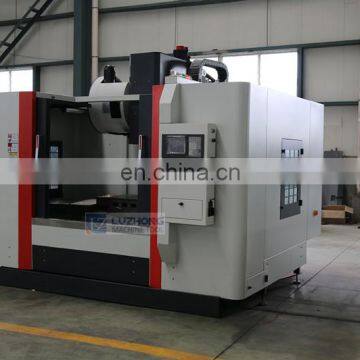

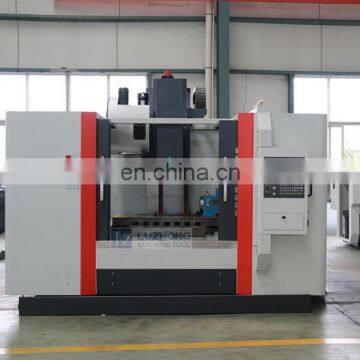

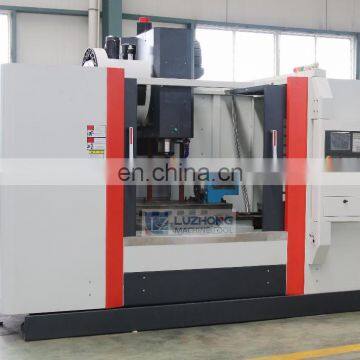

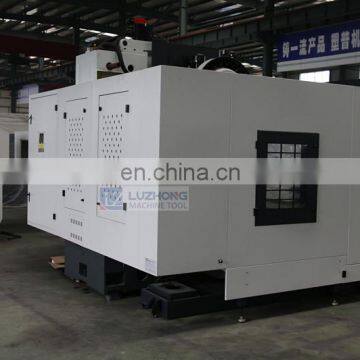

VMC550 650 850 1060 5 Axis CNC Vertical Machining Center
Features:
High quality resin sand

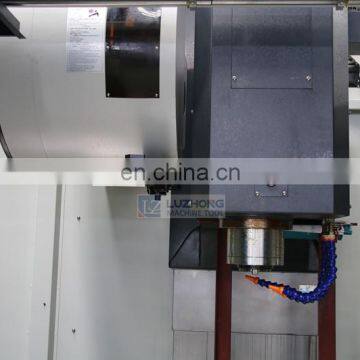

Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Product main technical specifications:
specifications | unit | VMC550 | VMC650 | VMC850 | VMC1060 |
Table size | mm | 700X350 | 900x400 | 1050x500 | 1300x600 |
Table maximum load | kg | 300 | 450 | 600 | 800 |
X/Y/Z axis travel | mm | 550X350X500 | 650x400x500 | 800x500x550 | 1000x600x600 |
Distance between spindle center and column surface | mm | 419 | 476 | 550 | 600 |
Distance between spindle end face and worktable surface | mm | 100-600 | 100-600 | 105-655 | 180-780 |
X/Y/Z max. feed speed | mm/min | 10000 | 10000 | 10000 | 10000 |
X/Y/Z max.rapid traverse | m/min | 20/20/15 | 24/24/20 | 20/20/15 | 20/20/15 |
Max. spindle speed | r/min | 8000 | 8000 | 8000 | 8000 |
Spindle taper |
| BT40 | BT40 | BT40 | BT40 |
Spindle motor | kw | 3.7/5.5 | 5.5/7.5 | 7.5/11 | 11/15 |
X/Y/Z axis servo motor | kw | 1.0/1.0/1.5 | 1.0/1.0/1.5 | 2.0/2.0/2.0 | 2.5/2.5/2.5 |
X/Y/Z motor connection |
| direct | direct | direct | direct |
X/Y/Z guide rail form |
| Linear guide rail | 2 axis linear guide rail ,1 axis hard rail | Hard rail | Hard rail |
T slot (number-width-pitch) |
| 3-18-105 | 3-18-125 | 5-18-90 | 5-18-120 |
Repeat positioning accuracy | mm | ±0.004 | ±0.004 | ±0.004 | ±0.004 |
Tools type |
| Armless/arm | Armless/arm | Armless/arm | Armless/arm |
Tool magazine capacity |
| Armless:12/ arm:16 | Armless:16/ arm:16 | Armless:16/ arm:24 | Armless:16/ arm:24 |
Max.tool weight | kg | 7 | 7 | 8 | 8 |
Max. tool length | mm | 250/350 | 250/350 | 250/350 | 250/350 |
Electric capacity | KVA | 8 | 10 | 11 | 16 |
Machine dimension | mm | 2380X1950 X2300 | 2300x2200 x2400 | 2880x2450 x2700 | 3340x2800 x2700 |
Machine weight | kg | 3200 | 4500 | 6000 | 7000 |
VMC650 Vertical Machining Center | VMC850 Vertical Machining Center |
VMC1370 Vertical Machining Center | XH2308 Gantry Machining Center |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
