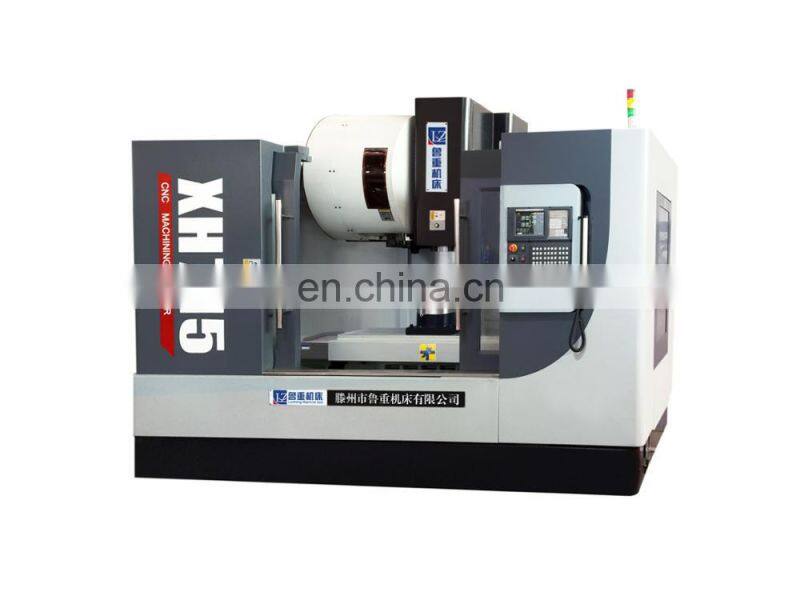

High Speed Power CNC Milling Machine XH715 Large Vertical Chinese CNC Machining Center
Product configuration:
Standard accessories :
Fanuc 0I Mate control system
Lubricating system
Full guard
Manual chip conveyor
Optional accessories :
Control system :KND,GSK,Siemens etc.
Chain type automatic chip conveyor
The forth axis
Spindle center water outlet ,spindle oil coolant
Product main technical specifications:
specifications |
unit |
XH715 |
XK715 |
||
Table size |
mm |
1600X500 |
1600X500 |
||
Table maximum load |
kg |
900 |
900 |
||
T slot(number-width-pitch) |
|
5-18-80 |
5-18-80 |
||
X axis travel |
mm |
1000 |
1000 |
||
Y axis travel |
mm |
500 |
500 |
||
Z axis travel |
mm |
580 |
580 |
||
|
Distance between spindle center and column surface |
mm |
545 |
545 |
||
|
Distance between spindle end face and worktable surface |
mm |
140-720/270-850 |
170-750/300-880 |
140-720/270-850 |
170-750/300-880 |
X/Y axis max.rapid traverse |
m/min |
15 |
15 |
||
Z axis max.rapid traverse |
m/min |
12 |
12 |
||
Cutting feed |
mm/min |
1-5000 |
1-5000 |
||
Spindle speed |
r/min |
80-3500 |
80-6000 |
80-3500 |
80-6000 |
Spindle taper |
|
BT50 |
BT40 |
BT50 |
BT40 |
Main motor power |
kw |
11/15 |
11/15 |
||
X/Y/Z guide rail form |
|
3 axis hard rail |
3 axis hard rail |
||
positioning accuracy |
mm |
0.02/0.016/0.016 |
0.02/0.016/0.016 |
||
Repeat positioning accuracy |
mm |
0.012/0.008/0.008 |
0.012/0.008/0.008 |
||
Tool magazine capacity(standard/optional) |
|
16/20 |
16/24 |
- |
|
Max.tool dia.(adjoin/apart) |
mm |
152/200 125/150 |
80/130 80/150 |
- |
|
Max. tool length |
mm |
300 |
- |
||
Max.tool weight |
kg |
15 |
7 |
- |
|
Machine dimension |
mm |
3500x2550x2400 |
3000x2500x2400 |
||
Machine weight |
kg |
6700 |
6500 |
6200 |
6000 |
|
|
| VMC650 Vertical Machining Center | VMC850 Vertical Machining Center |
|
|
| VMC1370 Vertical Machining Center | XH2308 Gantry Machining Center |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
