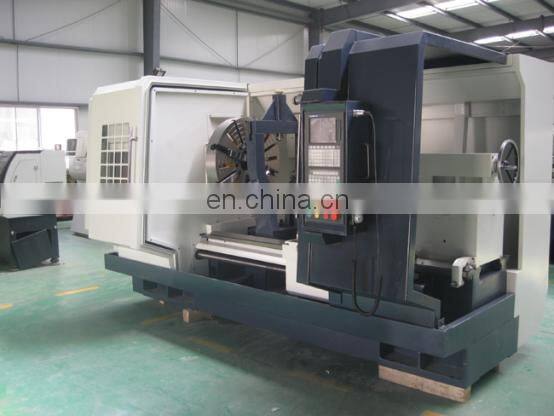

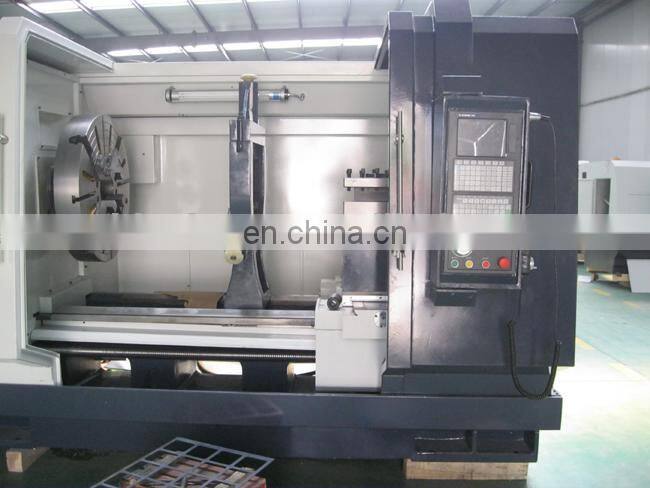

Large Type Conventional Lathe Machine for Metal CK61100E

CK61100E*1500

Max. swing over bed (mm)

Φ1100

Max. swing dia. over cross slide(mm)

Φ820

cessing length(mm)

1500

Form

Three gears No grade to change frequency

Number of spindle speed

  No grade

Range of spindle speed(r/min)

6-500 rpm

The spindle terminal structure

C11

Diameter of spindle bore (mm)

φ130

The taper of spindle front-end

(Metric)120  1:20

Power of main motor (KW)

15KW

Max.travel of  tool post (mm)

X:530   Z:1700

Fast moving feed speed  (mm/min)

X:4000  Z:5000

Resetting accuracy(mm)

X:0.012  Z:0.016

Processing accuracy(mm)

IT6-IT7

Surface roughness

Ra1.6

Sleeve diameter of tailstock (mm)

φ100

Sleeve travel of tailstock (mm)

250

Cone hole taper of tailstock’s sleeve

MT6

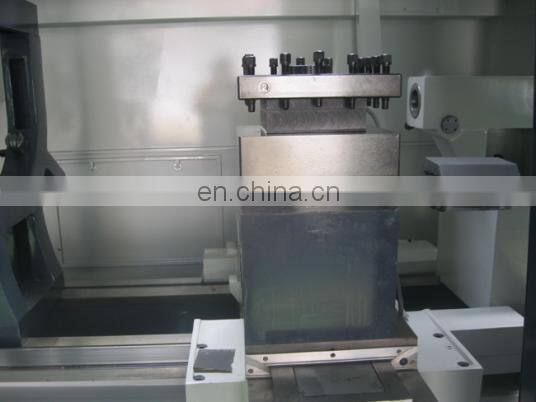

Standard configuration

Four-station vertical electrical knife rest

Alternative configuration

Horizontal Six-station electrical knife rest

Restting accuracy (mm)

0.01

Length of section of knife handle (mm)

30×30

Length*width*height

3700×1820×1810

Net weight (Kg)

6000

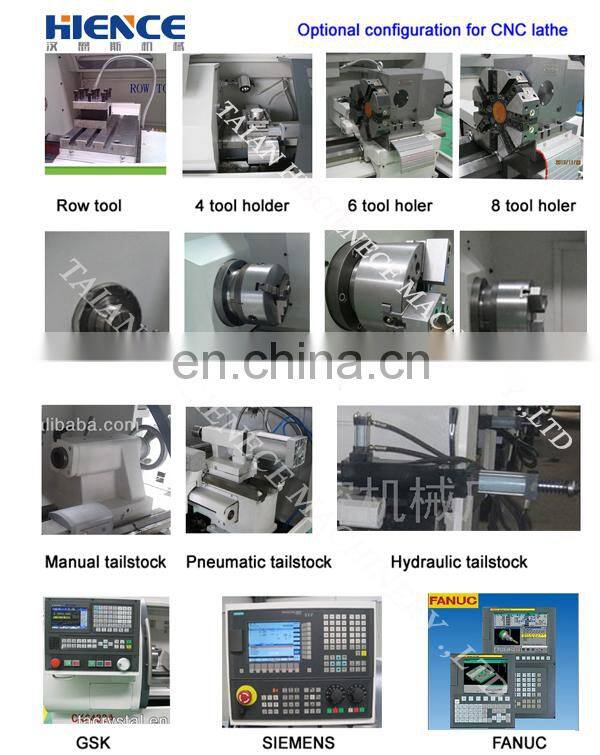

Optional brands of CNC systems

SIEMENS,FANUC

Optional types of the tool post

horizontal Six-station, horizontal eight-station

Optional types of the workpiece clamping

hydraulic chuck,pneumatic chuck,spring chuck

Optional types of the tailstock

Hydraulic tailstock,pneumatic tailstock

Optional patterns of feeding

Automatic feeding(Customized programs alone)
