Horizontal Heavy Duty Mazak Cnc Lathe Machine in Lathe CK6180B

FOB Price

US$ 25,000 - 30,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HIENCE	Place of Origin	Shandong, China
Model Number	CK6180B	After-sales Service Provided	Engineers available to service machinery overseas
Condition	New

Horizontal heavy duty mazak cnc lathe machine in lathe CK6180B

Product Description

A.Standard Specifications

Manual 3 jaws chuck. Manual tailstock. 4tool post.

GSK system. Self-lubrication system.

Coolant system.Lighting system.

items	names	data
specifications	Max. swim over bed(mm)	Φ800
	Max. swim over carriage of slide plate(mm)	φ500
	Max. length of work piece (mm)	1000mm-5000mm
Main drive	Type of main belt drive	Three gear speed change, frequency variable speed change
	Spindle speed seris	variable
	Range of spindle speed(r/min)	25-850
	Structure of spindle nose	C11
	Spindle bore(mm)	φ105
	Front taper of spindle bore	metric120 1:20
	Motor power(KW)	11
Feeding system	Max distance of moving turret(mm)	X:500 Z:1650
	Moving speed of post(mm/min)	X:4000 Z:5000
	Resetting accuracy(mm)	X:0.01 Z:0.015
	Machining precision of work piece	IT6-IT7
	Surface roughness of work piece	Ra1.6
Tailstock device	Diameter of tailstock quill(mm)	φ100
	Max. range of tailstock quill(mm)	250
	Taper of tailstock quill	Mohs6#
Tool station device	Standard configuration	Vertical motor 4 station turret
	Chosen device	Horizontal motor 6 station turret
	Resetting accuracy(mm)	0.008
	Max. size of tool post(mm)	30×30
Size and weight	size(length×width×height)(mm)	3700×1820×1780
Size and weight	Net weight(Kg)	3700

B.Characteristics:

1. Horizontal lathe bed.

2. Extra large spindle bore: φ105.

3. Bed way is treated by super audio quenching.

4. Saddle of the bed and joint surface of the sliding guide rail are laminated by the plastic.

5. Feeding system is controlled by the servo drive.

6. Accurate ball screw combined with high precision composite bearing structure...

7. Ball screw and the joint surface of the sliding guide rail are auto forced lubrication.

8. The station of the turret can be chosen from vertical type 4 station, vertical 6station and horizontal 6 stations, and so on.

9. We can set up the manual operation, pneumatic, hydraulic chucks and tailstock.

10. The control systems include GSK, KND, SIMENS, FANUC and so on.

C. Optional configuration

Optional brands of CNC systems	SIEMENS,FANUC
Optional types of the tool post	horizontal 6-station, horizontal 8-station
Optional types of the workpiece clamping	hydraulic chuck,pneumatic chuck,spring chuck
Optional types of the tailstock	Hydraulic tailstock,pneumatic tailstock

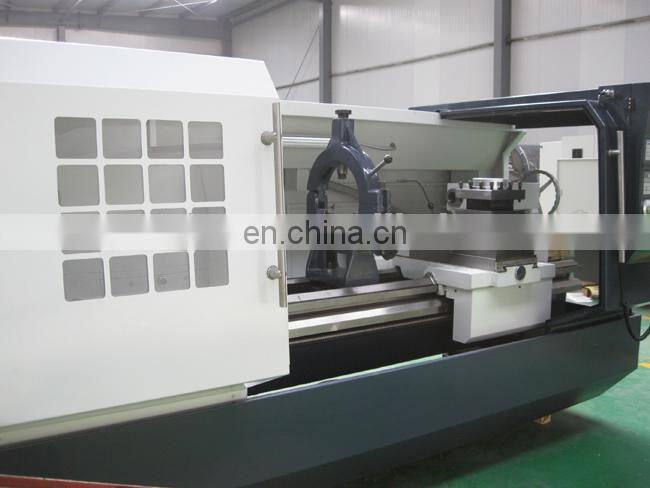

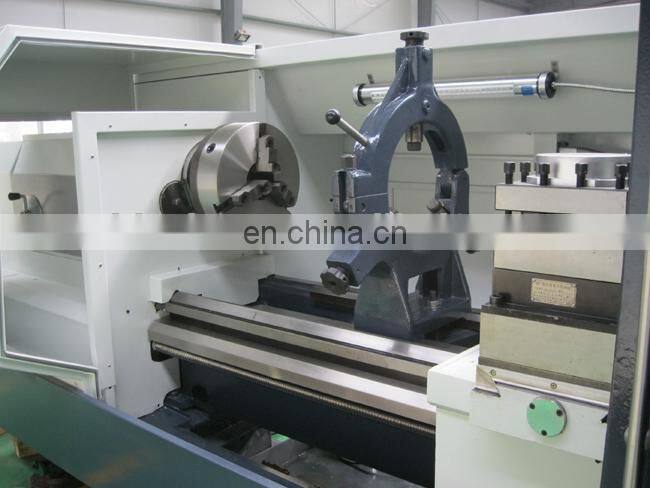

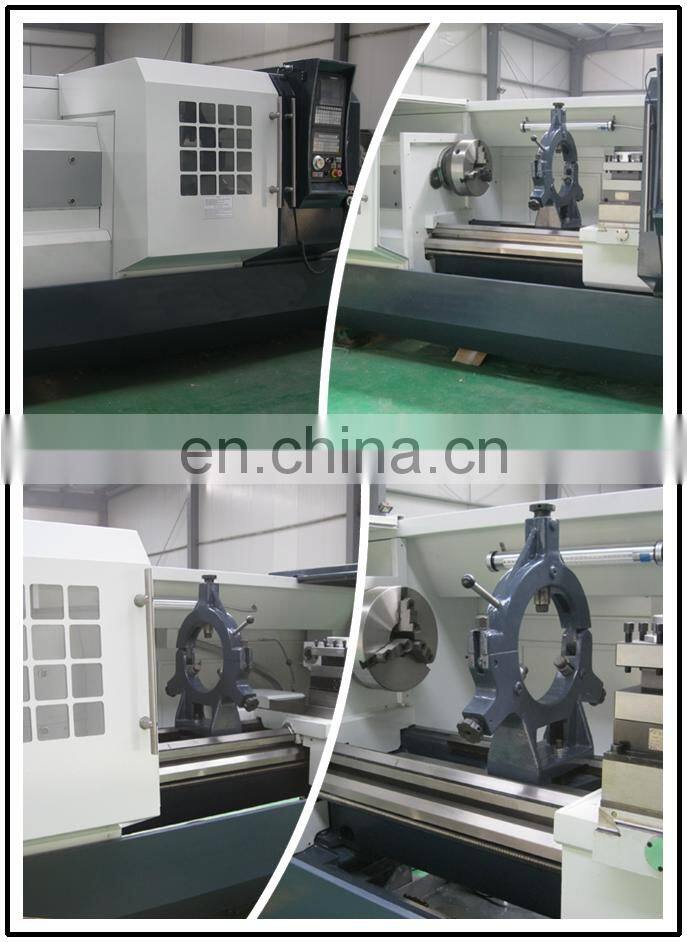

D.Pictures of CK6180B
