Automatic Hydraulic Metalwork Cnc Turning Lathe Machine CK6136A-1

FOB Price

US$ 7,000 - 10,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HIENCE	Place of Origin	Shandong, China
Model Number	CK6136A-1	After-sales Service Provided	Engineers available to service machinery overseas
Condition	New

Automatic hydraulic metalwork cnc turning lathe machine CK6136A-1

Product Description

A.Standard Configuration and Specification

1.System:GSK,servo motor and drive

2.Manual 3-jaw chuck, 4-station electric tool post

3.Manual tailstock, Semi-Rugged

4.Cooling system;Lighten system; Automatic lubrication system

ITEMS	Specifications
Max. swim over bed	Φ360mm
Max. swim over carriage	Φ190mm
Max. length of work piece	500mm
Width of the machine	330mm
Size of three-jaw chuck	200mm
Range of spindle speed	150-2500rpm
Spindle bore	Φ60mm
Taper of spindle bore	MT4
Stations of tool carrier	4/6/8
Max size of tool post	20mm or 25mm
Min. setting unit of motor	(Z) long 0.001mm,(X) cross 0.001mm
Moving speed of post	(Z) long 8m/min,(X) cross 4m/min
Taper of tailstock quill	MT4
Max. range of tailstock quill	120mm
Motor power	4KW
Packing size(length ×width × height)	1865mm×1400 mm×1650mm
Net weight	1500/1600kg

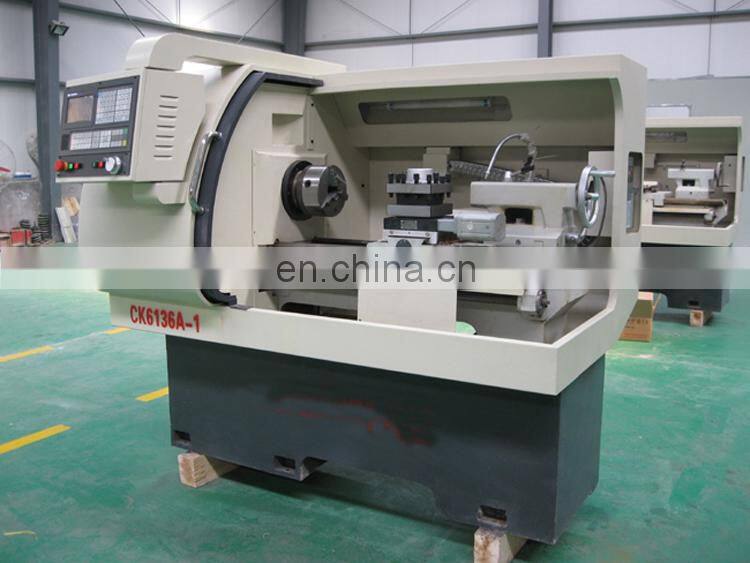

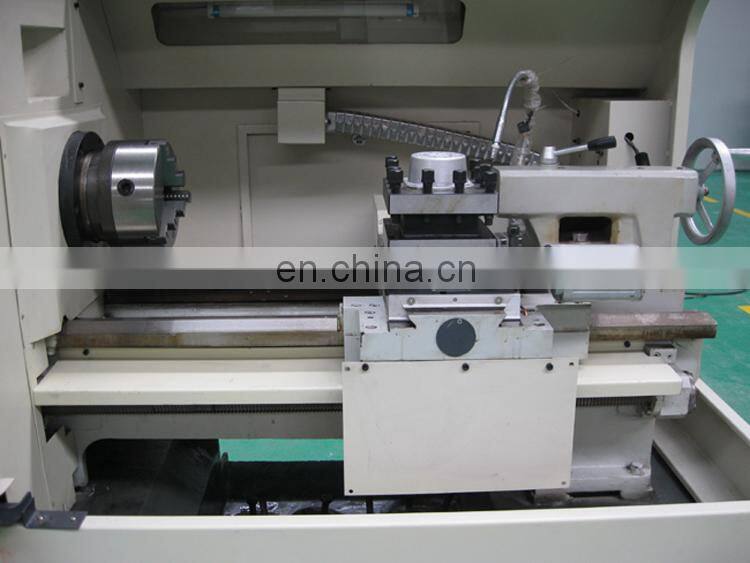

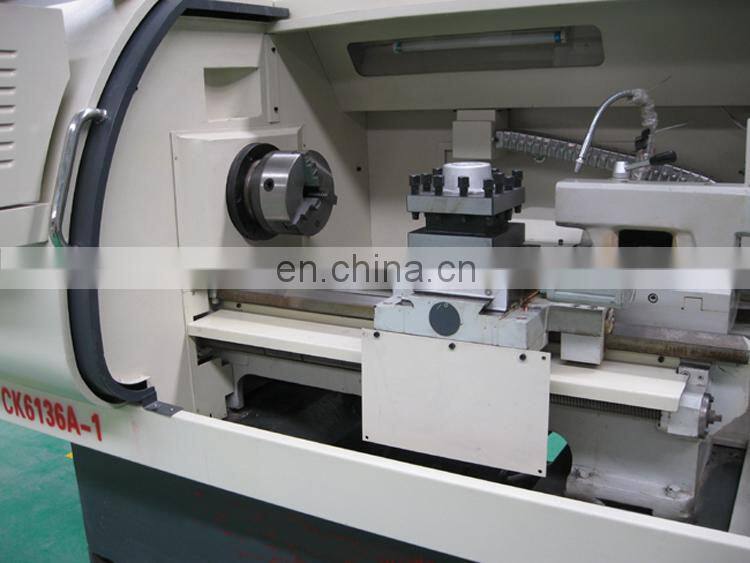

B.Pictures of CK6136A-1
