Descriptions:
Imported Dual Servo Motor and Guide Rotating Mechanism, high cutting precision.
More conveniently design all kinds of graphic or text instant processing by professional display software.
Flexible processing, easy operation and convenient.
Wide use in high speed cutting. Showing high speed and stability.
Application:
Widely used in the processing of advertisement board, sheet metal structure processing, high and low voltage electric cabinet, textile machinery parts, kitchen utensils, automobile, subway, train, machinery, metal crafts and other industries.

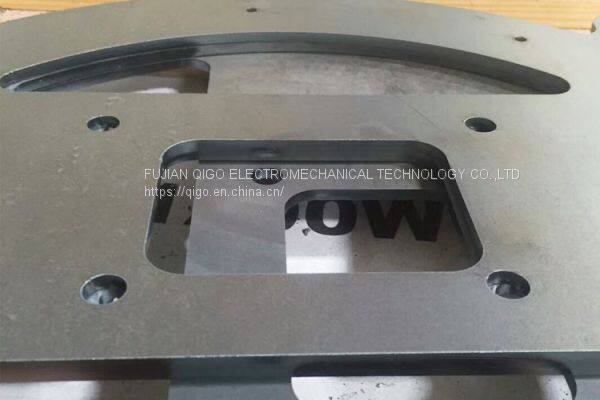

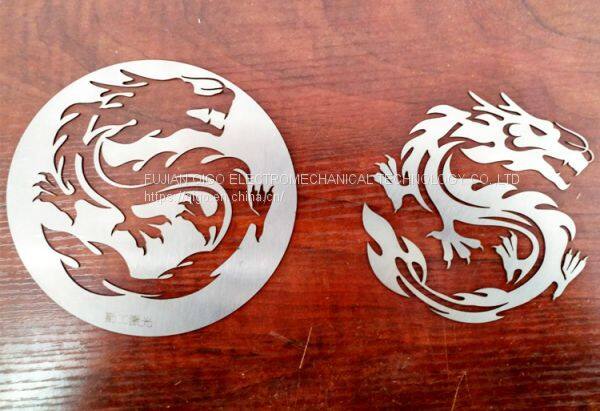

Application materials: suitable for cutting stainless steel, carbon steel, alloy steel, aluminum plate, gold/ silver/titanium and other metal materials and pipes.
Main Technical Parements:
Model |
QG-G1-2040 |
QG-G1-2060 |
Option |
Working Area |
2050mm x 4100mm |
2050mm x 6100mm |
N/A |
Laser Power |
1500w/2000w/3000w |
1500w/2000w/3000w |
N/A |
Lifting Adjustment |
Surface Following |
Surface Following |
N/A |
Mini. Line Width |
0.15mm |
0.15mm |
N/A |
Pulse Frequency |
1-500HZ |
1-500HZ |
N/A |
Cutting Thickness |
≤20mm |
≤20mm |
N/A |
CNC System |
Cypcut |
Cypcut |
According to Demands |
Laser Head |
Imported Brand |
Imported Brand |
According to Demands |
Accelerating Speed |
1.5G |
1.5G |
N/A |
Rated Voltage |
380V/ 50/60Hz |
380V/ 50/60Hz |
N/A |
Exhausting Power |
≤10KW |
≤10KW |
N/A |
Reposioning Accuracy |
±0.02mm |
±0.02mm |
N/A |
Colliding Position |
Red Light |
Red Light |
N/A |
Characteristics:
(1) High speed: 10m/min
(2) High stability: professional casting flatbed, casting crossbeam
(3) Low consumption: energy-saving and environmental protection, high electrooptic converting rate
(4) Maintenance free: up to use of 100,000 hours for the laser
(5) Suitable for cutting stainless steel, carbon steel plate and other metal plate sheets
(6) Used for cutting molding-machine box, cabinet and round tube material
