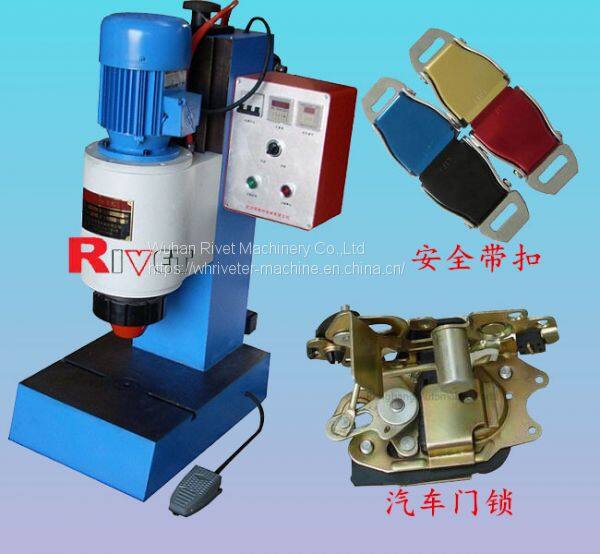

JM9TQ (Pneumatic riveting machine)
Characteristics:
■Desktop with pneumatic machine
■Radial structure
■Max riveting diameter Ф 9mm ( solid steel rivet )
■Stroke speed adjustable
■Power head movable
■Setting riveting time as will
■Manual & auto functions
JM9TQ
Scope of applications : Daily hardware, electronic products, toy products, automobile products etc.
Customzied available.
The model of JM9TQ is a kind of smaller desktop pneumatic riveting machine with radial structure. The machine's power head adjustment up and down to meet variety of workpiece's body and shape. The pneumatic system equipped with aerosol lubricating,double way regulation to control piston stroke speed effectively. Electric control system equipped with counter and time relay to easy and simple operations. T-slot on bench to fixing clamping apparatus available, positioning hole is coaxial with spindle to insure riveting process accuracy at ±0.02mm.
Specification:
▲Max riveting diameter Ф 9mm ( solid steel rivet )
▲Max riveting pressure 14Kn
▲Stroke Length Range 30mm
▲Available space 220mm
▲Throat depth 160mm
▲Riveting tool length 50mm
▲Eccentric angle 4°
▲Motive force Pneumatic
▲Workbench dimensions 360mm×290mm
▲Power 0.55Kw
▲Physical size 500mm×400mm×980mm
▲Net weight 280Kg
