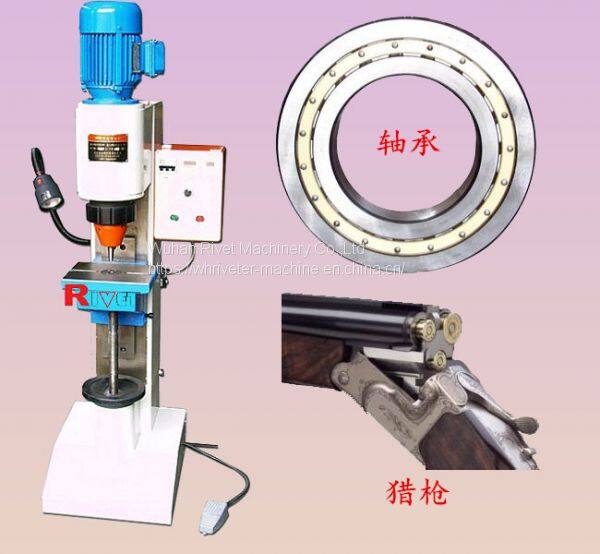

JM9 (Radial riveting machine)
Characteristics:
■Medium sized with vertical style
■Max. processing Dia.Φ9mm (solid steel rivet)
■Hydraulic drive with stepless regulation
■Security mask covered rotating part
■Workbench adjustable with large space available
■Setting riveting time as will, manual ,auto switching
■Can reserve hydraulic connector for fixture
■Hydraulic system and fuselage can be separated
JM9
Scope of application: instrumentation, hardware, appliances etc
Customized available
The model of JM9 is a kind of medium sized radial riveting machine and hydraulic driven. The machine applied advanced radial technology to performance rivets by cold forming, T-slot of workbench fixing clamping available and workbench adjustment up and down to meet variety of workpiece's body and shape's requirement. The fixture positioning hole is coaxial with spindle to ensure riveting process accuracy, electric control system equipped with counter and time relay to made the operation easy and simple. Hydraulic system equipped with throttle valve to control riveting pin speed effectively, and oil tank joint with fuselage or separated from fuselage as optional easy to transportation and move.
Specification:
▲Max riveting diameter Ф 9mm (solid steel rivet )
▲Max riveting pressure 14Kn
▲Stroke 30mm
▲Available working space 270mm
▲Throat depth 135mm
▲Riveting tool length 50mm
▲Eccentric angle 4°
▲Motive force Hydraulic
▲Oil-tank volume 60Liters
▲Pressure oil brand ISO 46#
▲Area of work bench 360mm×290mm
▲Power 0.92Kw
▲Physical size 700mm×500mm×1417mm
▲Net weight 250Kg
