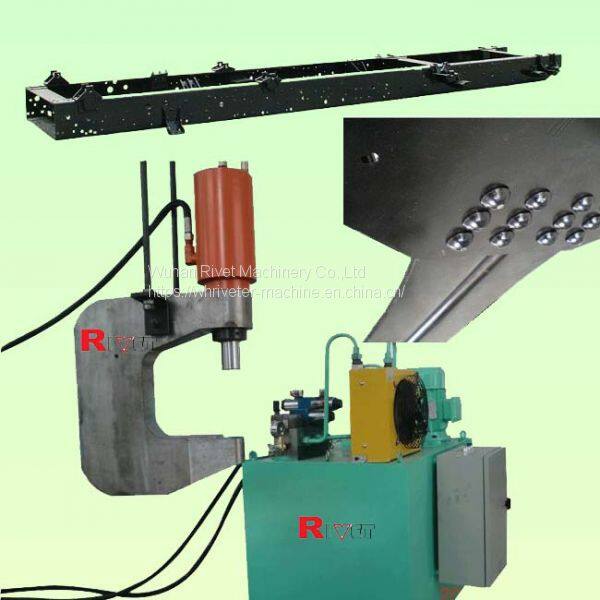

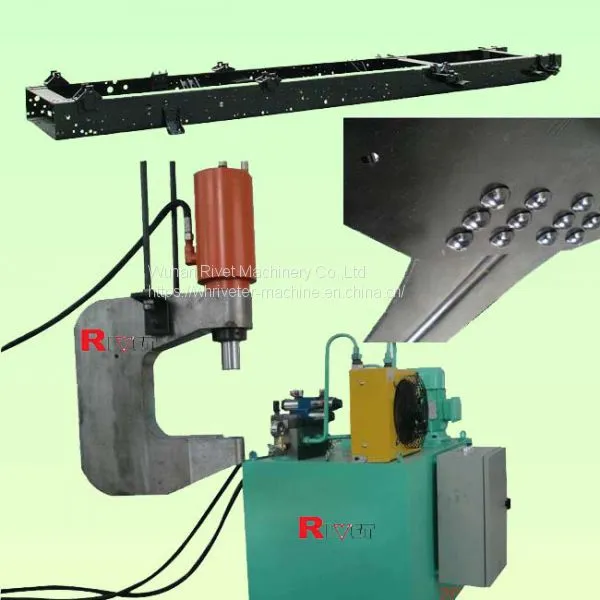

XGM-16(Chassis riveting machine)
Characteristics:
■Hanging and movable style
■cess ability Φ16mm(cold)Φ25mm(hot)
■Manual and automatic switching
■Auto loop boosting cylinder
■One hydraulic station can reserve two sets of connect mouth, can match 2-sets of C-gun.
■Hydraulic power pack connect with variety of C-gun available
■Any direction operation
■Short-circuit protector
XGM-16
In some areas, the common riveting machine can not processing due to the span of workpiece and heavy with large body, at this time you might considering the traveling riveting machine (hydraulic power pack with C-gun, also called it as hanging machine). This machine pressure is powerful and stable during process, after process that the surface are smooth and beautiful.The machine's pressure, speed, system pressure are adjustable to insure the achieve a perfect result.
The machine's layout
Specification of model:XGM-12
▲ure 350Kn
▲Oil punp output 6.3MPa
▲Frequency of process 14-25 Times/Min
▲cess diameter Φ12mm cold, Φ18mm hot
▲Rated flux 40L/Min
▲Poston stroke 95mm
▲Cylinder diameter Φ125mm
▲Power 4Kw
▲ "C"-gun size Select from drawings according to requirement
▲Oil-tank volume 350 L
▲Hose 8M/10M as optional
▲Weight 800Kg
Specification of model:XGM-14
▲ure 400Kn
▲Oil punp output 6.3MPa
▲Frequency of process 14-25 Times/Min
▲cess diameter Φ14mm cold, Φ20mm hot
▲Rated flux 40L/Min
▲Poston stroke 95mm
▲Cylinder diameter Φ125mm
▲Power 4Kw
▲ "C"-gun size Select from drawings according to requirement
▲Oil-tank volume 350 L
▲Hose 8M/10M as optional
▲Weight 800Kg
Specification of model:XGM-16
▲ure 500Kn
▲Oil punp output 6.3MPa
▲Frequency of process 14-25 Times/Min
▲cess diameter Φ16mm cold, Φ25mm hot
▲Rated flux 40L/Min
▲Poston stroke 95mm
▲Cylinder diameter Φ140mm
▲Power 4Kw
▲ "C"-gun size Select from drawings according to requirement
▲Oil-tank volume 350 L
▲Hose 8M/10M as optional
▲Weight 1000Kg
"C"gun drawings and parameters
