China Supplier VMC850 Vertical CNC Machine Center Good Price
Summary

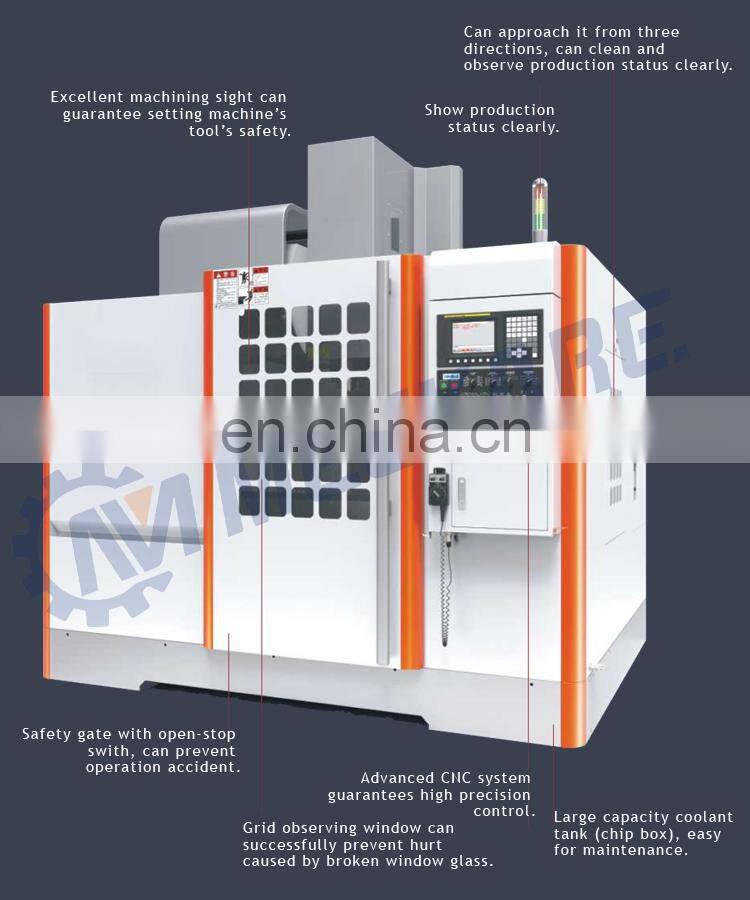

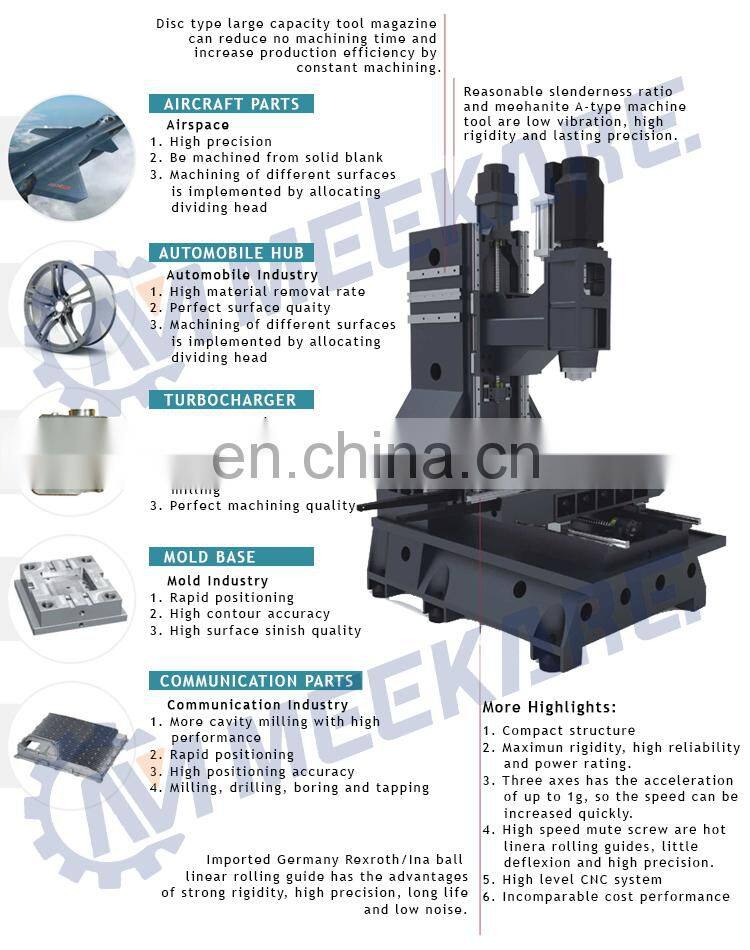

Vertical CNC machine center is mainly used if medium-sized parts and molds, the workpiece in a fixture can be for the completion of milling, drilling, boring etc machining. This machine can be single used, and also can be used for multiple operations on parts in a production line. Our machine has the features of powerful cutting, high speed positioning, mechanical and electrical integration, automatic chip control and security protection, etc.
Technical Parameters:
Standard Configuration
◆ Horizontal adjustment block
◆ External handle wheel
◆ Containing inner memory
◆ Electric cabinet heat ex-changer
◆ Full sealed cover
◆ Three-color warning lamp
◆ Working lamp
◆ Automatic power off system
◆ Water filtrating device
◆ Dust prevention blow for spinde nose
◆ RS-232 interface
◆ Automatic lubricating system
◆ Tools and tool box
◆ Iron filings plate and water tank
◆ Transformer
◆ Rigid tapping
◆ Three axes extemsible cover
◆ Operation manual
◆ Mitsubishi system

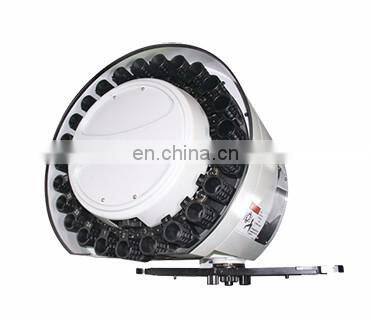

◆ ATC (Bamboo hat type or disk type)
◆ Spindle oil cooling device
◆ Water through spindle center device
◆ Water outlet on high pressure side device
◆ Chain type / Spiral chip conveyor
◆ Disk type oil-water separator
◆ CNC rotation worktable (the 4th axis)
◆ Air conditioner in electric control cabinet

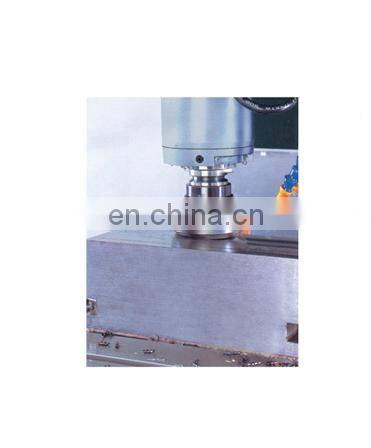

Strong spindle, ensure perfect machining
Gear type spindle variable speed device provides powerful torque during operation at low speed and guarantees stable rotation during operation at high speed, to ensure wider machining range.
By enlarging thickness and diameter of spindle ends and flanges, the spindle with roller bearing not only strengthens all factors related to spindle system, but also improves cutting performance via clamping force of powerful tools.
Win in power

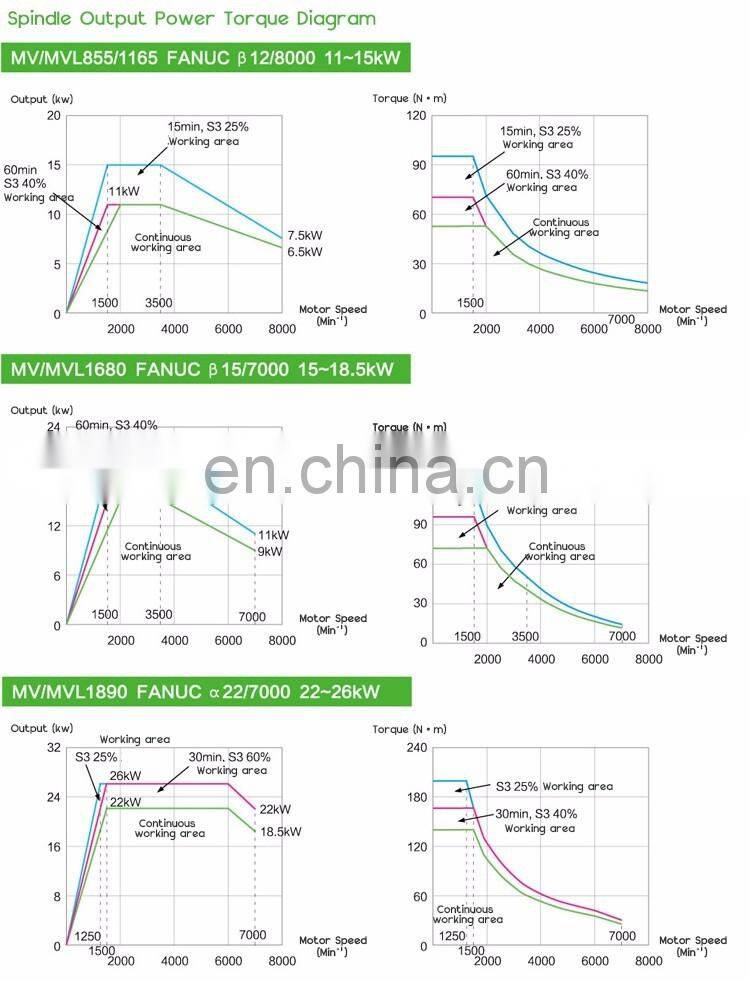

Optional spindle
BT40: 8000 / 10000 (rpm/Min) Belt drive
12000 / 15000 (rpm/Min) Direct drive
BT50: 6000 (rpm/Min) Belt drive

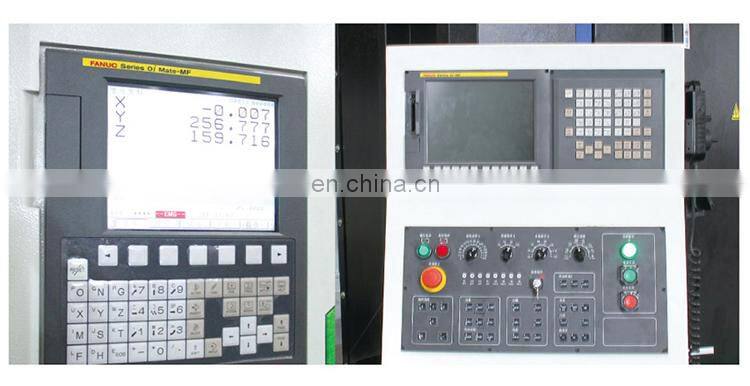

CNC System
Hardware configuration
◆ Axis of control: X, Y, Z of the three coordinate axis and one spindle
◆ Number of axis: X, Y, Z three axes linkage
◆ Operation panel: Full function CNC keyboard
◆ The man-machine communication interface standard configuration: PCU50
◆ Input and output module: Separation type through the IM361 interface module expansion of the 57-300 input and output module.
CNC function
◆ Compensation: the backlash compensation, quadrant error compensation, tool length compensation and tool radius compensation, the temperature is more flexible (optional).
◆ Feed function: feed rate trimming, deeding rate per minute per minute per rotation, feed rate, programmable acceleration limit.
Main function: spindle speed, spindle override function trimming, spindle orientation quasi stop, speed limit.
CNC Programming
◆ Drilling, milling and boring process of fixed cycle
◆ Metric / inch size programming
◆ Absolute or incremental programming
◆ Macro program
◆ Plane selection
◆ The workpiece coordinate system
Interpolation type
Accurate positioning, stop, three coordinate appropriate line interpolation, arc interpolation, any two coordinate helical interpolation, feed suspended and thread cutting.
Edit function
Program segment retrieval, program number search, background editing, teaching programming and procedural protection.
Safety protection function
Program test function, programmable working area limitation, limit monitoring software, hardware limit monitoring, purple emergency stop, static monitoring, speed monitoring, position monitoring and contour monitoring.
Operation mode
Auto operation mode, MDI mode, DNC mode, single teaching mode, incremental mode, empty running mode and single segment mode.
Data transmission
USB data input and output, RS232C serial interface data input and output.
Display function
Current position display, actual cutting speed display, program display, operation error display, alarm information display and self diagnosis display.
- CNC Tapping Machine
- CNC Machining Center (Vertical, Horizontal, Gantry type)
- Lathe (Common, CNC)
- Milling Machine (Common, CNC)
- High Speed CNC Engraving and Milling Machine
- CNC Spark Machine
- EDM Small Hole Drilling Machine
- Other non-standard machine
Package: Standard export plywood case, or as per customers’ requirements.
Before shipment, machines would be painted with rust-proof oil and packed with water-proof material very carefully. Machinery shall be packed in a way suitable for long distance ocean freight transportation and to change of climate, well protected against moisture and shocks.
