Home > Products > casting machine > DL-CBB-01 low pressure vacuum die casting machine

DL-CBB-01 low pressure vacuum die casting machine

FOB Price

USD $201,100 - $325,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port XIAMEN
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	DELIN Die Casting Machinery	Place of Origin	Fujian, China
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	1years	Weight	2500 KG
Dimension(LWH)	5000 * 4600 * 3400 mm	Condition	New
Voltage	380V 50HZ	Power(W)	3 * 35 KW

Product Description

Low pressure die casting machine Features

1, The machine is profession Low Pressure Die Casting Machine for Cooper Alloy Product, Zinc Alloy Produc ect..

2, Machine structure: Equipment Including mainly Machine, Furnace, Pick Material Equipment, Graphite Tank,Wash Mold - Room, Hoist And Crane Control System, Hydraulic System, Pouring System, Pneumatic System Components.
3, The control system uses Siemens ET200PLC control, The manipulator is moved by servo, Fast and stable performance, high precision control.
4, Furnace weight is 1.8T,Melting Rate is 350kg/h,each inductor, the water jacket cooling water with a flow pressure detection, alarm.

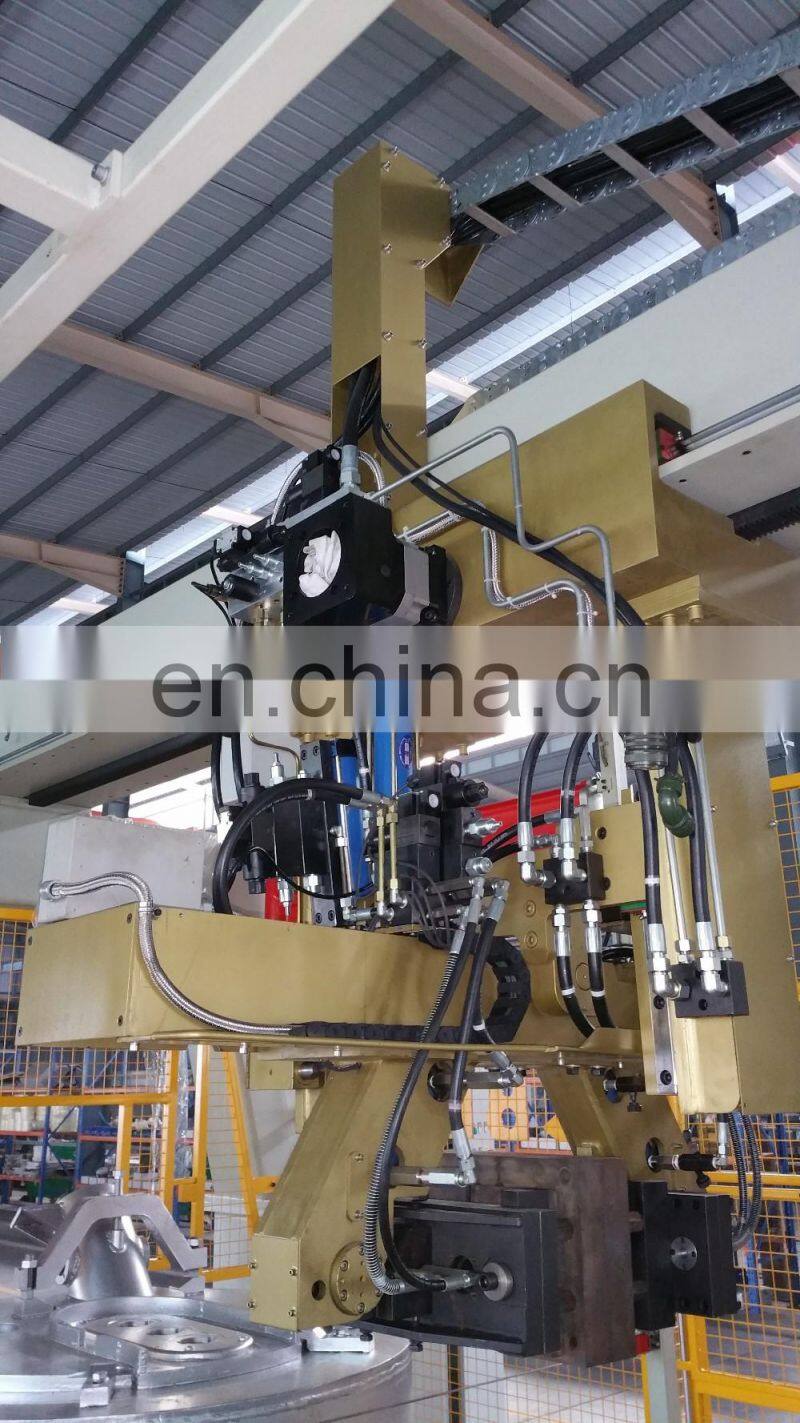

5, Pick material equipment : has front and back, left and right, turn and down function,can send the products to store car.

6, Wash-mold room : mold surface oxide can be moved within the mold cleaning mold clean up warehouse.
7, Hydraulic system uses a combination of well-known international brands, mainly SUN, Taiwan Dongfeng, YUKEN, etc. stable performance, stain resistance, water-based fire-retardant suit hydraulic oil for dedicated member of the media.
8, Furnace pouring system : NORGREN, Bole Fu and other brands of pneumatic components, pressure proportional control, and there are multiple security to ensure the quality and safety of the casting.

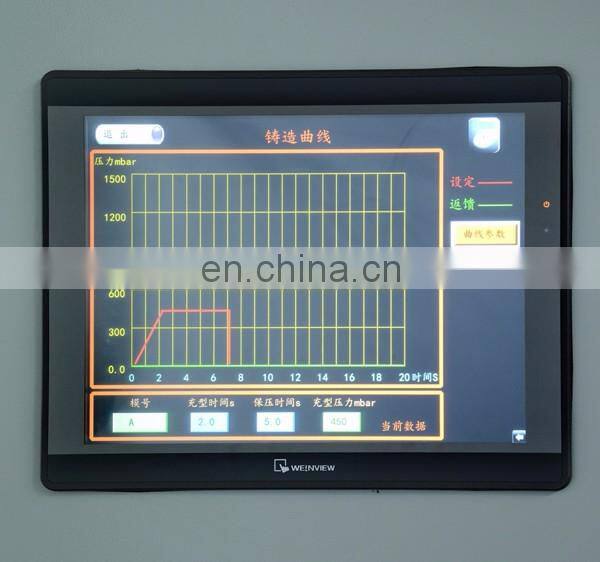

9, The worker display touch panel set various functions and parameters, easy to operate and has a fault code display for easy maintenance.

Main Specifications And Parameters

^Contents	^Parameters
^{Different Brands of Hydraulic System}	^{SUN,REXROTH,YUKEN ect.}
^{Maximum of Mold Weight}	^180kg
^{Maximum Size Of Mold}	^{500 * 400 * 200 (Thickness) mm}
^{The Dimension of Machine}	^{5000 * 4600 * 3400 mm}
^{Equipment Power}	^{120 kw}
^{Furnace Power}	^{3 * 35 kw}
^{Tube Quantity}	³
^{Melting Rate}	^{350 kg / h}
^{Furnace Capacity}	^{1.8 T}
^{Processing Types}	^{Metal Automatic}
^{Air Pressure}	^{6 kg}
^{Water Pressure}	^{3 kg}

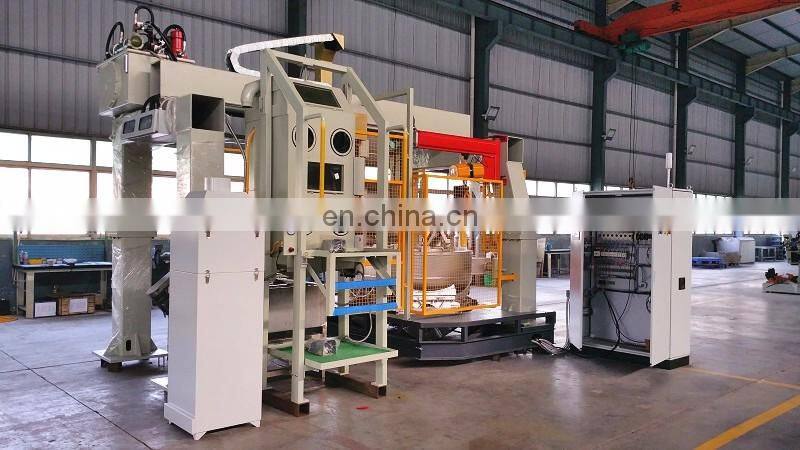

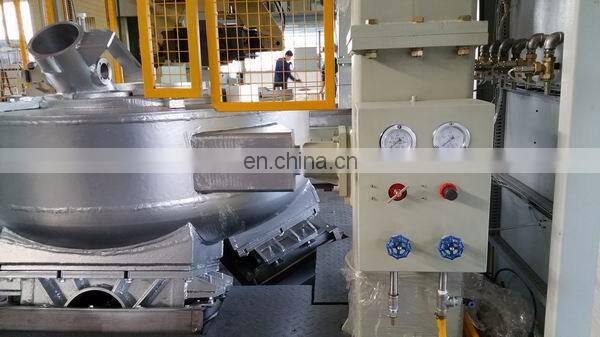

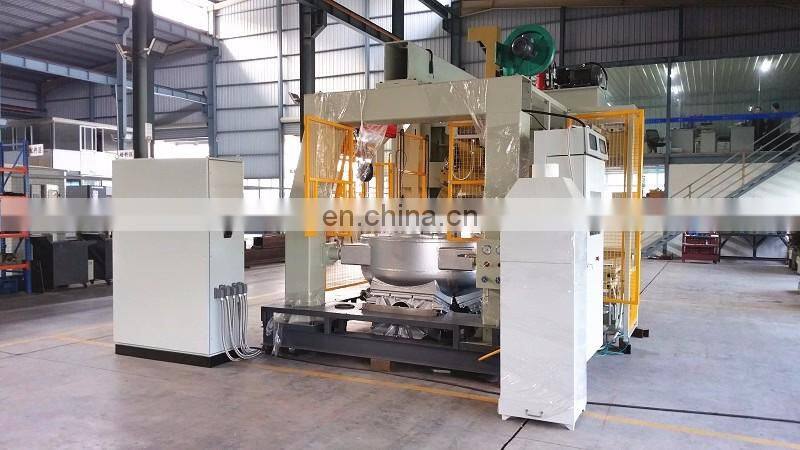

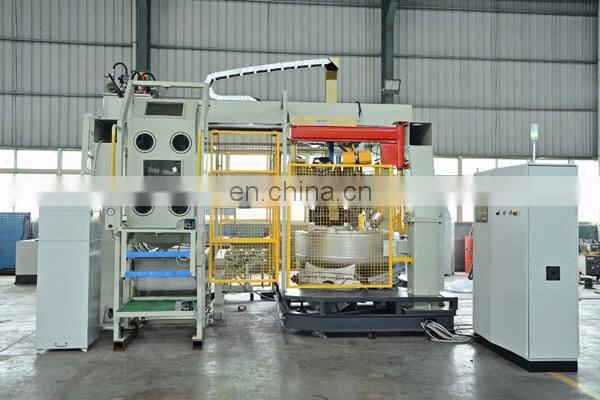

Detailed Images

Main Catelogries

Our Company

our service
Before payment	1. Free contact for the most suitable machine. 2. Free professional design for each customer especially.
After sale service	1. 24 hours technical support by phone, email, skype ,whatapp or wachat. 2. 1years warranty period. 3. Our senior engineer is available to travel aboard, help the installation, maintenance and training staff. 4. By offering this support, we make sure the customer start the business smoothly, to realize win-win cooperation.

Packing & Delivery

_{Packaging & Delivery}
_Size	according to machine size
_Weight	about 2500kg
_{Packaging Details}	1, Before the shipment, we will spray anti-rust oil on the machine's surface . 2, Then use the plastic film packaging to prevent moisture and rust. 3, Finally, put the machine in wooden cases, use solid seaworthy wood box package with steel belt, it will be save space as much as possible for container loading.

FAQ

Q1: Can i have your quotation?
A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you the suitable machine.
Q 2: How to operate and maintain the machine?
A : First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service.
Q 3: Where is your factory located ? How can I visit it ?
A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.
Q 4 :What’s dimension of your workpiece ?
A : In order to configure suitable size machine for you. we should get your info. We can professional design as your requirement.
Q 5: Can you guarantee you quality?
A : Of course. We are the manufacture factory ,more important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
