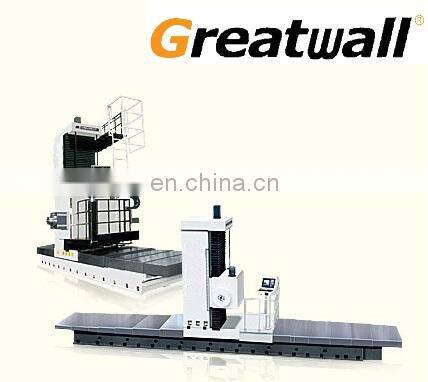

Planer Type Boring and Milling Machine

This machine is able to perform roughing and finishing operations such asboring,drilling,

counter boring, ring-groove cutting, and threading. The table indexing capability of the machine enables multiple sides of a boxy part to be machinedin a single setup. This is ideally suited for the automobile, aerospace, ship-building,and nuclear energy industries.

Technical specifications:

Boring spindle diameter: 130mm

Diameter of milling spindle: 221.44mm

Spindle taper: ISO50#

Spindle speed: 10-2000r/min

Power of spindle motor (rated/30min): 37/51kw

Max. torque of boring spindle: 3,500N.m

Max. spindle thrust: 20,000mm

Max. torque of milling spindle: 5,000mm

Ram size (L x W): 420 x 480

Table size (L x W): 3,000mm x 2,000mm

Max. load: 25,000kg

Transverse travel of table: 3,500mm

Vertical travel of spindle head: 2,000mm

Longitudinal travel of column: 2,000mm

Axial travel of spindle: 850mm

Ram  travel: 900mm

Traverse  of facing chuck slide

Table rotation: 360°

NC system: 840D

Overall dimensions: L8690mm x W4490mm x H4830mm

Weight of machine: 34,000kg.
