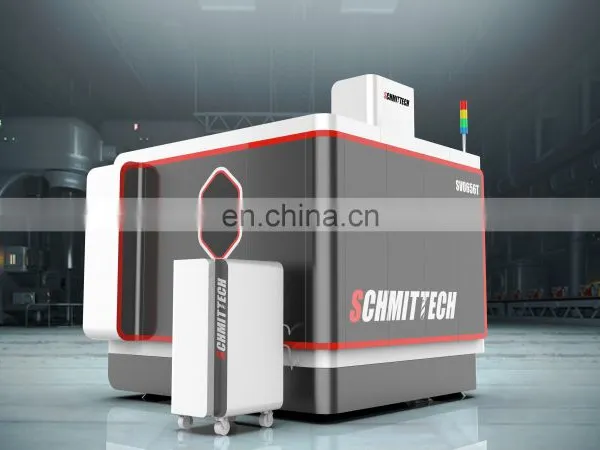

Schmitt 2018 Beijing CE high speed/ milling/driling/vfh 5-axis CNC vertical vmc machining center SVMC0656T smart
- 600 Set / Sets per Month
- CHINA MAIN PORT
- T/T Credit Card
- Schmitt 2018 Beijing hydraulic / CE / milling / drilling 5 axis cnc vertical machining centers - vmc 0656T small M12000
- Schmitt 2018 Beijing CE high speed / drilling 5 axis cnc vertical metal milling machine center s - vmc 0875T PS18000
- Schmitt 2018 Beijing CE high speed / milling / drilling 5 axis cnc vertical machining center S - VMC 0656T smart PS18000
- Schmitt 2018 Beijing CE high speed / milling / drilling / vfh 5 axis cnc vertical machining center S - VMC 0656T smart PS20000
- Schmitt 2018 Beijing hydraulic / milling / drilling 5 axis CNC vertical machining center S - VMC 0875T PS18000
- Schmitt 2018 CE 3 axis / high speed / metal / cnc vertical mini vhf milling small machining center S - VMC -0540D M12000
Product Details
Brand Name: | Schmitt | Type: | Vertical | Certification: | CE |
Warranty: | 2 Years | Weight: | 8000 | ||
Dimension(L*W*H): | 3800*3750*3300 | Voltage: | 380V 50HZ | Condition: | New |
Power(W): | 65kW |
Product Description
1. The entire machine adopts a gantry moving beam structure, with good rigidity, balance force, good thermal balance and s table accuracy.
2. The machine's responsiveness and acceleration are remarkable since the XYZ axis adopts the direct drive of a high dyna mic performance servo motor.
3. Slides are all tempered using high tension cast iron and resin sand technology, which can provide perfect heat treatment to eliminate the remnant stress and ensure the thermal stability of the machine.
4. Machine adopts modular design and has multiple optional function.
5. Closed-loop control is adopted for all axes,which will cause high accuracy.
6. Machine design fully conforms to the concepts of ergonomics, energy saving, environmental protection and artificial intel ligence.
5-Axis Vertical Machining center
1. VMC0656T gantry high-speed milling machine is a mainly used in the molding industry producing cavity, die-casting, cas ting, deep drawing, stamping, and other types of molds.
2. It can efficiently process the flexibility of the valve body, thin wall category, shell class, and frame class.
3. The standard machine comes equipped with a two-axis workbench, which can continuously execute high-speed milling,
boring, drilling, reaming, tapping, and other processing procedures.
4. Moreover, it can easily process parts with complex curved surfaces such as impellers and blades.
5. The entire machine adopts a gantry moving beam structure and the linear shaft is directly connected by the motor.
6. This provides machine specialties of high speed, high acceleration, and high density. Then, the performance from comple ting high speed cutting during unit time, creates high precision and surface roughness.
7. Aside from milling, it can also execute grinding actions through milling functions.
Standard specification
1. PS Spindle 20000rpm ;
2. Gifu tool magazine ;
3. THK screw ;
4. THK giude way ;
5. H-iTNC530 NC system ;
Optional specification.
1. PS Spindle18000rpm ;
2. Renishaw TRS2 ;
3. Renishaw NC4 ;
4. FILTERMIST FX3000 ;
TRS2
Tool breakage detector
NC4
Tool detector
Gantry frame structure
High rigidity and high-precision
Tool magazine.
Tool magazine capacity is 20/40 pc
Exchanging time is 4-6 s
Gantry frame structure
Max. speed 20000 rpm
The finite element stress analysis
Schmitt Co., Ltd. established in 2007,we are well known for our strong technical force, design, R&D capabilities, efficient modern management model, and perfect quality management system.
Schmitt focuses on R&D, production, and sales of high-speed, high-precision and high-efficiency series CNC machine tools.
The company uses cutting-edge production equipment and a perfect supportservice system, forming strategic alliances with a number of high-end manufacturers in China, escorting high-end five-axis equipment manufacturing.
Schmitt led in passing CE certification and IS09001:2008 quality management system certification and insisted on implementing a "zero defect" quality management in an all-round way.Strengthening the quality control of sourcing, supply, production process, quality inspection, product sales, capital arrangement, and after-sales service.
The high-end CNC machine tools incorporate advanced design concepts such as "green environmental protection and an ergonomic concept", which are mainly used in the field of molds, aerospace, and automotive parts processing.
Factory
Q1: What is your payment terms?
A: Our payment term is 30% in advance, 70% before shipment.It is negotiable.
Q2: How can I get a quotation?
A: Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Tra de Manager or Telephone.
Q3: Do you have CE certification?
A: Yes, we have CE certification, machine quality is guaranteed.
Q4: Can you provide training for operation CNC machines?
A: Yes, free training in our factory is available.
Q5: Can you provide customized machine or SPM (Special purpose machine)?
A: Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.
