YASHIDA-618 Surface Grinding Machine

YASHIDA-618 Surface Grinding Machine thumbnail-1
YASHIDA-618 Surface Grinding Machine thumbnail-2
YASHIDA-618 Surface Grinding Machine thumbnail-3
YASHIDA-618 Surface Grinding Machine thumbnail-4
YASHIDA-618 Surface Grinding Machine thumbnail-5
YASHIDA-618 Surface Grinding Machine thumbnail-6
YASHIDA-618 Surface Grinding Machine photo-1

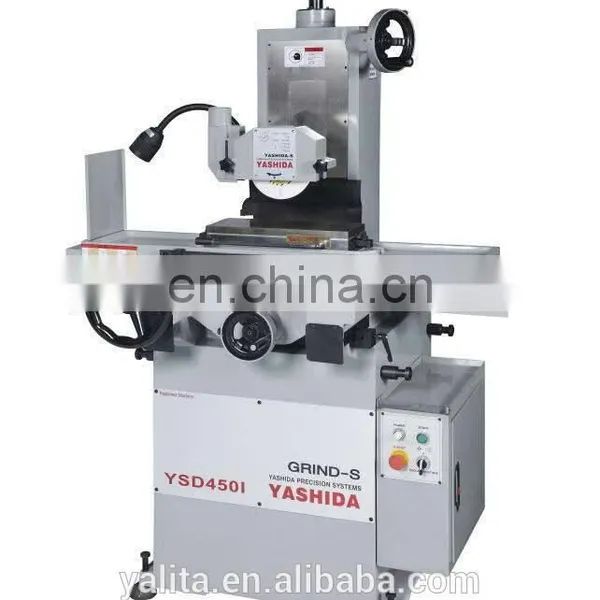

YASHIDA-618 Surface Grinding Machine photo-2
YASHIDA-618 Surface Grinding Machine photo-3
YASHIDA-618 Surface Grinding Machine photo-4
YASHIDA-618 Surface Grinding Machine photo-5

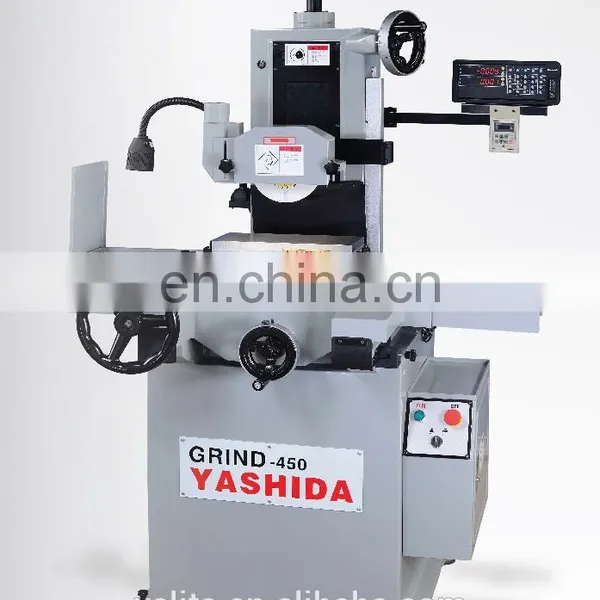

YASHIDA-618 Surface Grinding Machine photo-6
US$ 4,900 - 9,800 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Yashida
Place of Origin:
Anhui, China
Type:
Surface Grinding Machine
Contact Supplier Request Quote Chat Now
Gantry Machining Center Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yashida
Place of Origin Anhui, China
Type Surface Grinding Machine
Certification CE ISO
After-sales Service Provided No overseas service provided
Weight 880KG
Dimension(L*W*H) 1675*1214*1968
Voltage 380V
Condition New
Power(W) 1.1kw
CNC or Not Normal
Max. Grinding Length 465mm
Max. Grinding Diameter 357.59mm
Product Description
YASHIDA 450I SURFACE GRINDING MACHINE


Structural Features

Deeoer V-V slideways for greater durability,accuracy and stability.

All main castings are taken to shape in the extra rigid type through computerized structure analysis by finite element mpthod.

General Capacity

Unit

YASHIDA450I



Workability
Working area of table(L*W)

mm

450*150
Stroke of table(Transverse*Longitudinal)

mm

465*160
Maximum height

mm

357.59
Distance from table surface to spindle center

mm

450*200
Maximu capacity of table

kg

60

Table
T-shaped groove

mm*no

17*1
Feed per rotation of handwheel

mm

100

Longitudinal feeding
Manual feeding
Handwheel per revolution

mm

5mm(0.02Value per scale)
Dial on handwheel

mm

0.02 Value per scale

Vertical feeding
Automatic knife feed

mm

1mm Value per scale
Manual micro feed

mm

0.005 Value per scale

Motor
Wheel Size(Dia*width*bore)

mm

180*13*31.75
Spindle Speeds(50/60hz)

min-1

3000/3600

Grinding wheel
Spindle Motor

KW/P

1.1/1.5

Power

Power capacity

KVA

2

Packing size
Length*width*height

mm

1675*1214*1968

Weight
Weight

kg

880

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Detailed Images-450I
Detailed Images
Our Company

Company Profile

Established in January 2017, the registered capital is 10 million yuan. Its predecessor was Kunshan Risedian Precision Machinery Co., Ltd. Established a core parts R&D center in Taiwan, Kunshan Operation Center, and a standard manufacturing plant in Maanshan, Anhui. At present, the production base is in Maanshan, with a plant area of 12,000 square meters and a staff of 104.

Main business

The company is mainly engaged in the production, manufacture and sales of five major categories of manual grinding machines, centerless grinding machines, CNC grinding machines, high-speed washing machines and high-speed machining centers. The products are widely used in aerospace, automotive electronics, new energy and environmental protection. Equipment, military and other fields

Production capacity

After the project is put into production, the designed production capacity is 1000 grinding machines, 1000 CNC engraving and milling machines, and 5000 sets of sheet metal equipment processing capacity mainly cover East China .North China South China and overseas emerging markets. Currently serving more than 6,000 companies

Our company has six large gantry machining centers and two imported horizontal boring and milling centers. Large-scale laser laser cutting machine 1, CNC bending machine, plate gold spray water lines. With an annual output of more than 1000 grinders, CNC milling machine more than 1,000 units of the scale, sheet metal processing 5000 sets of assembly processing capacity. Plant area of 12,000 square meters 30 years of grinding industry experience, to provide you with one-stop grinding solutions!
We mainly produce precision surface grinding machines, centelless grinding machines, machining centers, and engaving and milling machine.


Packing & Delivery
Packaging
Size
1675 (L) *1214 (W) * 1968 (D)
Weight
880KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
