Surface Grinding Machine

Surface Grinding Machine photo-1
Surface Grinding Machine photo-2
Surface Grinding Machine photo-3
Surface Grinding Machine photo-4
Surface Grinding Machine photo-5
US$ 26,000 - 26,000 MOQ: 1 set
Key Specifications
Get Latest Price
Brand Name:
YASHIDA
Place of Origin:
Anhui, China
Model Number:
4080
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name YASHIDA
Place of Origin Anhui, China
Model Number 4080
Type Surface Grinding Machine
Certification CE ISO
After-sales Service Provided No overseas service provided
Weight 3700kg
Dimension(L*W*H) 3600*2280*2200 mm
Voltage 380V
Condition New
Power(W) 3.KW
CNC or Not Normal
Max. Grinding Length 800mm
Max. Grinding Diameter 650mm

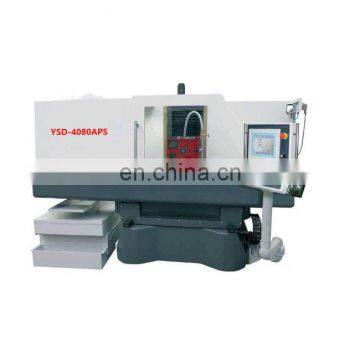

YASHIDA4080 high pricision auto surface grinding machine

surface grinding machine



Parameter table

specification



unit

YSD-4080APS

Workability

working range

mm

400*800*600

working area of table

mm

400*800

the maximum amount of movement

mm

500

The maximum distance from the work surface to the spindle center

mm

650

maximum capacity of table(include disc)

kg

300

Work table

Work Table T shape slot

mm*N

13*2

Average oil feed rate

m/min

5-25

MPG feed

mm

15



MPG feed



mm

0.001/0.01/0.1



mm

0.1/1/10

Back and fornt auto feeding

Inch moving feed

mm

optional

Continue feeding

mm/min

1000



mm

50-1000

Max movement

mm

430

Up and down movement

MPG feeding



mm

0.001/0.01/0.1



mm

0.1/1/10

Auto feeding



mm

0.001-0.05



mm

0.001-0.01



move up and down

m/min

0--2000

Grinding wheel

Grinding wheel size

mm

400*40*127

Spindle speed

R.p.m

200-1800

Spindle diameter

mm

110

motor

Spindle motor

KW

7.5HP

Up and down servo motor

KW

1.3

Front and rear servo motor

KW

0.85

Flush motor

KW

0.5

Hydraulic motor

KW

3.7

weight

net weight

kg

3400

Gross weight

kg

3600

size

Machine height

mm

2200










Packaging & Shipping
Standard package,wooden case.  We are located in Kunshan city, close to Shanghai port, it is very convenient to transport.
surface grinding machine
Our Services

 For the love of God we promise customers as follow:

1. Our product quality warranty is one year, except for man-made damage,and consumables such as grinding wheel and wire rope

except also.

2. We also have technical support and online service, If you have any problems with the use or technical problems above, we have a dedicated engineer to solve the problem or give professional advice in 24hours.

surface grinding machinesurface grinding machine

Company Information

MaAnShan Kuroda Intelligent Technology Co., Ltd.   is Taiwan Yalita set up a grinding machine manufacturing base in the mainland market. The factory area is 12,000 square meters. We can complete the entire production process from design, manufacture and assembly. Processing equipment includes six large machining centers and two imported horizontal boring and milling centers. It is one of the precision grinding machines and CNC machine tool manufacturing bases in mainland China. It has technology research and new product development. Jiangsu high-tech enterprises, private high-tech companies We have passed ISO9000 2008 quality management certification EU product safety CE certification We have obtained 34 national new patents. Our company has six large gantry machining centers and two imported horizontal boring and milling centers. Large-scale laser laser cutting machine 1, CNC bending machine, plate gold spray water lines. With an annual output of more than 1000 grinders, CNC milling machine more than 1,000 units of the scale, sheet metal processing 5000 sets of assembly processing capacity. Plant area of 12,000 square meters 30 years of grinding industry experience, to provide you with one-stop grinding solutions!

We mainly produce precision surface grinding machines, centelless grinding machines, machining centers, and engaving and milling

surface grinding machinesurface grinding machinesurface grinding machinesurface grinding machinesurface grinding machine

FAQ

 Why choose Kuroda?

1. In the field of grinding, CNC grinding is a leading position in China. In the field of forming grinding, we have been adhering to the past 29 years and serving more than 5,400 customers.

2.Products from the development, design, manufacture, assembly of the entire production process are carried out between plants, with a complete production chain. Is your most reliable guarantee.

surface grinding machinesurface grinding machinesurface grinding machinesurface grinding machinesurface grinding machine



Does Yalita has an automatic grinder model as Well?

Yes, in order to ensure high precision, most of our small-size grinders are manual grinders, but they can also be changed to automatic or even CNC grinders according to the needs of customers, but the price is not the same.



Does the standard accessories are included in the price?

Yes, all of our prices include standard accessories and also taxes include.



How does the product guarantee machining accuracy?

The concept of traditional scratching technology We have always insisted on the traditional processing technology, we do not pursue the quantity, strictly grasp the quality. Every machine is carefully designed. Today we spend an hour and the machine can serve you for more than a year.
