cnc vmc machine

Name: cnc vmc machine
Brand: YASHIDA
Price: USD $26,500 - 51,000 / Set

FOB Price

USD $26,500 - $51,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Shanghai port
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	YASHIDA	Place of Origin:	Anhui, China	Type:	Vertical
Certification:	ISO9001 CE	After-sales Service Provided:	Overseas third-party support available	Warranty:	12 Months
Weight:	7000 KG	Dimension(LWH):	270023002600 mm	Voltage:	380V
Condition:	New	Power(W):	7.5 kw

Product Description

Products Show

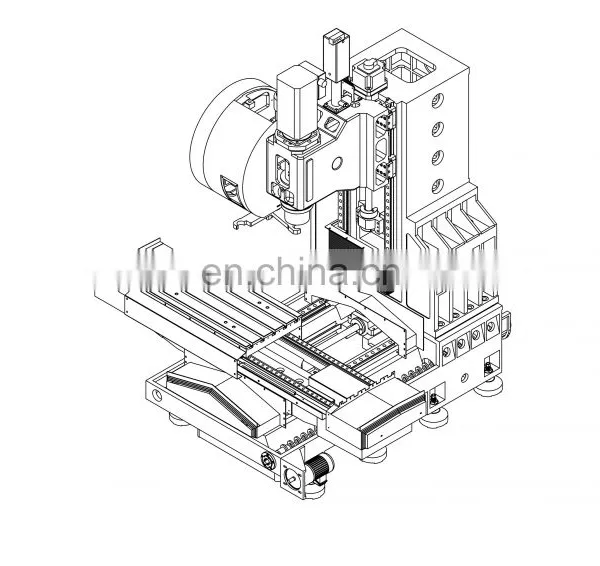

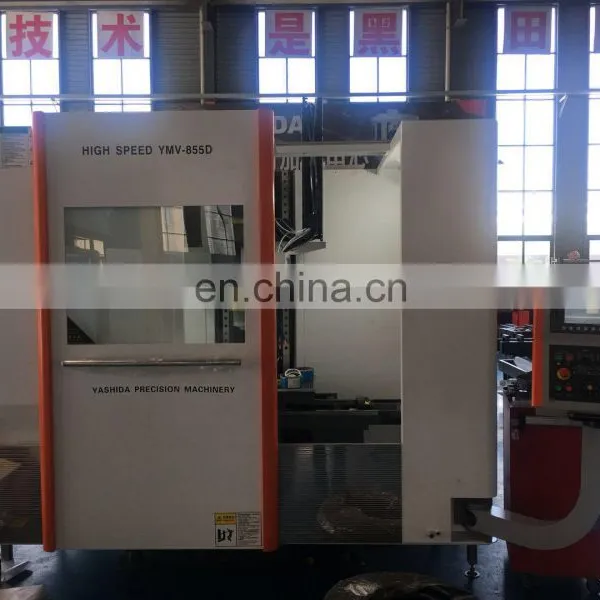

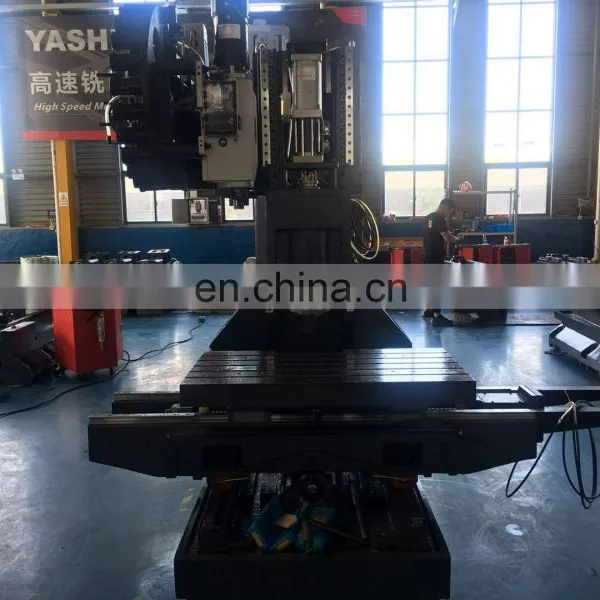

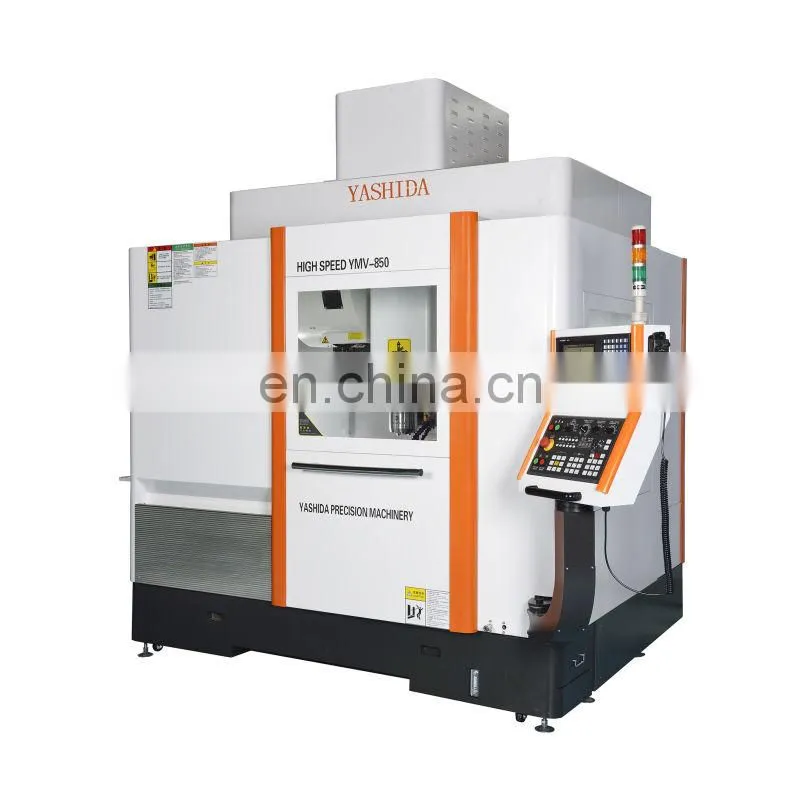

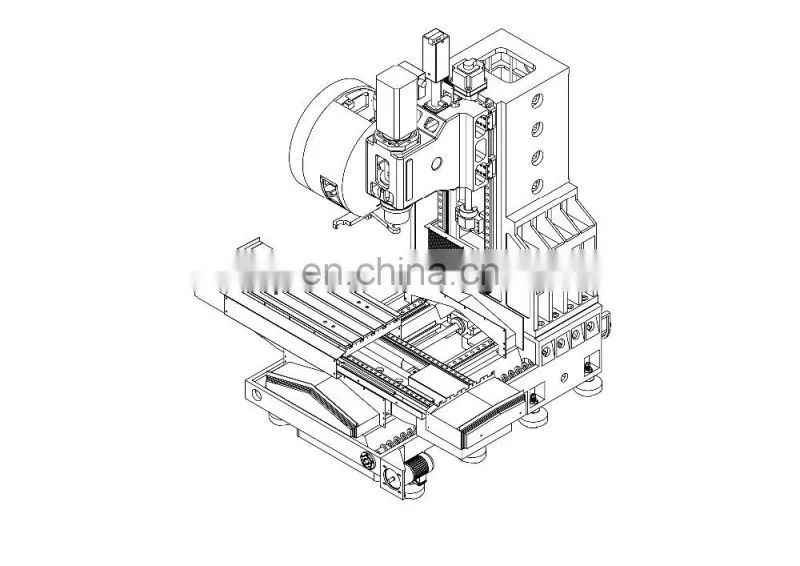

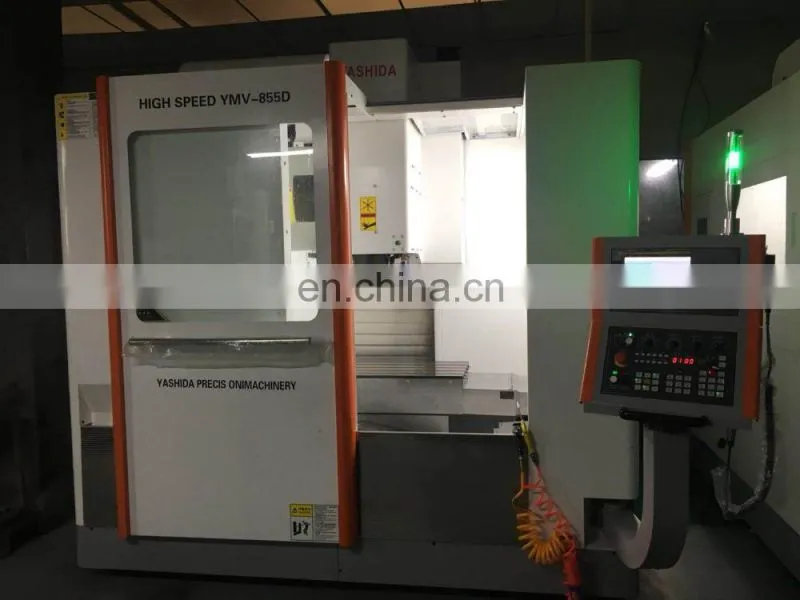

YASHIDA 855 VERTICAL MACHINE CENTER

Machine features

1.Fully cover protection

2. X/Y/Z roller track

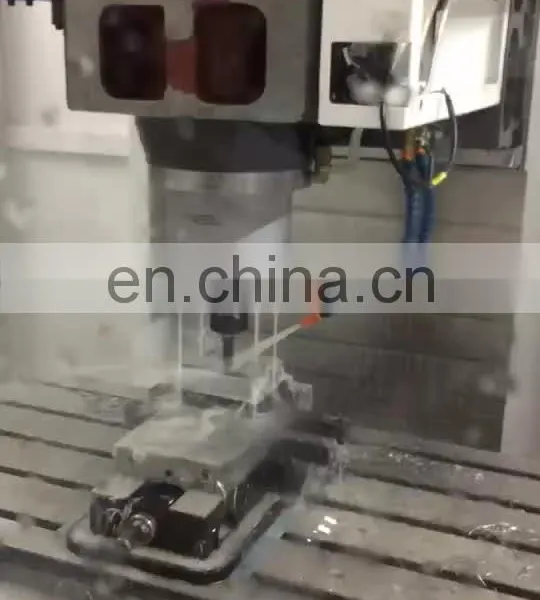

3.Cutting coolant system
4.Automatic centralized lubrication system
5.Spindle blowing device

Product Description

SPECIFICATIONS		UNIT	YASHIDA 855
Worktable	Table size	mm	800x550
	T slot(number/width/distance of T-slot)	mm	5-18-80
	Max. load of worktable	kg	600
Machining range	Longitudinal travel	mm	850
	Cross travel	mm	550
	Vertical travel	mm	550
Spindle	Spindle nose to table surface	mm	150-650
	Spidle axis to column surface	mm	545
	Spindle taper	--	BT40
	Speed Range	rpm	OPT12000
Feed	Cuttiing feed X/Y/Z	mm / min	1-10000
Feed	Rapid feed X/Y/Z	m / min	40/40/30
Tool magazine	Tool magazine capacity	piece	24
	Tool magazine type	--	Carousel
	Tool changing time (tip to tip)	s	3
Accuracy	Positioning accuracy	mm	±0.004
Accuracy	Repeat positioning accuracy	mm	±0.004
Others	Air pressure	Mpa	5---6

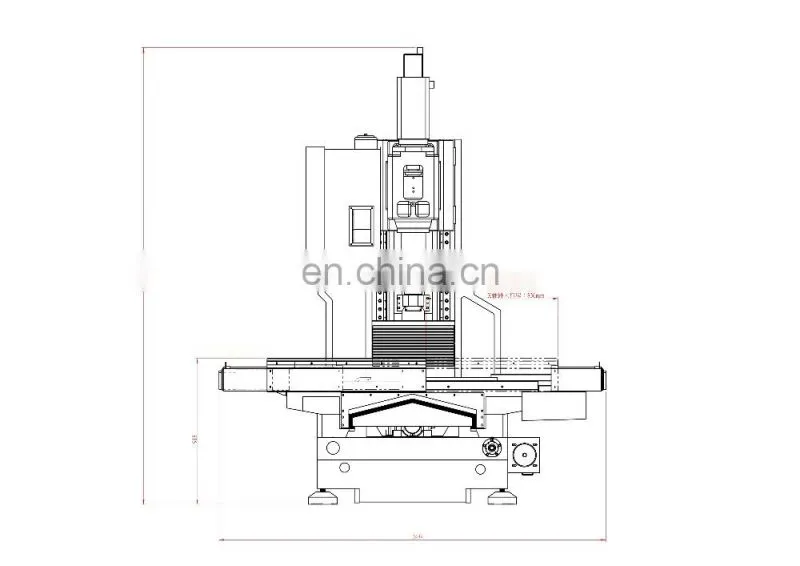

	Overall dimension	mm	2700x2300x2600
	Machine weight	kg	7000kg

Standard Accessories
1. Milling chuck group of BT40 handle 1set	5.6-inch flat nose pliers 1pc
2. Combined pressure plate 1set	6. The oil cooler 1pc
3. The unloading knife holder 1pc	7.24 BD knife library 1set
4. Tools and toolbox 1set	8.Back row spiral chip removal 1pc

Attention to precision and stability of the production concept

X, Z axis integral design VS separate design --- precision more stable.

High - rigidity 6 slider VS4 slider - more contact surface

Steady

HT300 high quality castings and honeycomb structure design total weight nearly 7 tons VS4.5 tons - good deformation resistance and stability.

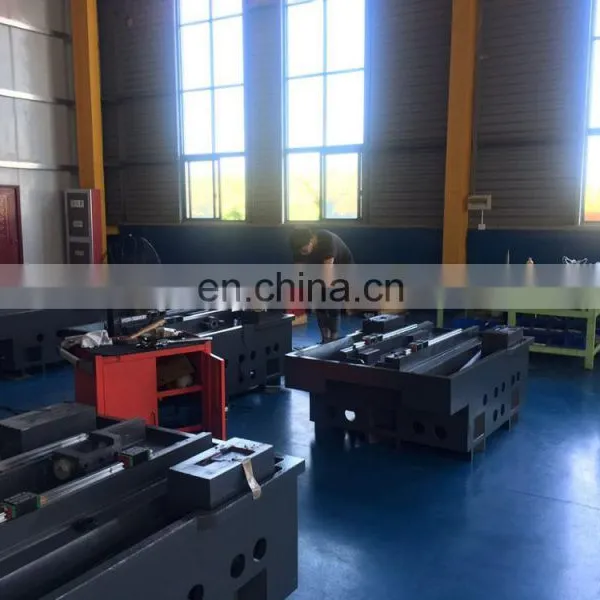

Imported advanced equipment manufacturing quality, the whole process can be traced back to a few advanced manufacturing plants in east China!

Our Company

Company Profile

Established in January 2017, the registered capital is 10 million yuan. Its predecessor was Kunshan Risedian Precision Machinery Co., Ltd. Established a core parts R&D center in Taiwan, Kunshan Operation Center, and a standard manufacturing plant in Maanshan, Anhui. At present, the production base is in Maanshan, with a plant area of 12,000 square meters and a staff of 104.

Main business

The company is mainly engaged in the production, manufacture and sales of five major categories of manual grinding machines, centerless grinding machines, CNC grinding machines, high-speed washing machines and high-speed machining centers. The products are widely used in aerospace, automotive electronics, new energy and environmental protection. Equipment, military and other fields

Production capacity

After the project is put into production, the designed production capacity is 1000 grinding machines, 1000 CNC engraving and milling machines, and 5000 sets of sheet metal equipment processing capacity mainly cover East China .North China South China and overseas emerging markets. Currently serving more than 6,000 companies

Our company has six large gantry machining centers and two imported horizontal boring and milling centers. Large-scale laser laser cutting machine 1, CNC bending machine, plate gold spray water lines. With an annual output of more than 1000 grinders, CNC milling machine more than 1,000 units of the scale, sheet metal processing 5000 sets of assembly processing capacity. Plant area of 12,000 square meters 30 years of grinding industry experience, to provide you with one-stop grinding solutions!
We mainly produce precision surface grinding machines, centelless grinding machines, machining centers, and engaving and milling machine.

Our Service

Pre-Sales Service

For the love of God we promise customers as follow:
Our product quality warranty is one year, except for man-made damage,and consumables such as grinding wheel and wire rope except also.

After-Sales Service

We also have technical support and online service, If you have any problems with the use or technical problems above, we have a dedicated engineer to solve the problem or give professional advice in 24hours.

Packing & Delivery

PACKAGING
Size	2700(L) * 2300(W) * 2600 (H)
Weight	7000kg
Packaging Details	Standard package,wooden case. We are located in Kunshan city, close to Shanghai port, it is very convenient to transport.

Customer Photo

CUSTOMER VISIT

Customers come to our processing base to know products and negotiate with us.

SALES NETWORK

Our company has more than 50 distributor in China, covering 13 provinces,the foreign business covers the whole world.It involves 16 countries and regions,including Southeast Asia market,European and American markets.

FAQ

Q1: Why choose Kuroda?

A: 1. In the field of grinding, CNC grinding is a leading position in China. In the field of forming grinding, we have been adhering to the past 29 years and serving more than 5,400 customers.

2.Products from the development, design, manufacture, assembly of the entire production process are carried out between plants, with a complete production chain. Is your most reliable guarantee.

Q2: Does Yalita has an automatic grinder model as Well?

A : Yes, in order to ensure high precision, most of our small-size grinders are manual grinders, but they can also be changed to automatic or even CNC grinders according to the needs of customers, but the price is not the same.

Q3: Does the standard accessories are included in the price?

A: Yes, all of our prices include standard accessories and also taxes include.

Q4: How does the product guarantee machining accuracy?

A: The concept of traditional scratching technology We have always insisted on the traditional processing technology, we do not pursue the quantity, strictly grasp the quality. Every machine is carefully designed. Today we spend an hour and the machine can serve you for more than a year.

If you have another question, pls feel free to contact us as below:

YASHIDA525 horizontal grinder

95.8% Response Rate

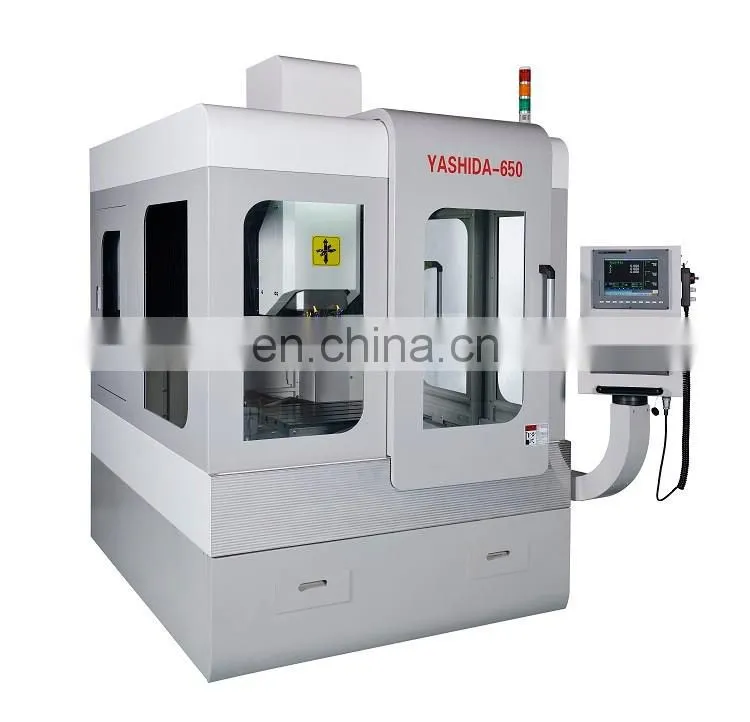

YASHIDA 650 CNC
