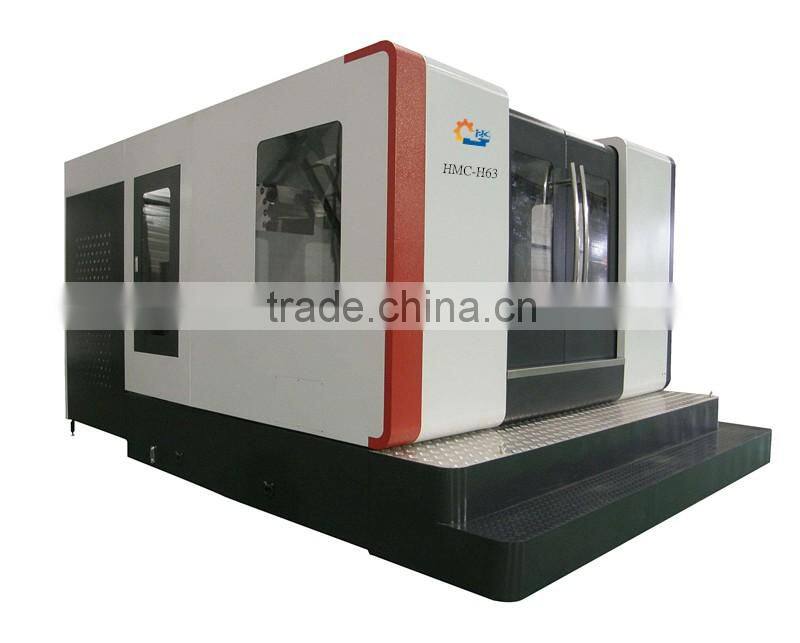

H63/2 Cheap Aluminum Cnc Machining Service for Mold Making

Machining Center
H63/2 Cheap Aluminum Cnc Machining Service for Mold Making thumbnail-1
H63/2 Cheap Aluminum Cnc Machining Service for Mold Making thumbnail-2
H63/2 Cheap Aluminum Cnc Machining Service for Mold Making thumbnail-3
H63/2 Cheap Aluminum Cnc Machining Service for Mold Making thumbnail-4
H63/2 Cheap Aluminum Cnc Machining Service for Mold Making thumbnail-5
H63/2 Cheap Aluminum Cnc Machining Service for Mold Making thumbnail-6
H63/2 Cheap Aluminum Cnc Machining Service for Mold Making photo-1
H63/2 Cheap Aluminum Cnc Machining Service for Mold Making photo-2

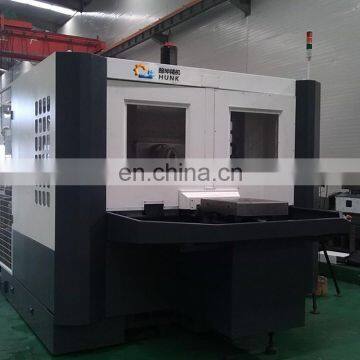

H63/2 Cheap Aluminum Cnc Machining Service for Mold Making photo-3
H63/2 Cheap Aluminum Cnc Machining Service for Mold Making photo-4
H63/2 Cheap Aluminum Cnc Machining Service for Mold Making photo-5
H63/2 Cheap Aluminum Cnc Machining Service for Mold Making photo-6
US$ 85,180 - 95,980 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HANKUI
Place of Origin:
Shandong, China
Model Number:
H63
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao for H63/2 cheap aluminum cnc machining service for mold making
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HANKUI
Place of Origin Shandong, China
Model Number H63
Type Horizontal
Certification ISO CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 Months
Weight 8000kg
Dimension(L*W*H) 2.9*2.6*2.7 m
Voltage Customer's Requirement
Condition New
Power(W) 15~22KW

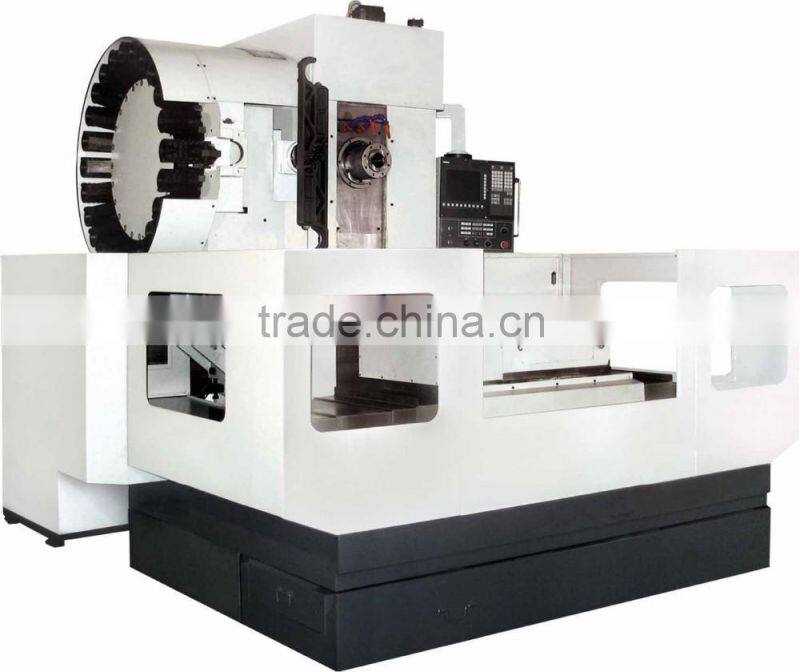

Product Description

After the complete set of spindle assembling under the condition of constant temperature, all the spindles need to correct the balance and running test through the computer, which can make the complete set of spindles long service life and high reliability.

Item
H63



           worktable
500×600mmWorktable size
630×700mm
Worktable quantity
1
Indexing unit
0.001°
Max. load
950kg
Max. workpiece swing dia.
￠820mm

                Travel
X axis travel
1050mm
Y axis Headstock travel
750mm
Z axis column travel
900mm


             Spindle BT50
speed
6000rpm
Spindle center line to table surface
120～870mm
Distance between spindle nose to table center
130～1030mm

             Rapid speed
X, Y, Z axis
36m/min
B axis
10r/min

      Positioning accuracy
X, Y, Z axis
0.01
B axis
10″

    Re-positioning accuracy
X, Y, Z axis
0.006
B axis
5″



            controller



          FANUC（standard）,              SIEMENS Mitsubishi                KND(optional)
X axis servo motor
22～30N.m
Y axis servo motor
30N.m
Z axis servo motor
22～30N.m
B axis servo motor
12N.m
Spindle servo motor
15～22KW
APC servo motor
8N.m
                   Dimension
4425×2890×2685 mm
                       G.W
9000kg

The characteristics

◇The main motor is located in the center of the spindle box, so the stress and the thermal deformation is symmetrical, and it also has a good thermal stability.


Detailed Images

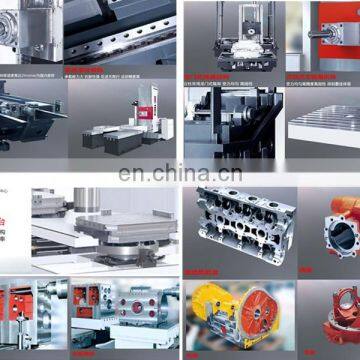

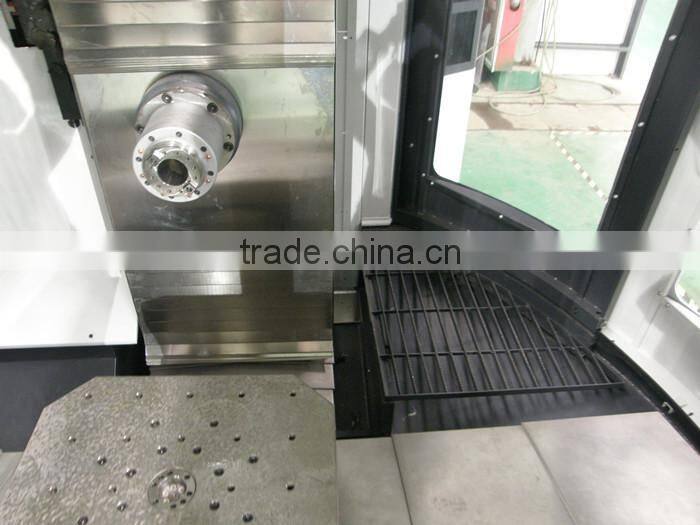

Machine Parts


The system has a perfect and reliable interlocking, safety protection and fault diagnosis alarm functions etc.


Cooling system
The volume of water tank: 100L

The power of cooling pump: 180 W

The flow rate of cooling pump: 92 L/min

The rated head: 10m
Certifications
Our Company


Our company is specializing in the production of CNC for 2 decades, and we have passed the
ISO9000 certification and the right of import and export. Our company has owned 10 patent
technologies at present, including the appearance, design, the utility model of machine and so
on. And our company is a provincial high-tech enterprises.

Packing & Delivery

                                        Packaging



Packaging Details
Packaging Detail: High quality wooden case or According to the customer's requirements.

Delivery Detail:Within 35 working days after receiving your deposit.

According to the customer's requirements.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ

Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in orderto keep your business running.

Q: Once we've bought a machine from you, are you able to supply us with material?

A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A: T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
