GMC2016 CNC Lathe Gantry Machining Center Hot Sale
- 10 Set / Sets per Month
- Qingdao
- T/T Credit Card
Product Details
Brand Name: | HANKUI | Place of Origin: | Shandong, China | Model Number: | GMC |
Type: | Gantry | Certification: | ISO CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 12 Months | Weight: | 5000kg-10000T | Dimension(L*W*H): | Models |
Voltage: | Customer's Requirement | Condition: | New | Power(W): | 11/15kw |
Product Description
Jinan Hankui International Trade Co.,Ltd
Shandong Hunk Precision Machinery Co.,Ltd
We are a privately held producer of CNC machine for metal / alloy parts processing and other mold machining . Our company lies in the capital of Shandong province which is located
in North China. We have been engaged in the production for more than 20 years and we are devoted to quality product, reliable service, and providing a comprehensive support system for all our customers. Our equipments have also been certificated by CE, ISO, TUV authorities. So, don't worry anthing
GMC2016 Small CNC machining center Made in china
Exhibition
Customers visiting the factory and check the equipment
Superb craftsmanship
Technical Parameter
Resin sand casting |
Direct-type spindle (Taiwan) |
Ball screw and precision nut (Taiwan) |
Pressurizing cylinder (Taiwan) |
Linear guideway (Taiwan) |
Bearing (Japan NSK) |
Guide rail shields (Taiwan) |
Electric lubrication system |
Cooling water system |
One set of air cooling pipes |
Synchronous belt wheel and belt for spindle |
FANUC (Standard), Beijing KND,SIEMENS,MITSUBISHI(optional) |
Water coolant through spindle, oil cooler (optional) |
Note: The travel of X/Y/Z can be customized |

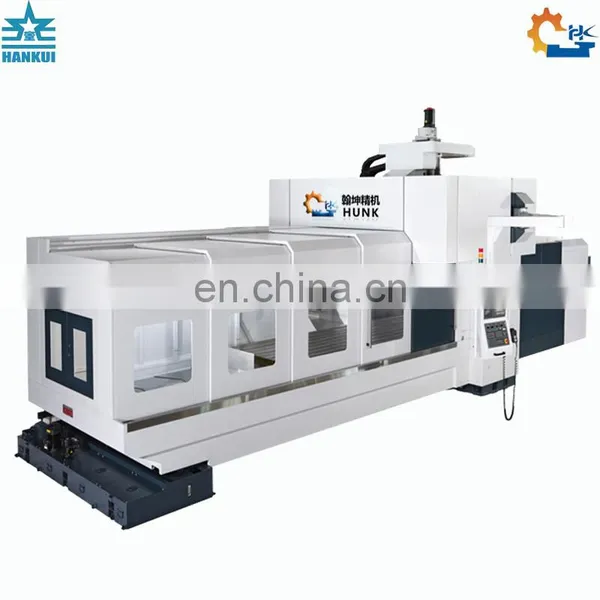

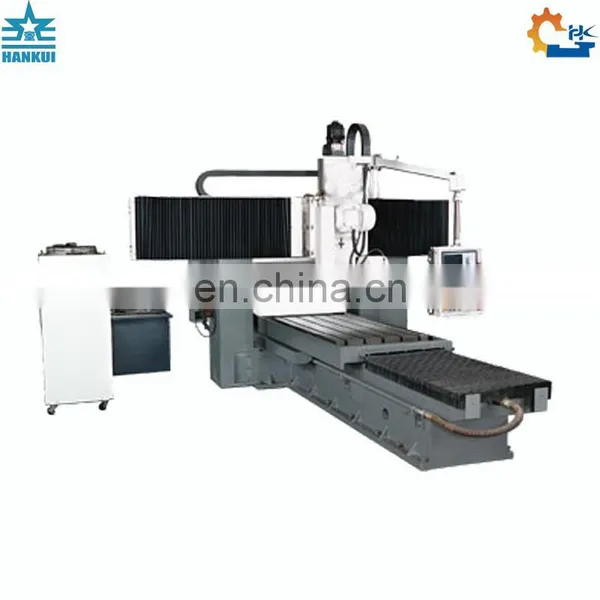

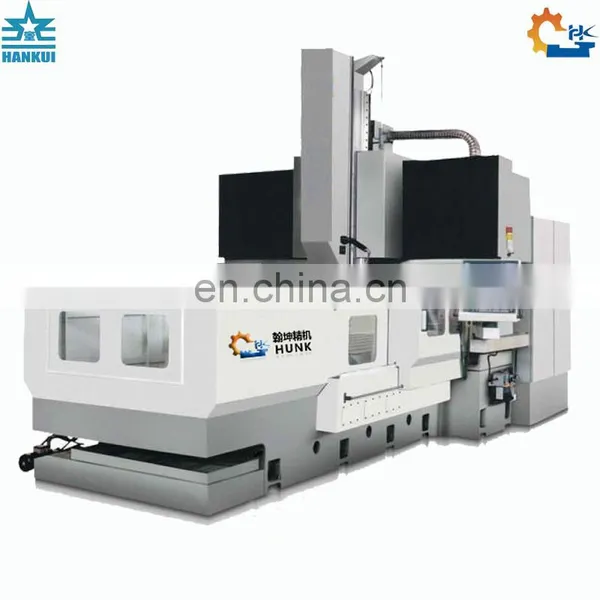

Machine Pictures and Detailed Configurations
Item | Unit | GMC1210(The smallest size) |
Worktable size | mm | 1200x900 |
T Slot size | mm | 4-22-150 |
Max. Load | kg | 2000 |
X travel | mm | 1200 |
Y travel | mm | 1000 |
Z travel | mm | 800 |
Distance from spindle nose to table | mm | 50-850 (140-900) |
Ditance between two column | mm | 1000/1100 |
Spindle speed | r/min | 6000 |
Spindle tapper | BT40/BT50 | |
Motor power | kw | 11 |
X/Y rapid Travel speed | m/min | 20 |
Z rapid Travel speed | m/min | 15 |
Cutting feed | mm/min | 5-8000 |
Guide way | X/Y/Z linear guide way | |
X/Y/Z Positioning accuracy | mm | 0.022 |
X/Y/Z re-Positioning accuracy | mm | 0.012 |
Tool magazine | 24 | |
Max. diameter/ length | mm | φ200/350 |
Max. weight | kg | 15 |
Controller system | Fanuc,SIEMENS, Mitsubishi | |
Machine N.W | t | 9 |
L*W | m | 4.5x2.8 |
Packaging And Delivery
Packaging: Wooden case and other protective material
Delivery by the sea transport
Or as customer's requirements
