Home > Products > Gantry Machining Center > 3 axis 4 axis 5 axis cnc machining aluminum milling machine list

3 axis 4 axis 5 axis cnc machining aluminum milling machine list

Name: 3 axis 4 axis 5 axis cnc machining aluminum milling machine list
Brand: HANKUI
Availability: InStock

FOB Price

USD $29,800 - $56,700 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HANKUI	Place of Origin	Shandong, China
Model Number	GMC	Type	Gantry
Certification	ISO CE	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	12 Months	Weight	5000kg-10000T
Dimension(LWH)	Models	Voltage	Customer's Requirement
Condition	New	Power(W)	11/15kw

Product Description

Jinan Hankui International Trade Co.,Ltd

Shandong Hunk Precision Machinery Co.,Ltd

We are a privately held producer of CNC machine for metal / alloy parts processing and other mold machining . Our company lies in the capital of Shandong province which is located

in North China. We have been engaged in the production for more than 20 years and we are devoted to quality product, reliable service, and providing a comprehensive support system for all our customers. Our equipments have also been certificated by CE, ISO, TUV authorities. So, don't worry anthing

3 axis 4 axis 5 axis cnc machining aluminum milling machine list

Exhibition

Customers visiting the factory and check the equipment

Superb craftsmanship

Technical Parameter

The main configuration

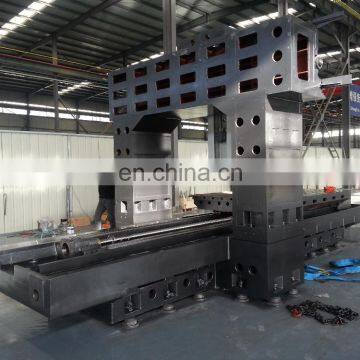

Resin sand casting

Direct-type spindle (Taiwan)

Ball screw and precision nut (Taiwan)

Pressurizing cylinder (Taiwan)

Linear guideway (Taiwan)

Bearing (Japan NSK)

Guide rail shields (Taiwan)

Electric lubrication system

Cooling water system

One set of air cooling pipes

Synchronous belt wheel and belt for spindle

FANUC (Standard), Beijing KND,SIEMENS,MITSUBISHI(optional)

Water coolant through spindle, oil cooler (optional)

Note: The travel of X/Y/Z can be customized

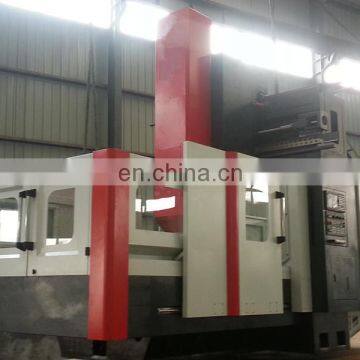

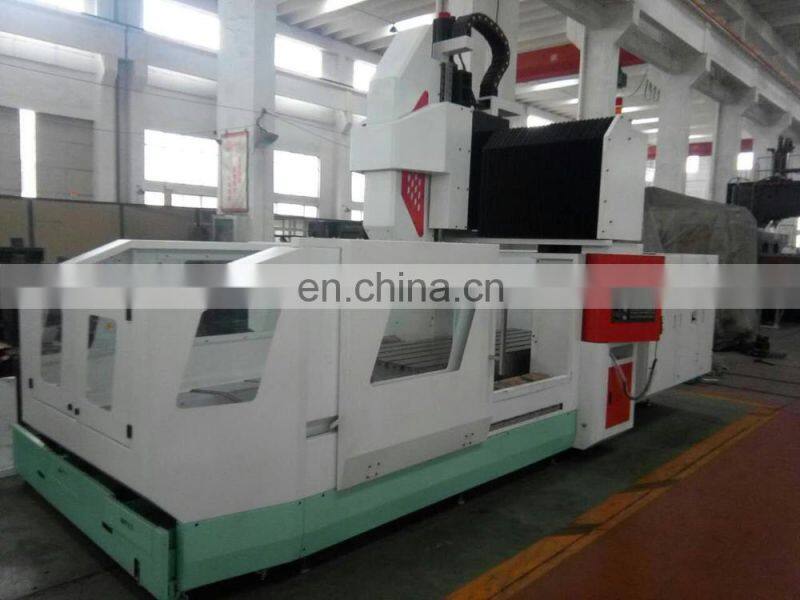

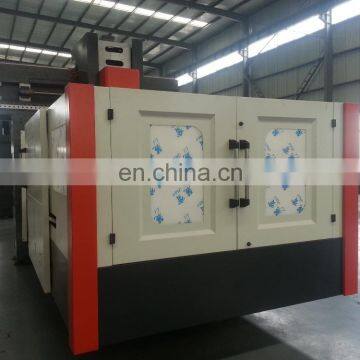

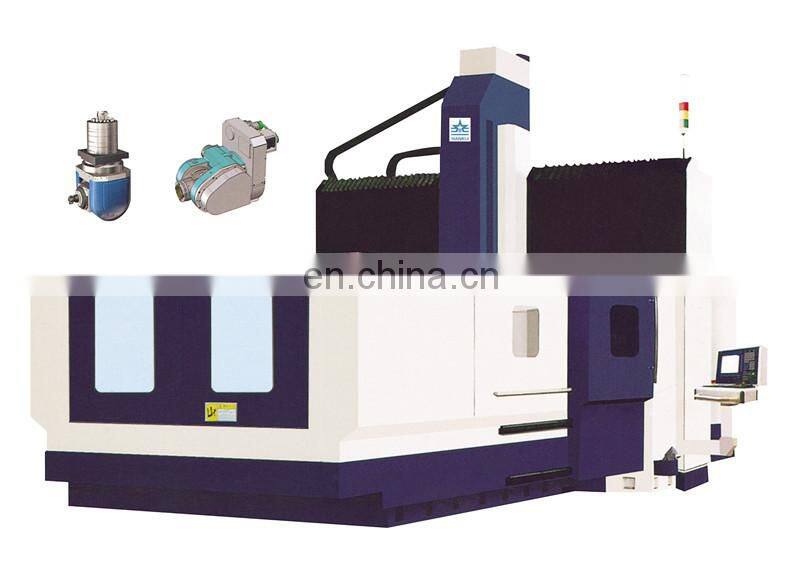

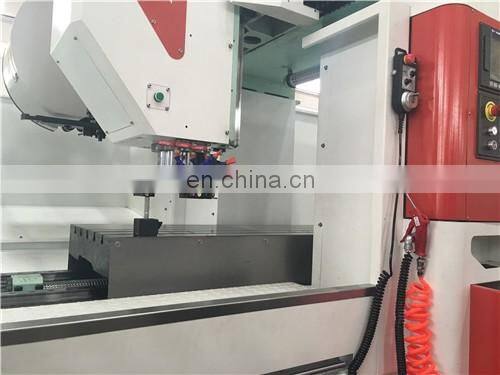

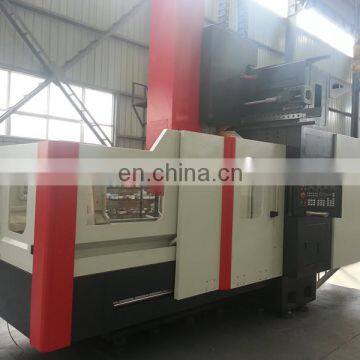

Machine Pictures and Detailed Configurations

Item	Unit	GMC1210(The smallest size)
Worktable size	mm	1200x900
T Slot size	mm	4-22-150
Max. Load	kg	2000
X travel	mm	1200
Y travel	mm	1000
Z travel	mm	800
Distance from spindle nose to table	mm	50-850 (140-900)
Ditance between two column	mm	1000/1100
Spindle speed	r/min	6000
Spindle tapper		BT40/BT50
Motor power	kw	11
X/Y rapid Travel speed	m/min	20
Z rapid Travel speed	m/min	15
Cutting feed	mm/min	5-8000
Guide way		X/Y/Z linear guide way
X/Y/Z Positioning accuracy	mm	0.022
X/Y/Z re-Positioning accuracy	mm	0.012
Tool magazine		24
Max. diameter/ length	mm	φ200/350
Max. weight	kg	15
Controller system		Fanuc,SIEMENS, Mitsubishi
Machine N.W	t	9
L*W	m	4.5x2.8

Packaging And Delivery

Packaging: Wooden case and other protective material

Delivery by the sea transport

Or as customer's requirements

Service

1. The equipment is guaranteed for 13 months warranty for the machine, and we supply

maintenance all life for free.

2. Professional technology support team could guide your equipment’s installation.

3. Technical support by phone, e-mail, Skype, MSN or Remote around the clock.

4. Supplying friendly English version.

5. Other service can negotition.
