Double Column Cnc Gantry Milling Machine Center Frame

Name: Double Column Cnc Gantry Milling Machine Center Frame
Brand: HANKUI
Availability: InStock

FOB Price

US$ 130,000 - 150,000 / Set

1 Set(Min. Order)

Port China Port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HANKUI	Place of Origin	Shandong, China
Model Number	GMC3022	Type	Gantry
Certification	ISO CE	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	12 Months	Weight	30t
Dimension(LWH)	7.5*4.5m	Voltage	Customer's Requirement
Condition	New	Power(W)	22kw

Product Description

Application Industry

Product Description

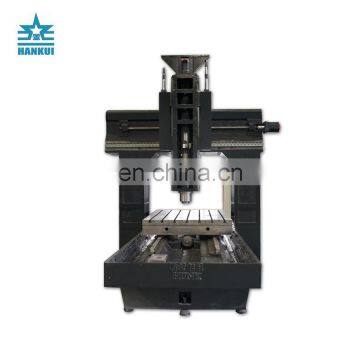

Double Column Cnc Gantry Milling Machine Center Frame

1. The gantry machining lathe is a kind of gantry frame type machining center with fixed beam and removable workbench.

2. It is of the advanced level among similar lathe, and it is a kind of advanced equipment with high efficiency, high precision and high reliability.

3. It is widely used in general machinery, aviation, aerospace, automotive, nuclear industry, energy, mould, locomotive, heavy duty machine, engineering machinery, ships, machine tools, electronics, printing, textile and other manufacturing industries.

The characteristic of our gantry machine center:

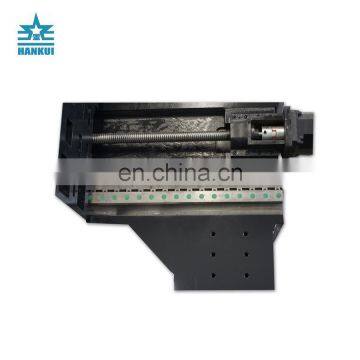

1. X/Y/Z axis all adopts overloading roller guides.

2. Equipped with double screw chip conveyor, clean waste residue automatically.

3. Using the methods of finite element to analyze machanics.

4. Twice artificial aging treatment, good stability and high intensity.

Standard Configuration:

Taiwan Spindle
Taiwan Cylinder
Taiwan Ball Screw
Servo Main Motor
Tri-Color Warning Light
Automatic Lubrication
Full Enclosed Cover

Optional Configuration:

Chip Conveyor
40/60 tools chain type magazine
Full Closed-loop Control
30 Tools Umberlla Type Magazine
CNC 4TH/5TH Axis
Hydraulic Indexing Head
Angl
CNC Controller: Siemens/Fanuc/Mitsubishi

Technical Parameter:

Item	Unit	GMC1513
Worktable size	mm	1500*1000mm
T Slot size	mm	5-22-150
Max. Load	kg	3000
X travel	mm	1500
Y travel	mm	1200
Z travel	mm	800
Distance from spindle nose to table	mm	50-850 (140-900)
Ditance between two column	mm	1300
Spindle speed	r/min	6000
Spindle tapper		BT50
Motor power	kw	15
X/Y rapid Travel speed	m/min	20
Z rapid Travel speed	m/min	15
Cutting feed	mm/min	5-8000
Guide way		X/Y/Z linear guide way
X/Y/Z Positioning accuracy	mm	0.022
X/Y/Z re-Positioning accuracy	mm	0.012
Tool magazine		24
Max. diameter/ length	mm	φ200/350
Max. weight	kg	15
Controller system		Fanuc,SIEMENS, Mitsubishi
Machine N.W	t	13
L*W	m	5*3

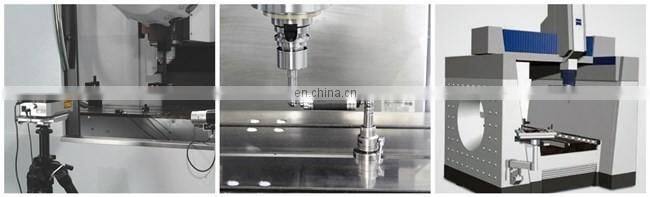

Quality Test

Our Company

Jinan Hankui international trade co., ltd

Certifications

We have passed the ISO9001:2008 international quality management system authentication. “Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you. Welcome to visit our factory.
