Home > Products > Gantry Machining Center > GMC China Supplier Fanuc Controller Cnc Milling Machine Price

GMC China Supplier Fanuc Controller Cnc Milling Machine Price

FOB Price

US$ 95,000 - 95,000

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HANKUI/HUNK/OEM	Place of Origin	Shandong, China
Type	Gantry	Certification	ISO9001 CE SGS
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	12 Months
Weight	16ton	Dimension(LWH)	5.5x3.5
Voltage	Customer's Requirement	Condition	New
Power(W)	18.5kw

Product Description

Our Company

Jinan Hankui international trade co., ltd,

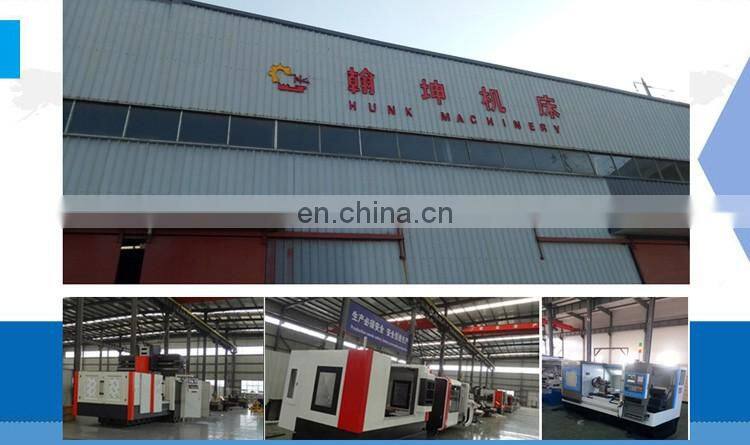

which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.

The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc.

With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.

Now our products have a large market share and have a high popularity in domestic. Sales and services network have been established in many provinces and cities. Our products have been sold to America, South East Asia, Russia and Middle East countries with high reputation.

Certifications

We have passed the ISO9001:2008, CE, SGS international quality management system authentication.

Product Description

GMC2016 Top China Suppliers Cnc Milling Machines for Automobile

HIGH SPEED CNC VERTICAL MACHINING CENTER/ Double column CNC milling machine/gantry cnc machining center

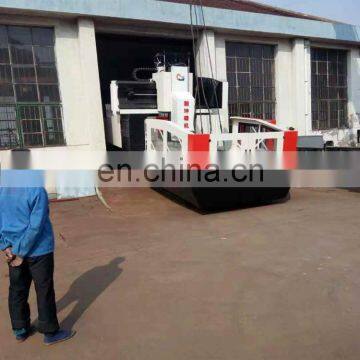

Gantry machine center applies fixed beam type double vertical shafts gantry framework structure with cross layout, stable and reliable machine tool.

Famous brand high speed spindle, and its speed transmission unit fit for heavy cutting in a low speed.Suited to precision machining for the industries such as automobile, aerospace, moto vehicle, textile machinery, packaging machinery, mould making,etc. Multi-processing like Milling, drilling, boring, tapping can be completed automatically by the machine tool.

Technical Parameter

Item	Unit	GMC1090	GMC1210	GMC1513	GMC2016	GMC2518	GMC3022
Worktable Size	mm	900X1000	1200x900	1500x1000	2000x1300	2500x1600	3000x2000
T Slot Size	mm	4-22 -100	4-22-150	5-22-150	7-22-150	8-22-150	9-22-180
Max. Load	kg	1000	2000	3000	4000	5000	6000
X Travel	mm	900	1200	1500	2000	2500	3000
Y Travel	mm	1000	1000	1200	1600	1800	2200
Z Travel	mm	650	800	800	800	800	1000
Distance from spindle nose to table	mm	50-650	50-850 (140-900)	50-850 (140-900)	50-970(200,250,300)	250-1250	250-1250
Distance between two column	mm	1100	1000/1100	1300	1650	1800	2200
Spindle Speed	r/min	15000 With	6000	6000	6000	6000	6000
Spindle Tapper		Hvct(ElectricSpindle,Motor Spindle),BT30	BT40/BT50	BT50	BT50	BT50	BT50
Motor Powder	kw	5.5	11	15	18.5	22	22
X/Y rapid Travel Speed	m/min	30	20	20	20	20	20
Z rapid Travel Speed	m/min	20	15	15	15	15	15
Cutting feed	mm/min	5-15000	5-8000	5-8000	5-8000	5-8000	5-8000
Guide Way		X/Y/Z linear guide way	X/Y/Z linear guide way	X/Y/Z linear guide way	X/Y/Z linear guide way	X/Y/Z linear guide way	X/Y/Z linear guide way
X/Y/Z Positioning accuracy X/Y/Z	mm	0.015	0.022	0.022	0.022	0.022	0.022
X/Y/Z re-Positioning accuracy X / Y / Z	mm	0.010	0.012	0.012	0.012	0.012	0.012
Tool magazine		16	24	24	24	24	24
Max. diameter/ length	mm	Φ30/ Φ80	φ200/350	φ200/350	Φ250/400	Φ300/500	Φ300/500
Max. Weight	kg	8	15	15	15	15	15
Controller system		Fanuc, SIEMENS, Mitsubishi	Fanuc, SIEMENS, Mitsubishi	Fanuc, SIEMENS, Mitsubishi	Fanuc, SIEMENS, Mitsubishi	Fanuc, SIEMENS, Mitsubishi	Fanuc, SIEMENS, Mitsubishi
Machine N.W	t	7	13	16	22	26	30
L*W	m	2.5x3	3.5x2.8	4.5x3	5.5x3.5	6.5x4	7.5x4.5

Configuration

The main configuration

Resin sand casting	Ball screw and precision nut (Taiwan)
Pressurizing cylinder (Taiwan)	Linear guideway (Taiwan)
Bearing (Japan NSK)	Guide rail shields (Taiwan)
Electric lubrication system	Cooling water system
Synchronous belt wheel and belt for spindle	FANUC (Standard), Beijing KND,SIEMENS,MITSUBISHI(optional)
Water coolant through spindle, oil cooler (optional)
Note: The travel of X/Y/Z can be customized
