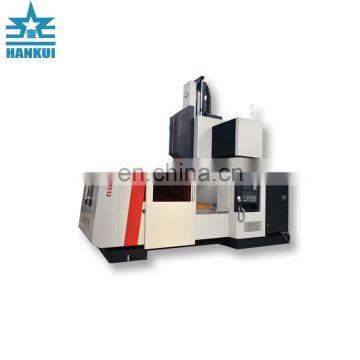

3 Axis Cnc Vertical Milling Machine GMC1210
US$ 60,000 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
hankui
Place of Origin:
Shandong, China
Type:
Gantry
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port/Shanghai port/ Other port in china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GMC1513 Good Quality Horizontal Cnc Milling Machine Price ListUS$ 49,999 - 58,000MOQ: 1 Set -
Cnc Double Column Milling Machine GMC2016US$ 79,000 - 99,000MOQ: 1 Set
-
3 Axis Cnc Milling Machine for Sale GMC1513US$ 90,000 - 90,000MOQ: 1 Set
-
Price Cnc Milling Machine New GMC2016US$ 79,000 - 99,000MOQ: 1 Set
-
Mini Cnc Milling Machine Price GMC1210US$ 60,000 - 60,000MOQ: 1 Set
Brand Name
hankui
Place of Origin
Shandong, China
Type
Gantry
Certification
CE ISO
Warranty
13 Months
Weight
9000KGS
Dimension(L*W*H)
4500*2800mm
Voltage
380V/50HZ/60HZ
Condition
New
Power(W)
11KW
3 axis cnc vertical milling machine GMC1210
Product Description
Technical parameters
| Item | Unit | GMC1210 | GMC1513 | GMC2016 | GMC3022 |
| Working size | mm | 1200*900 | 1500*100 | 2000*1300 | 1800*3000 |
| T slot size | mm | 4-22-150 | 5-22-150 | 7-22-150 | 9-22-180 |
| Max.load | kgs | 2000 | 3000 | 4000 | 6000 |
| X axis travel | mm | 1200 | 1500 | 2000 | 3000 |
| Z axis travel | mm | 1000 | 1200 | 1600 | 2200 |
| Y axis travel | mm | 800 | 800 | 800 | 1000 |
| Distance from spindle nose toTable | mm |
50-850 (Direct link140-900) |
50-850 (Direct link140-900) |
50-970 | 250-1250 |
| Distance between Two Columns | mm | 1000/1100 | 1300 | 1650 | 2200 |
| Spindle speed | r/min | 6000 | 6000 | 6000 | 6000 |
| Spindle Tapper | BT40/BT50 | BT50 | BT50 | BT50 | |
| Motor power | KW | 11 | 15 | 18.5 | 22 |
| X/Y axsi rapid travel speed | m/min | 20 | 20 | 20 | 20 |
| Z axis Rapid Travel speed | m/min | 15 | 15 | 15 | 15 |
| Cutting feed | mm/min | 5-8000 | 5-8000 | 5-8000 | 5-8000 |
| Guide way | X/Y/Z linear guide way | X/Y/Z linear guide way | X/Y/Z linear guide way | X/Y/Z linear guide way | |
| X/Y/Z axis Positioning accuracy | mm | 0.022 | 0.022 | 0.022 | 0.022 |
| X/Y/Z axis Re-Positioning accuracy | mm | 0.012 | 0.012 | 0.012 | 0.012 |
| Tool Magazine | 24 | 24 | 24 | 24 | |
| Tool Max.Diameter/length | mm | φ200/350 | φ200/350 | φ250/400 | φ300/500 |
| Tool Max.weight | kgs | 15 | 15 | 15 | 15 |
| Controller system | 1)SIEMENS; 2)FANUC; 3)MITSUBISHI; |
1)SIEMENS; 2)FANUC; 3)MITSUBISHI; |
1)SIEMENS; 2)FANUC; 3)MITSUBISHI; |
1)SIEMENS; 2)FANUC; 3)MITSUBISHI; |
|
| Machine N.W | t | 9 | 13 | 16 | 30 |
| Dimension | m | 4.5*2.8 | 5*3 | 5.5*3.5 | 7.5*4.5 |
Detailed Images
Packaging & Shipping
After-Sales Service
1. Company strictly observe relevant national regulations about product-quality law with techncial standard and contract requirements to track,monitor and test to ensure quality.
2. One the basis of sector standard,the products’ warranty period is within one year from the date of delivery and acceptance;
3. Set up files for every piece of sold -product and simultaneously appoint engineers to the guidance of installation and debugging process,and carry out the technical training course for operators according to the specificcase.
