CK-32L High Precision Horizontal Cnc Lathe Machine Turning

CK-32L High Precision Horizontal Cnc Lathe Machine Turning photo-1
CK-32L High Precision Horizontal Cnc Lathe Machine Turning photo-2

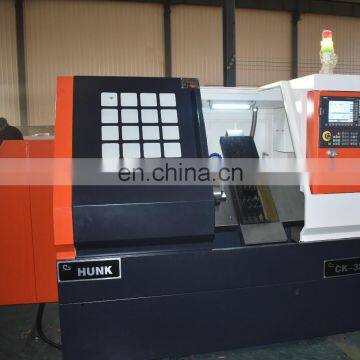

CK-32L High Precision Horizontal Cnc Lathe Machine Turning photo-3
CK-32L High Precision Horizontal Cnc Lathe Machine Turning photo-4

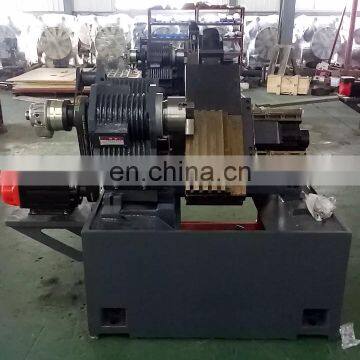

CK-32L High Precision Horizontal Cnc Lathe Machine Turning photo-5

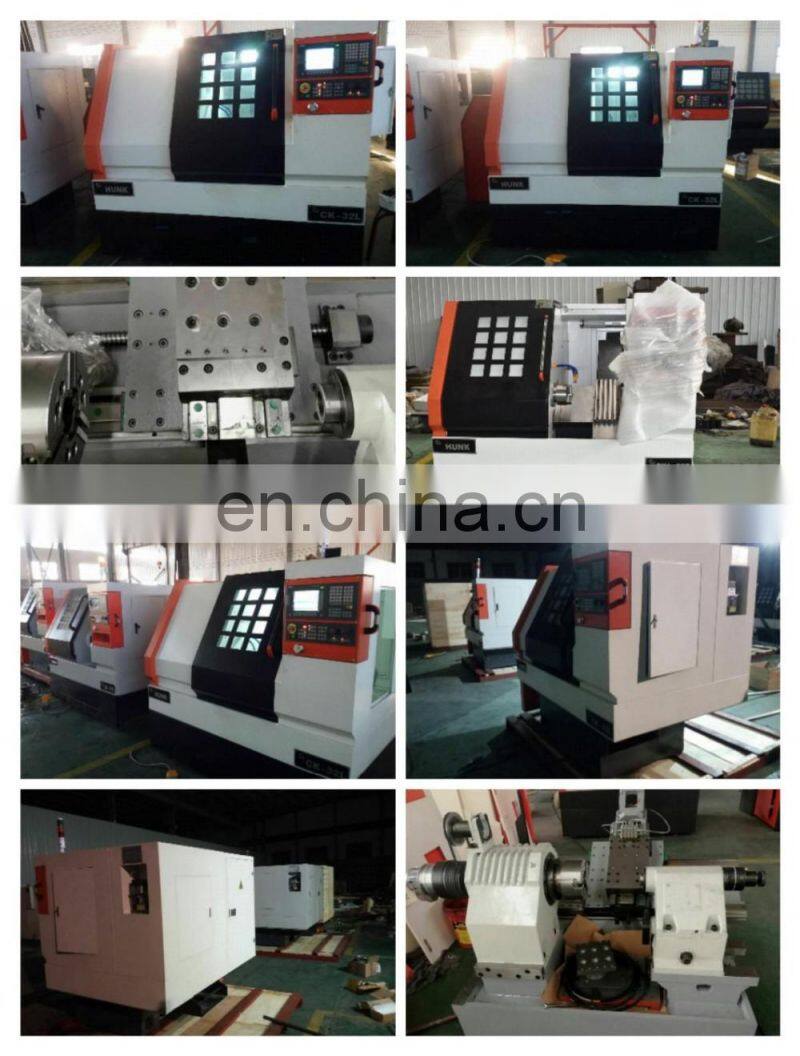

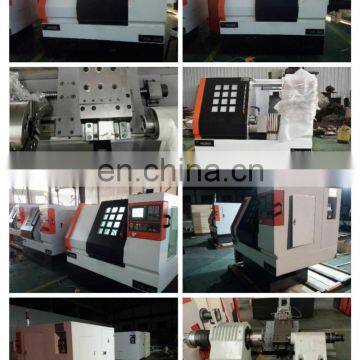

CK-32L High Precision Horizontal Cnc Lathe Machine Turning photo-6
US$ 24,800 - 25,000 MOQ: 1 set
Key Specifications
Get Latest Price
Brand Name:
HANKUI
Place of Origin:
Shandong, China
Type:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name HANKUI
Place of Origin Shandong, China
Type Horizontal
Certification ISO CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 Months
Weight 1500 kg
Dimension(L*W*H) 1.6*1.4*1.6 m
Voltage Customer's Requirement
Condition New
Power(W) 3.7(servo) kw

BSB011 CK-32L high precision horizontal cnc lathe machine turning

CK-32L high precision horizontal cnc lathe machine turning



This product uses 30 degrees of inclined type layout with one-piece hollow tubular bed, which greatly improves the flexural rigidity and torsional stiffness of machine when working.

At the same time after two aging treatment, it has improved the stability, high rigidity and stability of the machine, which ensure high accuracy of the whole machine.



What is the Details of our Slant Bed CNC Lathe?



CK-32L high precision horizontal cnc lathe machine turning

CK-32L high precision horizontal cnc lathe machine turning


Item

CK-32L



      Processing

          range
Max.swing over bed

320 mm

Max.swing over slide

160 mm

Max. processing length

350 mm

Max. cutting dia.(disc type)

200 mm

Max. bar dia.

40 mm




              spindle
Spindle speed

4000 mm

Spindle nose ISO form

A2-5

Thru-hole dia.

41 mm

Chunk dia.

160(6”)

Motor power

3.7(servo)



        Body structure
Body structure

30°integrated

X axis travel

200 mm

Zaxis travel

350 mm

X/Z axis rapid speed

24/24

        Tool holder
type


Tool size

20*20 mm



             tailstock
Tailstock sleeve dia.

52 mm

Tailstock sleeve travel

60 mm

Tailstock sleeve taper

MT4



              precision
Processing precision

IT6

Repositioning precision

X:0.006, Z:0.008

roughness

Ra.≤0.8

dimension
N.W

1500  kg

Dimension

1.6*1.4*1.6 m

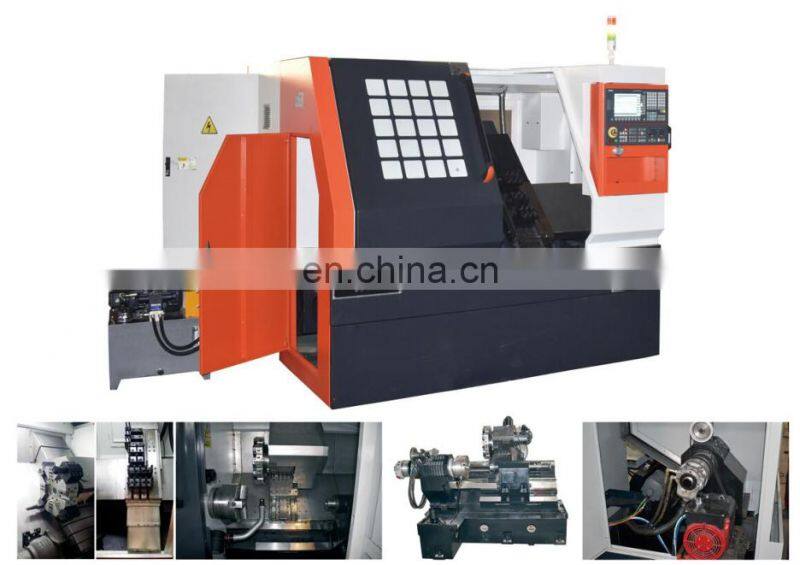

Product Picture

Product Pictures

 CK-32L high precision horizontal cnc lathe machine turning

Product Features

PRODUCT FEATURES





standard configuration

sleeve type spindle
8-station hydraulic turret
Taiwan linear guideway
Automatic lubrication
Hydraulic tailstock
Full enclosed Cover
Hollow hydraulic chuck
Tri-color warning light



Optional configuration
Automativ chip conveyor
10/12-station hydraulic turret
Servo turret



 CK-32L high precision horizontal cnc lathe machine turning





CNC  Controller
SIEMENS
 FANUC
KND
GSK

Mitsubish

Syntec



PACKING AND SHIPPING


Packaging Detail:High quality wooden case or According to the customer's requirements.
Delivery Detail:Within 35 working days after receiving your deposit.
According to the customer's requirements.
CK-32L high precision horizontal cnc lathe machine turning

Factory Show

FACTORY SHOW







CK-32L high precision horizontal cnc lathe machine turning



CK-32L high precision horizontal cnc lathe machine turning





FAQ

FAQ






Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in orderto keep your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit
 your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable

Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A: T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
