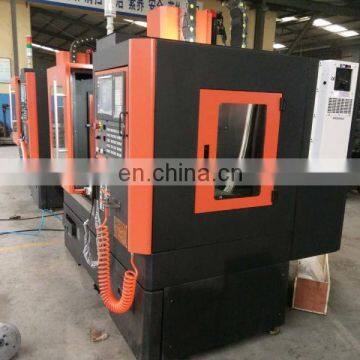

Fanuc Programming Cnc Machinery Photo Machine Center With Tools VMC460L photo-3

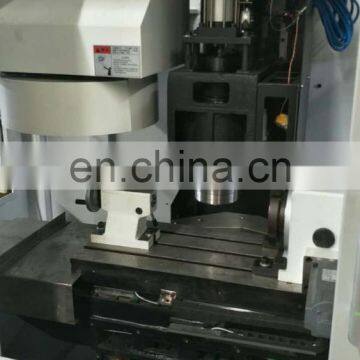

Fanuc Programming Cnc Machinery Photo Machine Center With Tools VMC460L photo-4
Fanuc Programming Cnc Machinery Photo Machine Center With Tools VMC460L photo-5
Fanuc Programming Cnc Machinery Photo Machine Center With Tools VMC460L photo-6
Fanuc Programming Cnc Machinery Photo Machine Center With Tools VMC460L photo-7
US$ 16,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HANKUI
Place of Origin:
Shandong, China
Model Number:
VMC460L
Contact Supplier Request Quote Chat Now
Machining Center
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HANKUI
Place of Origin Shandong, China
Model Number VMC460L
Type Vertical
Certification ISO CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 Months
Weight 1900kg
Dimension(L*W*H) 1800*1750*2000mm
Voltage Customer's Requirement
Condition New
Power(W) 3.7kw
Product Description

Fanuc Programming Cnc Machinery Photo Machine Center with Tools VMC460L

Main Compentents:


1. Imported high speed and high precision spindle.
2. Standard tool magazine.
3. High strength resin sand casting.
4. C3 grade ball screw
5. Imported cylindle from Taiwan
6. NSK bearing imported from Japan
7. Automatic intermittent lubricate system
8. Fully enclosed cover
9. Fanuc, Simens, Mitsubishi, Syntec CNC control system

Application:

1. The VMC is suitable for the mechanical processing and mold making.

2. And it can adapt to the processing requirement from rough machining to finish machining.

3. It can also finish many working procedures like milling,drilling,tapping,boring.etc.

Technical parameter
ITEM
UNIT
VMC350L
VMC460L
VMC600L
Table size
mm
690*230
800×300
800*360
Load capacity
kg
150
200
350
T slot
3-16-63
3-14*80
3-14*115
X-axis travel
mm
350
460
600
Y-axis travel
mm
260
320
400
Z-axis travel
mm
350
460
500
Distance from Spindle center to table
mm
90-440
900 - 550
100-600
Distance from Spindle center to column slide way
mm
294
395
430
Tool shank
BT30
BT30/BT40
BT40
Spindle speed
rpm
10000
10000
10000
Spindle motor power
kw
2.2
3.7
5.5
Max. diameter of tool
mm
Φ30/Φ80
Φ80/Φ120
Φ120X200
Max. length of tool
mm
120
200
350
Max. weight of tool
kg
3
6
8
X/Y -axis rapid moving speed
mm
10000
10000
10000
Z-axis rapid moving speed
mm
10000
10000
10000
Feed rate
mm
1-4000
1-4000
1-10000
Positioning accuracy
mm
0.02
±0.012
0.01
Repeated positioning accuracy
mm
0.01/300
0.007
0.007
Out dimension
mm
1520X1300X1800
1850X1800X1900
2200X2100X2200
Machine weight
kg
1500
2500
3500
Our Company

  Jinan Hankui international trade co., ltd

The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc. With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.

We have passed the ISO9001:2008 international quality management system authentication. “Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you. Welcome to visit our factory.


Our Service
FAQ

 1.What's your delivery time?
It usually takes 35-90 working days to build a machine, depends on the machine size.

All parts should have to be tested qualified before shipment.

2.Payment term?
30% TT deposit, balance should be paid before shipment.


3.MOQ?
1 set.


4.Do you have overseas offices?
We haven't set any offices yet but oversea's service is available.
