VMC650L CNC Vertical Milling Machine Center for Metal Processing

VMC650L CNC Vertical Milling Machine Center for Metal Processing thumbnail-1
VMC650L CNC Vertical Milling Machine Center for Metal Processing thumbnail-2
VMC650L CNC Vertical Milling Machine Center for Metal Processing thumbnail-3
VMC650L CNC Vertical Milling Machine Center for Metal Processing thumbnail-4
VMC650L CNC Vertical Milling Machine Center for Metal Processing thumbnail-5
VMC650L CNC Vertical Milling Machine Center for Metal Processing thumbnail-6
VMC650L CNC Vertical Milling Machine Center for Metal Processing photo-1
VMC650L CNC Vertical Milling Machine Center for Metal Processing photo-2
VMC650L CNC Vertical Milling Machine Center for Metal Processing photo-3
VMC650L CNC Vertical Milling Machine Center for Metal Processing photo-4
VMC650L CNC Vertical Milling Machine Center for Metal Processing photo-5
VMC650L CNC Vertical Milling Machine Center for Metal Processing photo-6
US$ 13,900 - 39,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HANKUI
Place of Origin:
Shandong, China
Model Number:
VMC650L
Contact Supplier Request Quote Chat Now
Machining Center
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port for VMC650L CNC Vertical Milling Machine Center for Metal Processing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HANKUI
Place of Origin Shandong, China
Model Number VMC650L
Type Vertical
Certification ISO9001 CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 Months
Weight 3000KG
Dimension(L*W*H) 2350*2100*2150mm
Voltage 220V/380V
Condition New
Power(W) 5.5kw
Product Description
Technical parameter
ITEM
UNIT
VMC350L
VMC420L
VMC460L
VMC550L
VMC600L
VMC650L
Table size
mm
690*230
780×260
800×300
800×320
800*360
900×360
Load capacity
KG
150
150
200
300
350
400
T slot
3-16-63
16*3
3-14*80
14*3
3-14*115
18*3
X-axis travel
mm
350
420
460
550
600
650
Y-axis travel
mm
260
260
320
340
400
380
Z-axis travel
mm
350
420
460
460
500
460
Distance from Spindle center to table
mm
90-440
90-500
900 - 550
100-560
100-600
100-560
Distance from Spindle center to column slide way
mm
294
315
395
410
430
460
Tool shank
BT30
BT30
BT30/BT40
BT40
BT40
BT40
Spindle speed
RPM
10000
10000
10000
8000
10000
8000
Spindle motor power
KW
2.2/3.7
2.2/3.7
3.7
5.5
5.5
5.5
Max. diameter of tool
mm
30/80
φ50/φ100
80/120
φ80/φ150
120*200
φ80/φ150
Max. length of tool
mm
120
150
200
300
350
300
Max. weight of tool
KG
3
4
6
6
8
6
X/Y -axis rapid moving speed
mm/min
20000
20000
20000
20000
30000
20000
Z-axis rapid moving speed
mm/min
20000
20000
20000
20000
30000
20000
feed rate
mm/min
1-4000
1-4000
1-4000
1-10000
2.5-3000
1-10000
positioning accuracy
mm
0.02
±0.01
±0.012
±0.01
0.015
±0.008
repeated positioning accuracy
mm
0.01/300
±0.005/300
±0.007
±0.004/300
0.0075
±0.003/300
Out dimension
m
1.52*1.3*1.8
1.65*1.6*1.9
1.8*1.75*2
2.1*2.05*2.1
2.2*2.1*2.2
2.35*2.1*2.15
Machine weight
kg
1200
1700
1900
2300
2600
3000

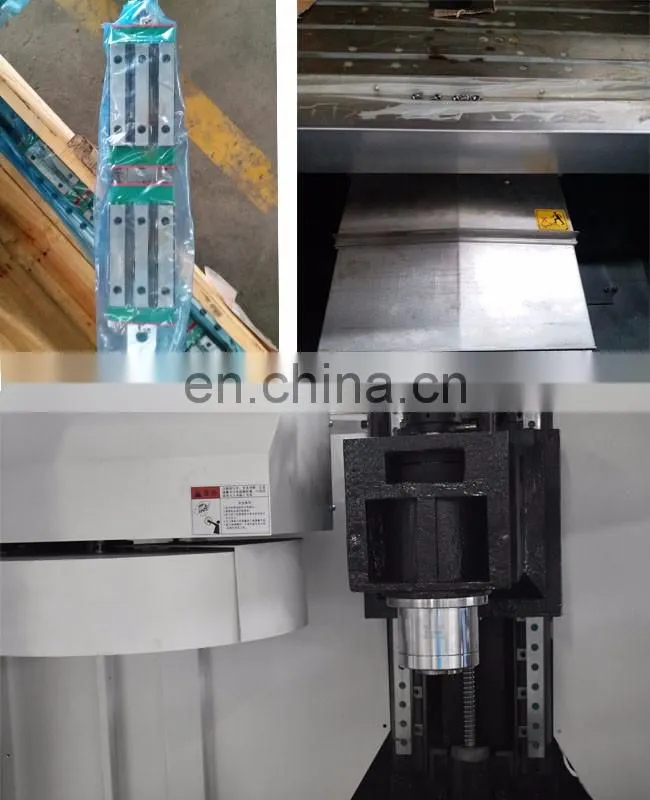

Detailed Images

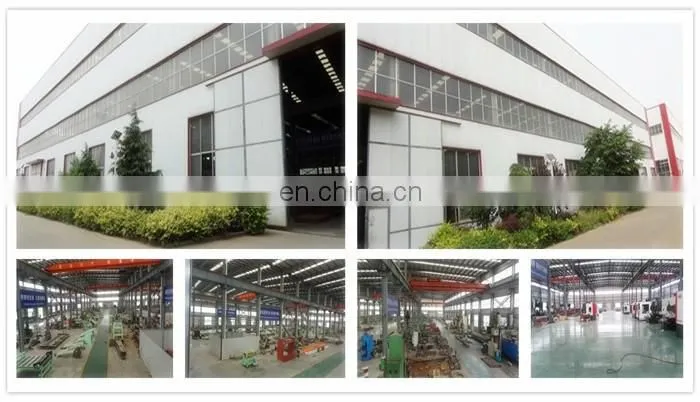

Our Company

 Jinan Hankui international trade co., ltd, which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.

Packing & Delivery
FAQ

Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.

Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine

Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD

Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.

Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
